1976 Yamaha XS360 (XS360C) Front Fork Diagram

← All diagrams

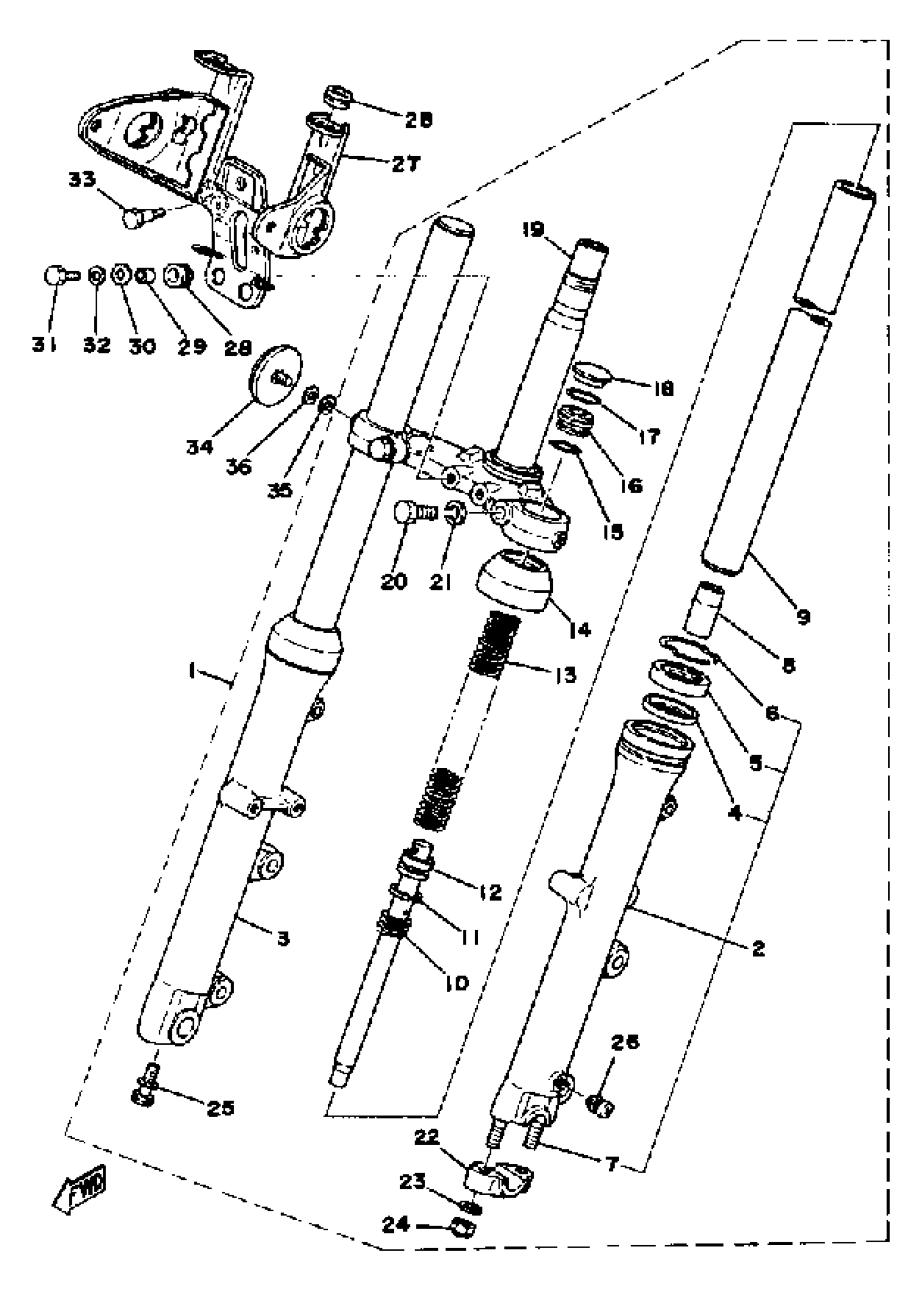

Find the part on the Front Fork diagram for your 1976 Yamaha XS360 (XS360C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha XS360 (XS360C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO LONGER AVAILABLE

1L9-23101-01-00

1
Out of stock

2

. TUBE, OUTER 1

2L0-23126-00-00

1
Out of stock

3

. TUBE, OUTER 2

1L9-23136-01-00

1
Out of stock

4

. WASHER, OIL SEAL

1L9-23146-00-00

1
Out of stock

5

OIL SEAL

1L9-23145-00-00

1

$20.02

In stock

6

. CLIP, OIL SEAL

1L9-23156-00-00

1
Out of stock

7

.. BOLT, STUD

90116-08260-00

1
Out of stock

8

. SPACER, OIL LOCK

1L9-23166-00-00

1
Out of stock

9

INNER TUBE 1

(1L9-23110-01-00)

1
Out of stock

10

SPRING, REBOUND

(1E7-23151-00-00)

1
Out of stock

11

RING, PISTON FRONT FORK

1E7-23157-00-00

1

$4.62

In stock

12

CYLINDER, FRTFRK

(1L9-23170-02-00)

1
Out of stock

13

SPRING, FRONT FORK

(1L9-23141-01-00)

1
Out of stock

14

SEAL, DUST

1L9-23144-00-00

1

$28.02

In stock

15

O-RING

1L9-23114-00-00

1

$7.00

In stock

16

SEAT, SPRING

1L9-23111-00-00

—

$14.05

In stock

17

RING, STOPPER

1L9-23183-00-00

—

$6.43

In stock

18

. CAP, FRONT FORK

1L9-23168-00-00

1
Out of stock

19

UNDER BRACKET

(1L9-23340-00-90)

1
Out of stock

20

BOLT(N02)

97070-10035-00

—

$11.38

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

. HOLDER, AXLE

1E7-23167-00-00

1
Out of stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

25

BOLT

3M7-23181-00-00

—

$7.75

In stock

26

. PLUG, DRAIN

1E7-23119-00-00

1
Out of stock

27

COVER, UPPER 1

1L9-23121-01-33

1
Out of stock

28

GROMMET (431)

90480-14052-00

—

$4.40

In stock

29

COLLAR (3H5)

90387-060A3-00

—

$7.22

In stock

30

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

31

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

BOLT 337847520000

90109-06005-00

—

$6.29

In stock

34

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

35

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

36

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
