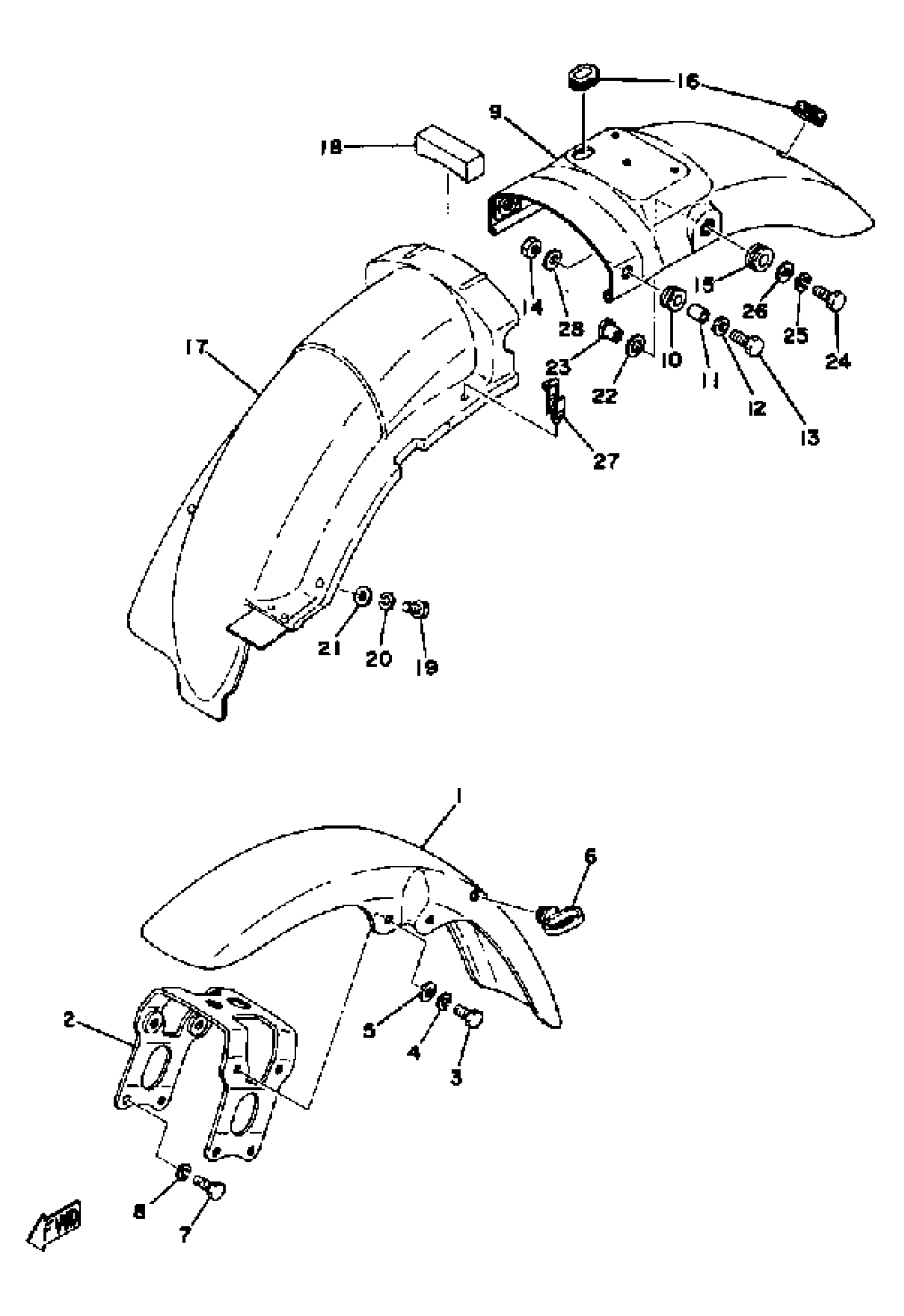

Yamaha XS360C (XS360) 1976 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(1L9-21511-00-G3)

Unavailable

1

FENDER, FRONT

(1L9-21511-00-U4)

Unavailable

2

BRACKET, FENDER

(1L9-21512-02-93)

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

4

WASHER, SPRING

92995-06100-00

$2.95

5

WASHER PLATE 256216150000

90201-06062-00

$6.62

6

GUIDE, WIRE

1A8-21518-00-00

$6.09

7

BOLT(JA9)

90101-08691-00

$4.65

8

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

9

FENDER, REAR

(1L9-21610-00-G3)

Unavailable

9

FENDER, REAR

(1L9-21610-00-U4)

Unavailable

10

GROMMET 839774310000

90480-14023-00

$4.34

11

COLLAR

90387-07020-00

$5.75

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

BOLT, HEXAGON

97017-06030-00

$2.80

14

NUT, HEXAGON

95380-06600-00

$4.11

15

DAMPER, FRONT

168-21638-00-00

Unavailable

16

GROMMET (438)

90480-15061-00

Unavailable

17

GUARD, MUD

(1L9-21620-00-00)

Unavailable

18

SEAL

(1L9-21268-00-00)

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

19

BOLT (661)

97013-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

$2.95

21

WASHER, PLAIN (646)

92990-06600-00

$1.84

22

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

23

NUT, REAR FENDER

248-21635-00-00

Unavailable

24

BOLT(JA9)

90101-08691-00

$4.65

25

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

26

WASHER, PLAIN

92990-08200-00

$2.36

27

CLAMP (1J7)

90464-16025-00

Unavailable

28

WASHER, PLATE

90201-06380-00

Unavailable
