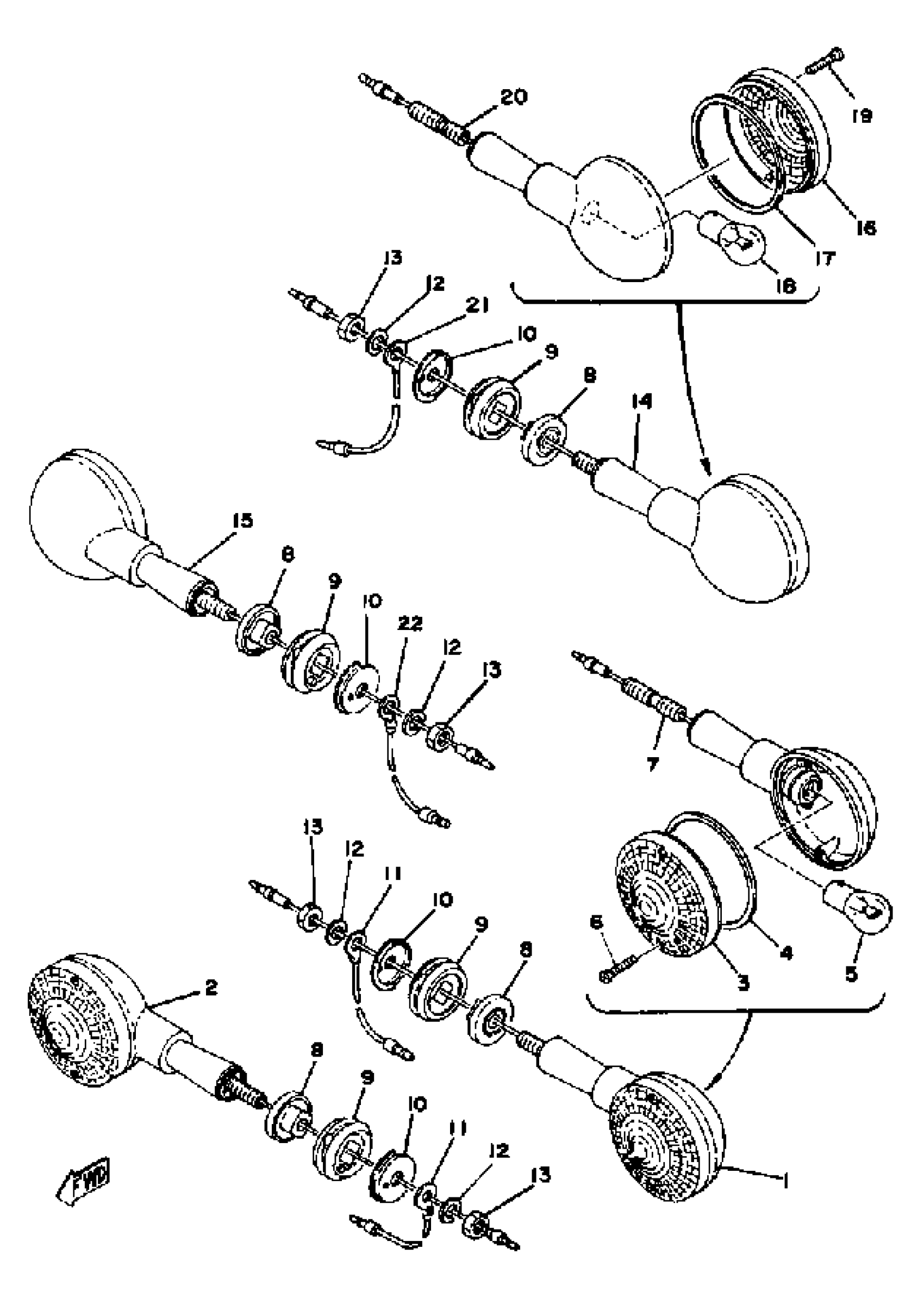

Yamaha XS360C (XS360) 1976 FLASHER LIGHT Diagram

#

Description
Price

1

RIGHT FLASHER LIGHT ASSEMBLY

2L0-83340-E0-93

Unavailable

2

RIGHT FLASHER LIGHT ASSEMBLY

2L0-83340-E0-93

Unavailable

3

LENS, FLASHER

341-83312-70-00

Unavailable

4

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

5

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

. BOLT, STUD

360-83367-09-00

Unavailable

8

COLLAR, FLASHER 1

341-83316-02-00

$6.99

9

DAMPER, FLASHER

1E6-83321-00-00

$7.99

10

WASHER

1E6-83348-00-00

Unavailable

11

WIRE, EARTH LEAD 2

3FU-83364-00-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

NUT(6L2)

95333-08600-00

$2.49

14

R FLSHR LITE ASY

1L9-83330-K0-93

Unavailable

15

R FLSHR LITE ASY

1L9-83330-K0-93

Unavailable

16

LENS, FLASHER

341-83312-70-00

Unavailable

17

. GASKET, FLASHER LENS

341-83313-00-00

Unavailable

18

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

20

. BOLT, STUD

360-83367-09-00

Unavailable

21

WIRE, EARTH LEAD 2

371-83364-00-00

Unavailable

22

WIRE, EARTH LEAD 2

1L9-83364-00-00

Unavailable
