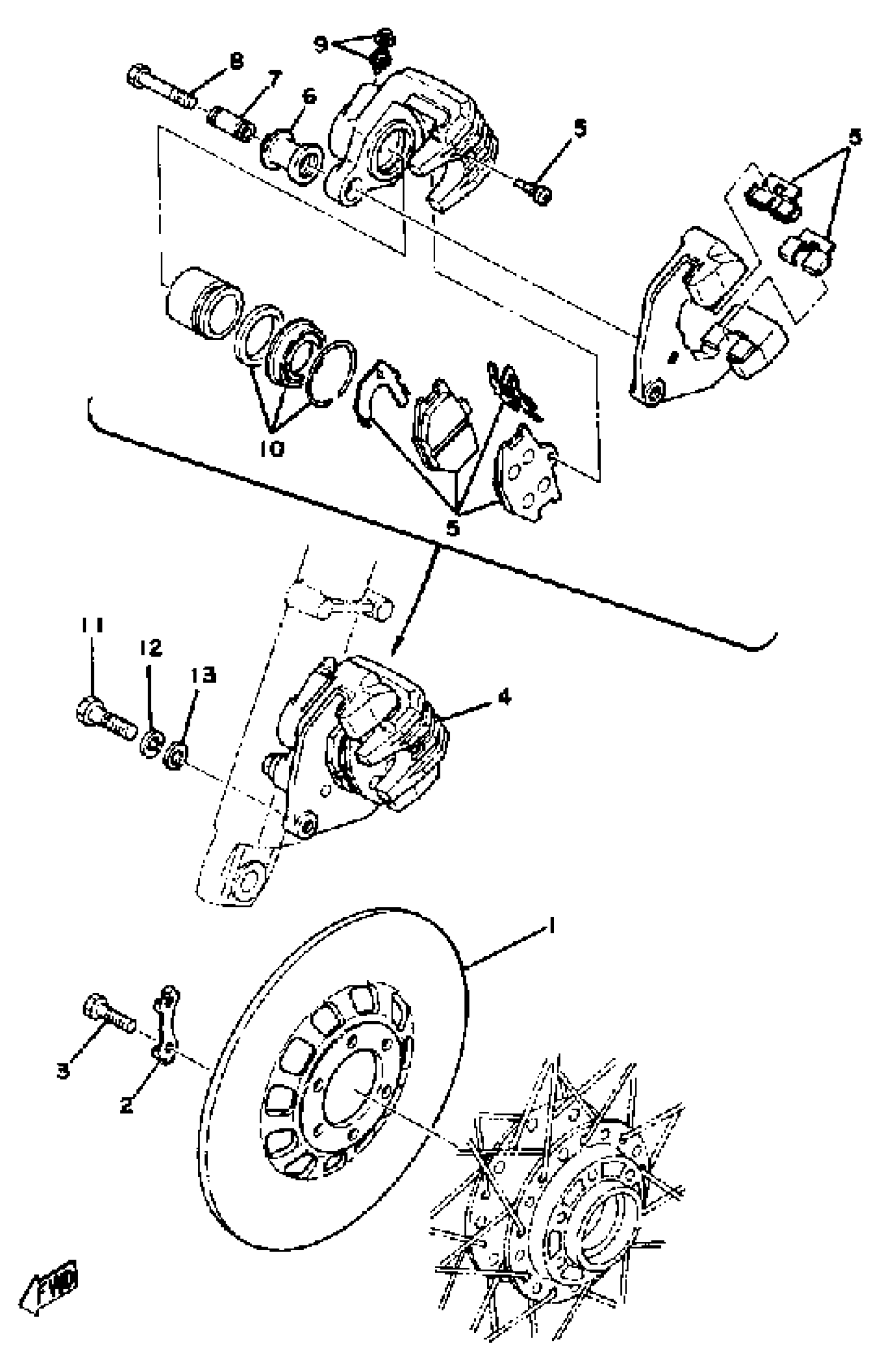

Yamaha XS360C (XS360) 1976 DISC BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

1L9-25831-00-00

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY

(1L9-25810-03-00)

Unavailable

5

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

6

BOOT, CALIPER

1J3-25917-00-00

Unavailable

7

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

8

. BOLT, WASHER BASED

90105-08145-00

Unavailable

9

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

10

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

11

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72
