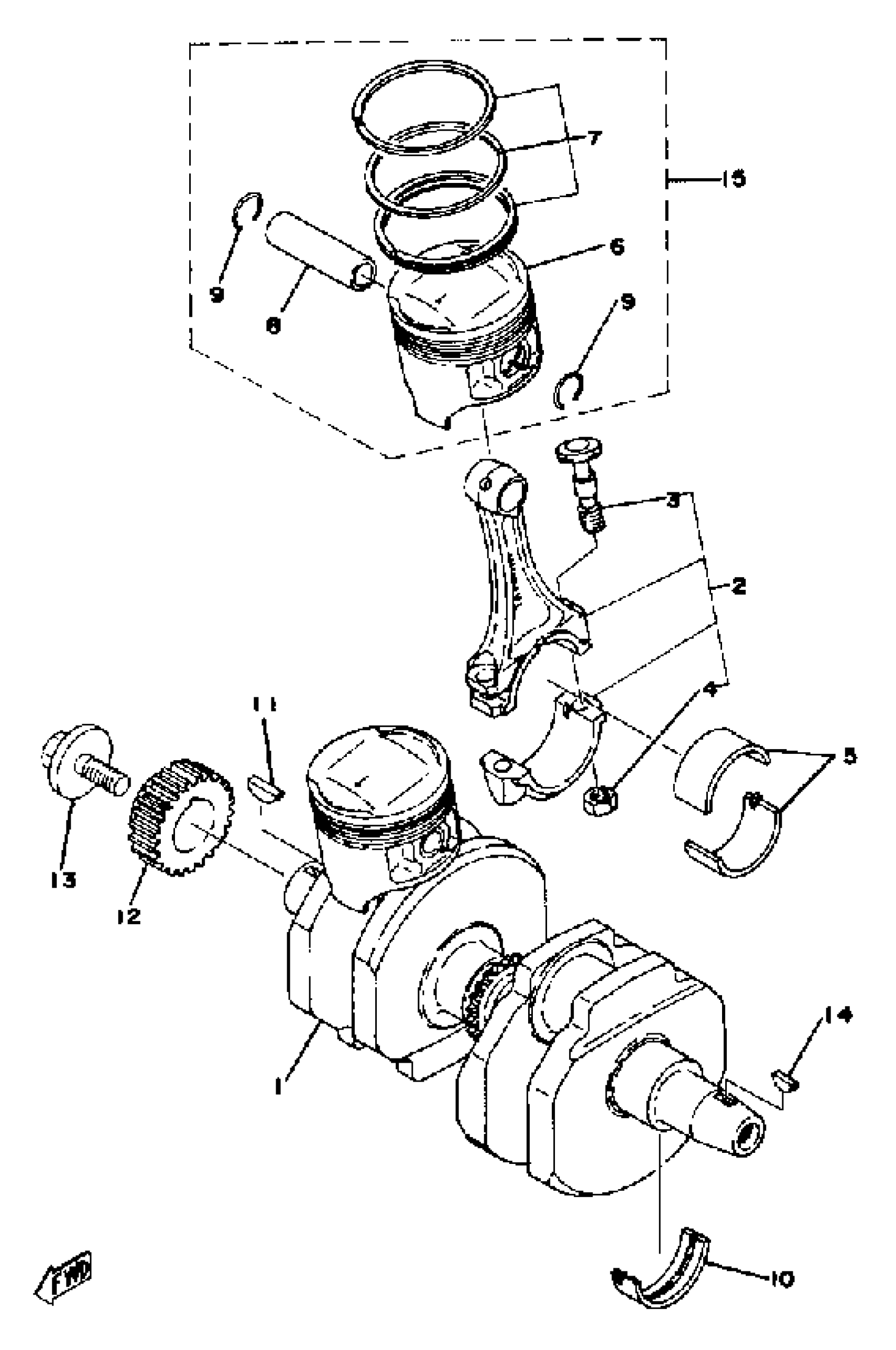

Yamaha XS360C (XS360) 1976 CRANK PISTON Diagram

#

Description
Price

1

CRANKSHAFT

(1L9-11411-00-00)

Unavailable

2

CONNECTING ROD ASSY

1L9-Y1165-00-00

Unavailable

3

. BOLT, CON ROD

371-11654-01-00

Unavailable

4

. NUT, HEXAGON

90170-08129-00

Unavailable

5

PLANE BEARING, CONNECTING ROD

36Y-11656-00-00

Unavailable

5

PLANE BEARING, CONNECTING ROD

36Y-11656-10-00

$31.99

5

PLANE BEARING, CONNECTING ROD

36Y-11656-20-00

$27.99

5

PLANE BEARING, CONNECTING ROD

36Y-11656-30-00

$27.99

6

PISTON STD

(1L9-11631-00-Y0)

Unavailable

6

PISTON 1 O/S 0.25

1L9-11635-00-00

Unavailable

6

PISTON 2 O/S 0.50

(1L9-11636-00-00)

Unavailable

6

PISTON 3 O/S 0.75

(1L9-11637-00-00)

Unavailable

6

PISTON 4 O/S 1.00

(1L9-11638-00-00)

Unavailable

7

PISTON RINGSET STD

1L9-11610-00-00

Unavailable

7

PISTON RINGSET 1ST

1L9-11610-10-00

Unavailable

7

PISTON RINGSET 2ND

(1L9-11610-20-00)

Unavailable

7

PISTON RINGSET 3RD

(1L9-11610-30-00)

Unavailable

7

PISTON RINGSET 4TH

(1L9-11610-40-00)

Unavailable

8

PIN, PISTON

58L-11633-00-00

Unavailable

9

CIRCLIP (1L9)

93450-17044-00

Unavailable

10

PLANE BRNG, CRSF 1

12R-11416-00-00

Unavailable

10

PLANE BRNG, CRSF 1

12R-11416-10-00

Unavailable

10

PLANE BRNG, CRSF 1

12R-11416-20-00

Unavailable

10

PLANE BRNG, CRSF 1

12R-11416-30-00

Unavailable

11

KEY, WOODRUFF

90280-05049-00

Unavailable

12

GEAR, PRI DRIVE

(1L9-16111-00-00)

Unavailable

13

BOLT, WASHER BASED

90105-10085-00

Unavailable

14

KEY,WOODRUFF

90280-04005-00

Unavailable

15

PISTON KIT STD

(1L9-11630-00-Y0)

Unavailable

15

PISTON KIT 1ST

(1L9-11630-10-00)

Unavailable

15

PISTON KIT 2ND

(1L9-11630-20-00)

Unavailable

15

PISTON KIT 3RD

(1L9-11630-30-00)

Unavailable

15

PISTON KIT 4TH

(1L9-11630-40-00)

Unavailable
