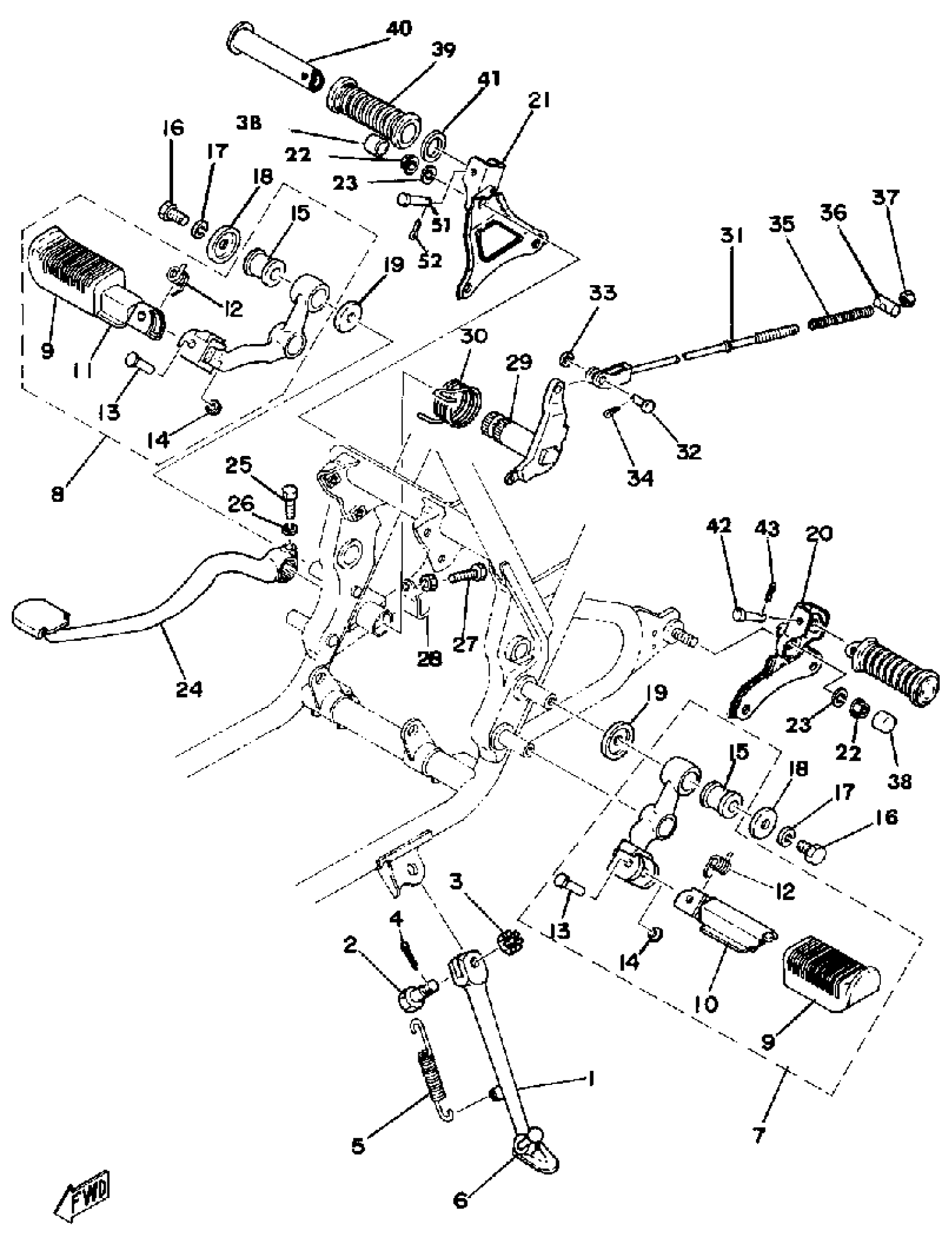

Yamaha XS360_2D (XS360) 1977 STAND FOOTREST BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

1L9-27311-02-33

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT,CASTLE

90171-10049-00

Unavailable

4

PIN, COTTER (648)

91490-20015-00

$2.20

5

SPRING, TENSION (1L9)

90506-26270-00

$15.99

6

STOPPER

278-27314-00-00

Unavailable

7

FRONT FOOTREST ASSEMBLY L

3F9-27410-00-33

Unavailable

8

FRT FOOTREST ASSEMBLY R

(4R4-27420-00-33)

Unavailable

9

COVER, FOOTREST

4L0-27423-00-00

$49.99

10

FOOTREST

3CK-27451-00-00

Unavailable

11

FOOTREST

3N6-27461-00-00

Unavailable

12

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

13

PIN (214-27418-00)

90243-08006-00

$12.49

14

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

15

GROMMET(4CG)

90480-20543-00

$8.49

16

BOLT, HEXAGON

97013-08016-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

WASHER, PLATE

90209-08150-00

Unavailable

19

WASHER, PLATE (1L9)

90209-12157-00

Unavailable

20

BRKT REAR FTREST L

(99999-01090-00)

Unavailable

21

BRACKET

99999-01091-00

Unavailable

22

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

23

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

24

PEDAL,BRAKE

1L9-27211-00-93

Unavailable

25

BOLT, HEXAGON

97017-06030-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

SCREW 341272170000

90153-06008-00

Unavailable

28

NUT, HEXAGON (371 447)

90170-06184-00

Unavailable

29

SHAFT, BRAKE PEDAL

(1L9-27212-00-00)

Unavailable

30

SPRING, TORSION

90508-35315-00

Unavailable

31

ROD, BRAKE

1L9-27231-00-00

Unavailable

32

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

PIN, COTTER

91490-25020-00

Unavailable

35

SPRING, (180-27236-00)

90501-10245-00

Unavailable

36

PIN 1562723700

90249-12008-00

Unavailable

37

NUT (25K)

90179-06411-00

Unavailable

38

CAP, TOOL BOX

262-21399-00-00

Unavailable

39

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

40

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

41

WASHER, PLATE (888)

90201-20279-00

Unavailable

42

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

43

PIN, COTTER

91490-16020-00

Unavailable
