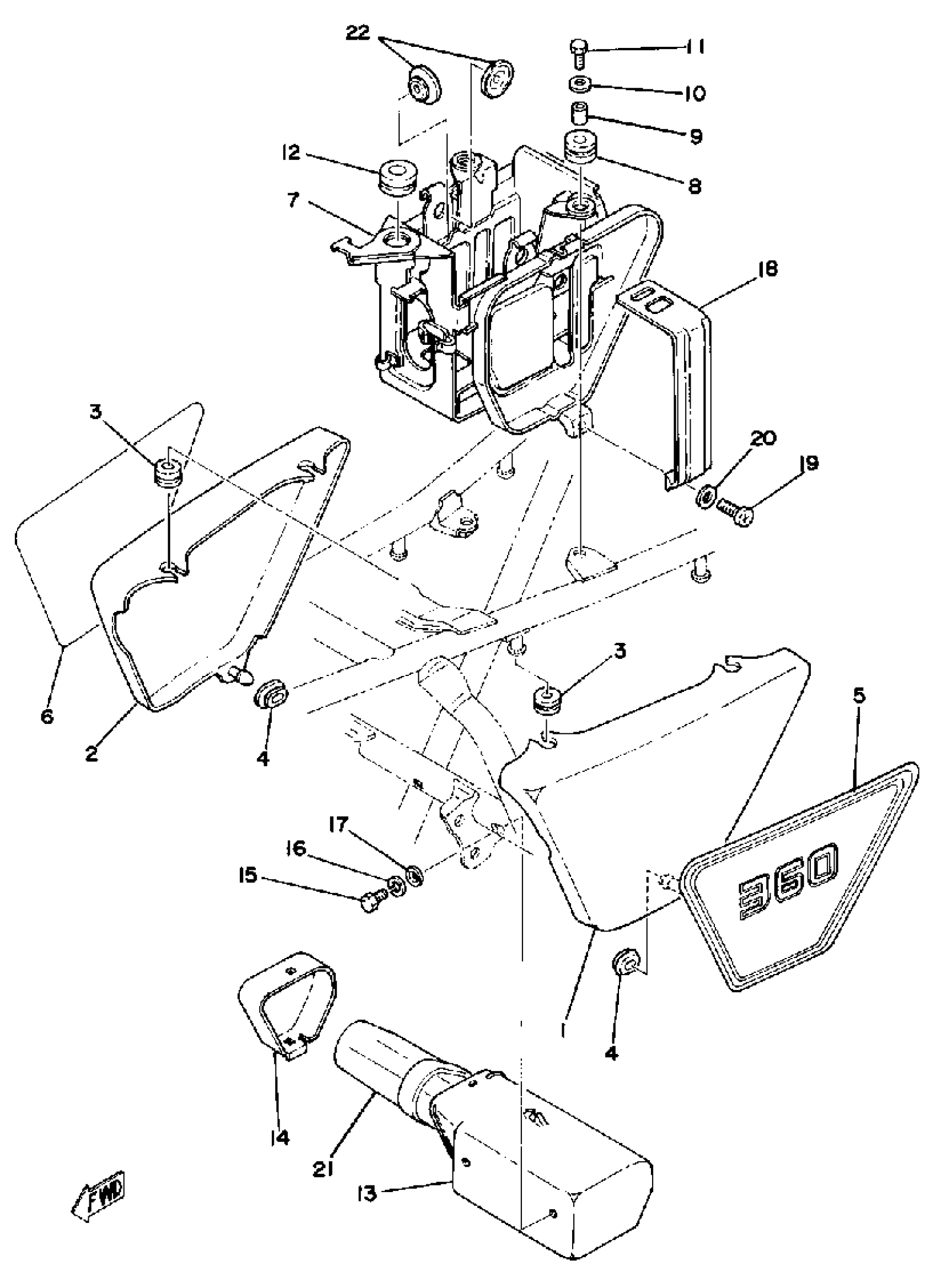

Yamaha XS360_2D (XS360) 1977 SIDE COVER BATTERY BOX Diagram

#

Description
Price

1

COVER, SIDE 1

(1L9-21711-00-63)

Unavailable

2

COVER, SIDE 2

(1L9-21721-00-63)

Unavailable

3

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

4

GROMMET(41Y)

90480-01401-00

$8.49

5

EMBLEM 4

(1L9-21784-10-00)

Unavailable

6

EMBLEM 6

(1L9-21786-10-00)

Unavailable

7

BOX, BATT.

(1T6-21240-00-33)

Unavailable

8

GROMMET 839774310000

90480-14023-00

$7.49

9

COLLAR

90387-07020-00

$8.49

10

WASHER, PLATE

90201-06380-00

$0.60

11

BOLT, HEXAGON

97017-06020-00

$4.06

12

GROMMET

(90480-22196-00)

Unavailable

13

BOX, TOOL

(1L9-21170-00-00)

Unavailable

14

COVER, SIDE 4

1L9-21741-00-00

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

BAND, TANK FITTING

1L9-21776-01-00

Unavailable

19

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

TOOL KIT

1L9-28100-00-00

Unavailable

22

PAD, BATTERY

371-82121-00-00

Unavailable
