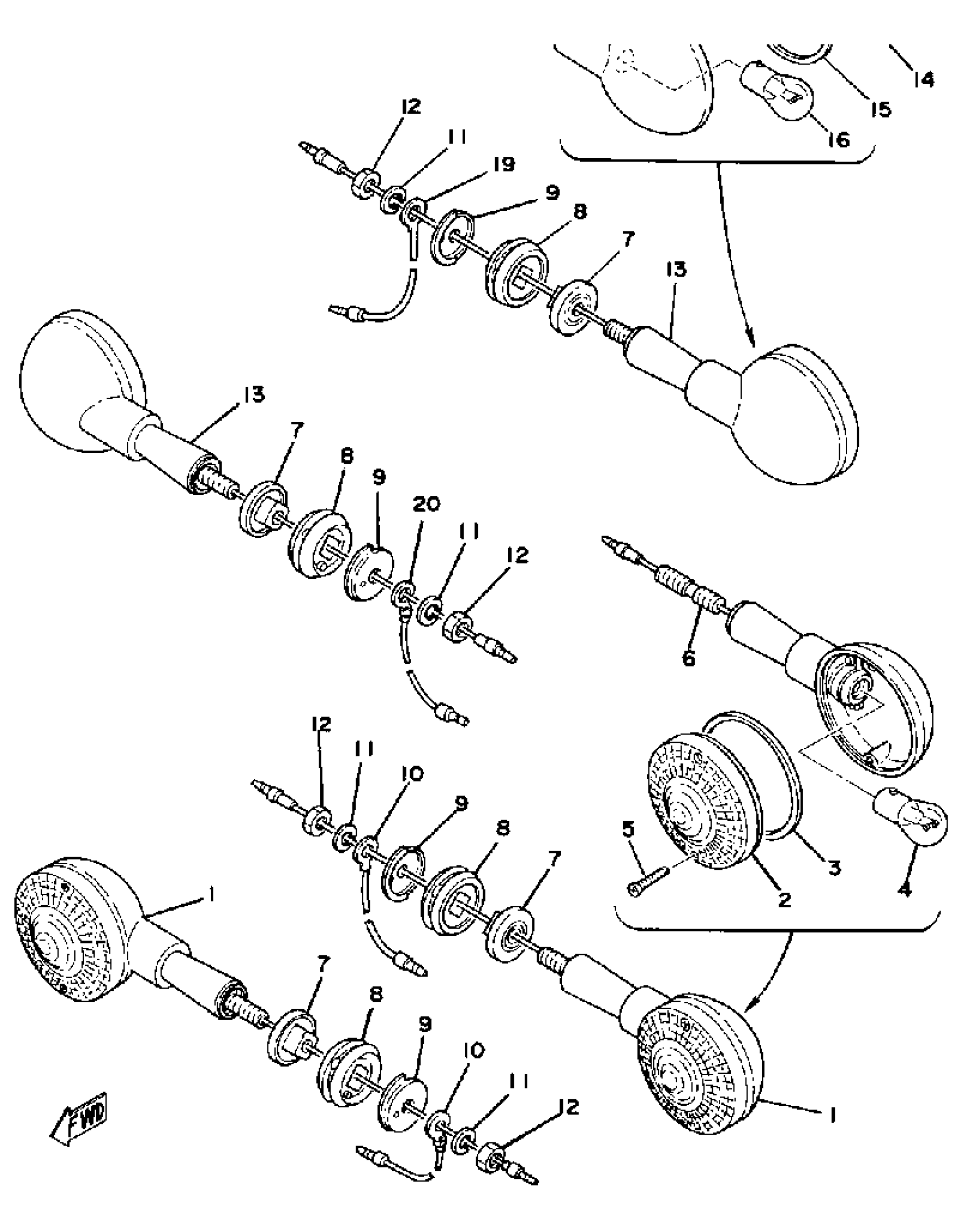

Yamaha XS360_2D (XS360) 1977 FALSHER LAMP Diagram

#

Description
Price

1

RIGHT FLASHER LIGHT ASSEMBLY

2L0-83340-E0-93

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

6

. BOLT, STUD

360-83367-09-00

Unavailable

7

COLLAR, FLASHER 1

341-83316-02-00

$6.99

8

DAMPER, FLASHER

1E6-83321-00-00

$7.99

9

WASHER

1E6-83348-00-00

Unavailable

10

WIRE, EARTH LEAD 2

3FU-83364-00-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

NUT(6L2)

95333-08600-00

$2.49

13

REAR FLASHER LIGHT ASSEMBLY

1L9-83340-E0-93

Unavailable

14

LENS, FLASHER

341-83312-70-00

Unavailable

15

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

18

. BOLT, STUD

360-83367-09-00

Unavailable

19

WIRE, EARTH LEAD 2

(371-83364-00-00)

Unavailable

20

WIRE, EARTH LEAD 2

(1L9-83364-00-00)

Unavailable
