- XS360_2D (XS360) 1977
CARBURETOR

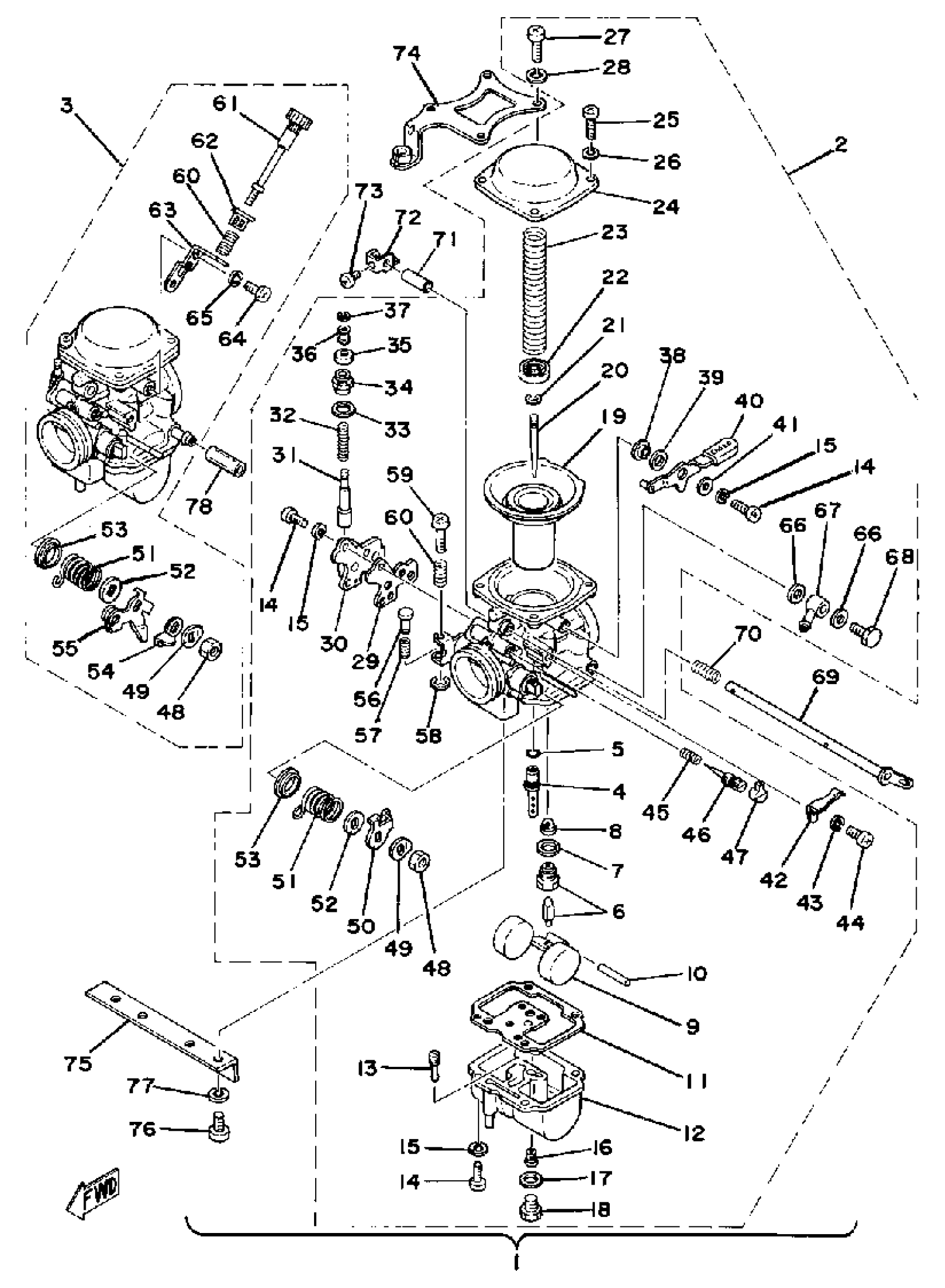

Yamaha XS360_2D (XS360) 1977 CARBURETOR Diagram
#
1
TOOL
UNA-VAILA-BL-EI
Unavailable
2
CARBURETOR ASSEMBLY 1
(1L9-14901-60-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(1L9-14902-60-00)
Unavailable
4
.. NOZZLE, MAIN
2A2-14941-06-00
Unavailable
7
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
9
.. FLOAT
1J7-14985-01-00
Unavailable
12
BODY, FLOAT CHAMBER
(1J7-14981-09-00)
Unavailable
13
.. JET, PILOT #175
584-14142-17-A0
Unavailable
14
SCREW, PAN HEAD
98511-04012-00
Unavailable
16
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
16
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
16
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
17
WASHER
256-14956-01-00
Unavailable
18
.. SCREW, PLUG
256-14991-00-00
Unavailable
19
DIAPHRAGM ASSEMBLY
(1L9-14940-00-00)
Unavailable
20
NEEDLE
(1L9-14116-21-00)
Unavailable
21
CLIP
256-14919-00-00
Unavailable
22
PLATE, NEEDLE FTNG
(1J7-14946-00-00)
Unavailable
23
SPRING, DIAPHRAGM
(1J7-14933-00-00)
Unavailable
24
COVER, DIAPHRAGM
(1J7-14958-00-00)
Unavailable
25
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
26
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
27
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
.. GASKET, STARTER
1J7-14979-00-00
Unavailable
30
.. BODY, STARTER
1J7-14907-01-00
Unavailable
31
PLUNGER, STARTER
(1J7-14171-00-00)
Unavailable
32
. SPRING, PLUNGER
256-14135-00-00
Unavailable
33
WASHER
256-14954-00-00
Unavailable
34
.. CAP, PLUNGER
584-14176-00-00
Unavailable
35
.. COVER, PLUNGER CAP
306-14173-00-00
Unavailable
36
. BUSH
737-14241-00-00
Unavailable
37
. CLIP
737-14137-00-00
Unavailable
38
.. RING
1L9-14918-00-00
Unavailable
39
.. WASHER, STARTER LEVER
584-14955-00-00
Unavailable
40
.. LEVER, STARTER
1J7-14905-00-00
Unavailable
41
WASHER
4CW-14962-00-00
Unavailable
42
.. SPRING
584-14938-00-00
Unavailable
44
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
45
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
46
.. SCREW, PILOT
1J7-14923-00-00
Unavailable
47
.. CAP, PILOT SCREW
584-14969-00-00
Unavailable
48
NUT(3DM)
95304-12600-00
Unavailable
49
.. WASHER
256-14953-00-00
Unavailable
50
LEVER, THROTTLE 2
(1J7-14964-00-00)
Unavailable
51
JET, STARTER
(306-14961-00-00)
Unavailable
52
VALVE, THROTTLE
(306-14970-00-00)
Unavailable
53
WASHER
(1J7-14954-00-00)
Unavailable
54
LEVER, THROTTLE 4
(1L9-14963-00-00)
Unavailable
55
LEVER, THROTTLE
(1J7-14913-00-00)
Unavailable
56
. ROD, PUSH
584-14992-00-00
Unavailable
57
SPRING, THROTTLE STOP
(584-14934-00-00)
Unavailable
58
CLIP
(584-14937-00-00)
Unavailable
59
.. SCREW, THROTTLE STOP
256-14922-01-00
Unavailable
60
.. SPRING, THROTTLE STOP
256-14934-01-00
Unavailable
61
SCREW, THROTTLE
(1J7-14922-00-00)
Unavailable
62
.. BUSH
1J7-14998-00-00
Unavailable
63
BRACKET
(1J7-14995-00-00)
Unavailable
64
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
66
WASHER
256-14956-01-00
Unavailable
67
PIPE, STARTER CON
(1L9-14988-00-00)
Unavailable
68
.. BOLT, BANJO
1L9-14166-00-00
Unavailable
69
SHAFT, STARTER LVR
(1L9-14977-00-00)
Unavailable
70
SPRING
(1J7-14938-00-00)
Unavailable
71
PIPE
(1J7-14996-01-00)
Unavailable
72
LEVER, STARTER
(1J7-14986-00-00)
Unavailable
73
. SCREW, STARTER LEVER 2
584-14991-00-00
Unavailable
74
BRACKET, THROTTLE 1
(1L9-14926-00-00)
Unavailable
75
PLATE
(1L9-14146-00-00)
Unavailable
76
SCREW, PAN
98507-06014-00
Unavailable
77
WASHER, SPRING
92995-06100-00
Unavailable
78
HOSE
(1L9-14987-00-00)
Unavailable
