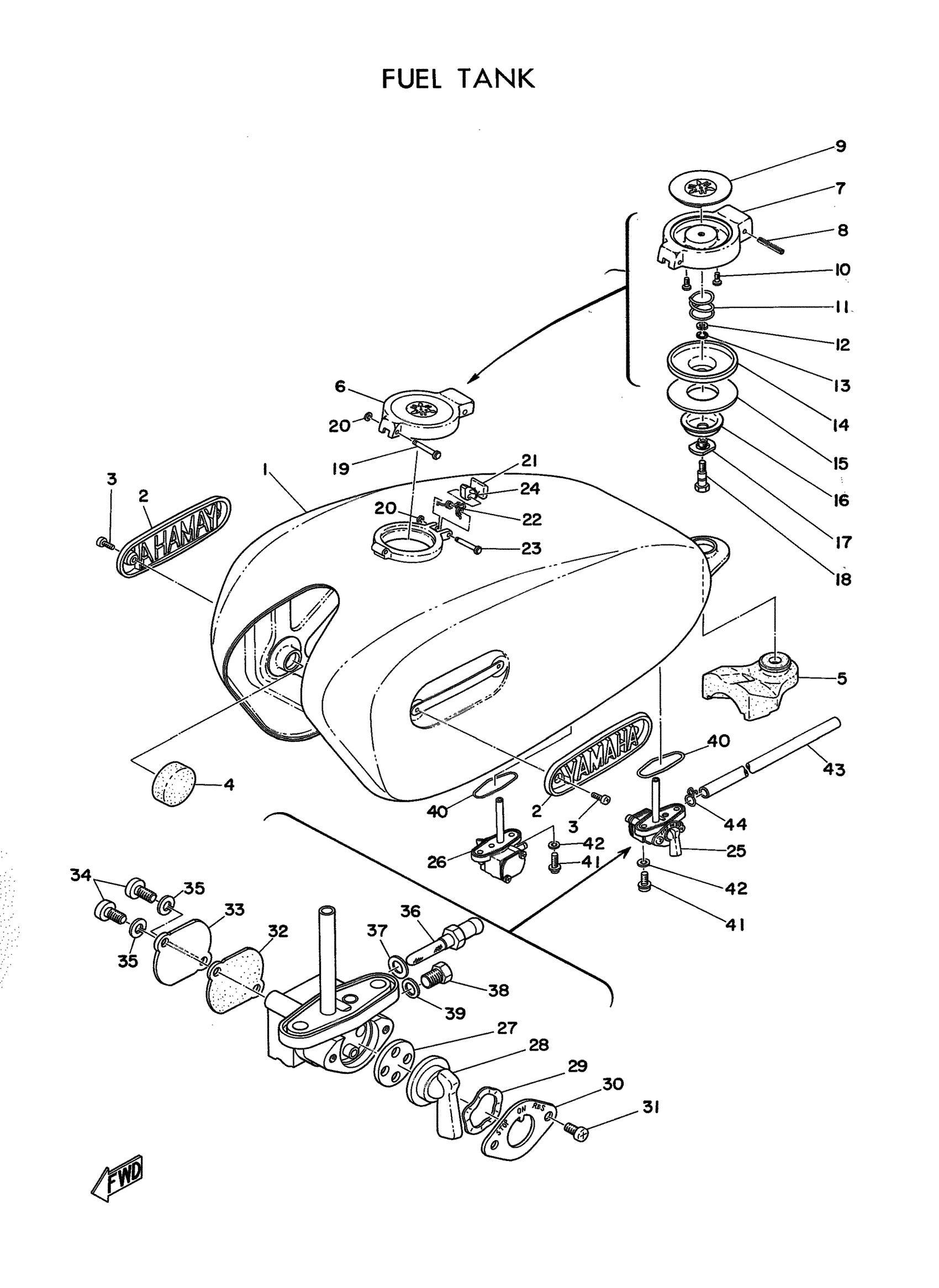

Yamaha XS2 (XS2) 1972 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(256-24110-00-X3)

Unavailable

1

NO LONGER AVAILABLE

366-24110-09-01

Unavailable

1

SPACER, FUEL COCK

(366-24545-01-00)

Unavailable

2

EMBLEM 1

(341-24161-02-00)

Unavailable

2

EMBLEM 2

(341-24162-02-00)

Unavailable

3

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

4

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

5

DAMPER, LOCATING 1

256-24181-01-00

Unavailable

7

BODY, CAP

(256-24611-00-00)

Unavailable

8

PIN, SPRING

91609-25032-00

$2.49

9

PLATE, CAP

(256-24614-00-00)

Unavailable

10

SCREW, FLAT

98707-03008-00

$7.49

11

SPRING, CAP

90501-20130-00

$8.49

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

O-RING (256)

93210-04122-00

$8.49

14

DISC, CAP

(256-24613-00-00)

Unavailable

15

GASKET, CAP

256-24612-00-00

Unavailable

16

GASKET, PLATE 1

256-24615-00-00

Unavailable

17

BOLT (256-24626-00)

90109-10352-00

Unavailable

18

GUIDE, CAP

256-24625-00-00

Unavailable

19

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

19

PIN, SPECIAL SHAPE (308-24623-00)

90249-03087-00

Unavailable

20

CIRCLIP (604)

93430-02001-00

Unavailable

21

HOOK

256-24628-00-00

Unavailable

21

HOOK

341-24628-00-00

Unavailable

22

SPRING, TORSION (256-24637-00)

90508-08223-00

Unavailable

23

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

24

O-RING (26H)

93210-06632-00

Unavailable

25

FUEL COCK ASSEMBLY 1

(366-24500-00-00)

Unavailable

25

FUEL COCK ASSEMBLY 1

447-24500-02-00

Unavailable

26

FUEL COCK ASSEMBLY 2

447-24510-02-00

Unavailable

27

VALVE

137-24523-00-00

Unavailable

28

LEVER, COCK

(256-24524-00-00)

Unavailable

29

WASHER, WAVE

132-24518-00-00

Unavailable

30

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

31

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

32

. WASHER (256-24522-00)

647-14227-00-00

Unavailable

33

CUP, FILTER

(256-24521-00-00)

Unavailable

34

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

35

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

36

. NIPPLE

256-24537-00-00

Unavailable

37

. GASKET

256-24528-00-00

Unavailable

38

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

39

. GASKET, BODY 4

801-24437-00-00

Unavailable

40

GASKET, BODY

256-24512-00-00

Unavailable

41

SCREW 256241430000

90149-06011-00

Unavailable

42

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

43

HOSE (L420)

90445-092K1-00

Unavailable

43

HOSE (L420)

90445-092K1-00

Unavailable

44

CLIP 101235600

90467-08003-00

Unavailable

45

CAP ASSEMBLY

341-24653-00-00

Unavailable

46

GASKET, CAP 2

(308-24642-00-00)

Unavailable

47

GASKET, CAP 1

(308-24641-00-00)

Unavailable

48

. GASKET, CAP

341-24612-01-00

Unavailable

49

CIRCLIP(53L)

99001-06600-00

Unavailable

50

CAP ASSEMBLY

341-24602-01-00

Unavailable

51

SCREW, PAN HEAD

(92503-04020-00)

Unavailable

52

NUT, SPRING

90183-03006-00

Unavailable
