1972 Yamaha XS2 (XS2) Front Wheel Diagram

← All diagrams

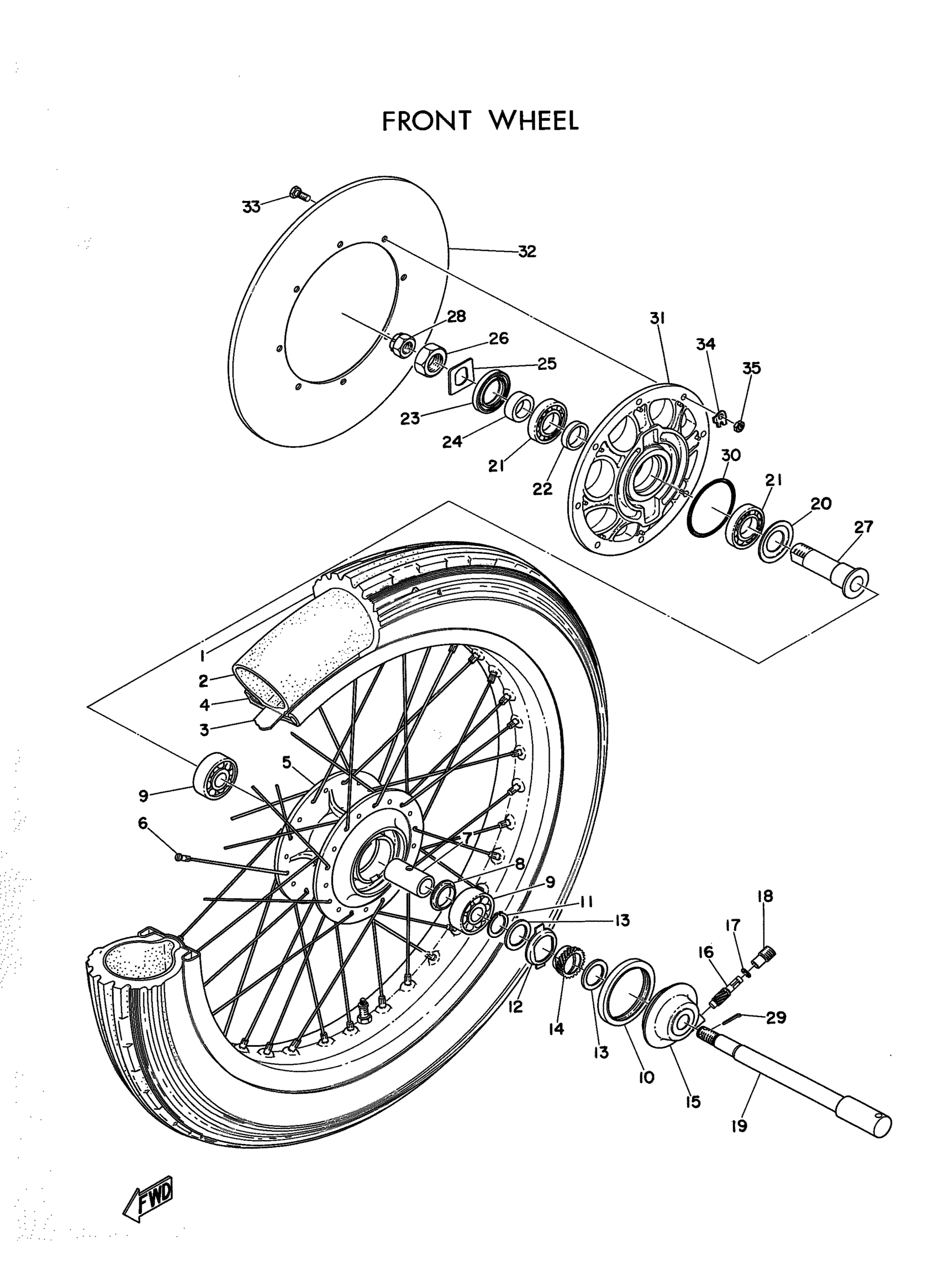

Find the part on the Front Wheel diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

350H19BS S21F 4PLY

(94135-19345-00)

1
Out of stock

2

TUBE(42X)

94210-19222-00

1

$46.48

In stock

3

BAND, RIM

94327-19111-00

1

$12.51

In stock

4

RIM 1.85X19

94418-19059-00

1
Out of stock

5

HUB, FRONT

(306-25111-00-00)

1
Out of stock

5

HUB, FRONT

341-25111-01-00

1
Out of stock

6

SPOKE SET, FRONT

(306-25104-00-00)

1
Out of stock

7

SPACER, BEARING

(306-25117-00-00)

1
Out of stock

7

SPACER 341251170100

90560-17126-00

1
Out of stock

8

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

9

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

10

OIL SEAL, SD-TYPE

(93102-60066-00)

1
Out of stock

10

OIL SEAL (45X56X6)

93105-45017-00

1
Out of stock

11

CIRCLIP(JF7)

99009-25400-00

1

$6.68

In stock

12

CLUTCH, METER (371,447)

341-25149-00-00

1
Out of stock

13

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

14

GEAR, DRIVE

(306-25135-00-00)

1
Out of stock

14

GEAR, DRIVE

341-25135-01-00

1
Out of stock

15

HOUSING, GEAR

(306-25191-00-00)

1
Out of stock

15

HOUSING, GEAR

341-25191-01-00

1
Out of stock

16

GEAR, METER

306-25138-00-00

1
Out of stock

17

SHIM, ROD

102-18416-00-00

1
Out of stock

18

BUSH

306-25136-00-00

1
Out of stock

19

AXLE, WHEEL

(306-25181-00-00)

1
Out of stock

19

AXLE, WHEEL

99999-04072-00

—
Out of stock

20

COVER, DUST

(306-25836-00-00)

1
Out of stock

21

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

21

BRG. (256)

93316-00501-00

—

$29.42

In stock

22

SPACER

(90560-25046-00)

1
Out of stock

23

OIL SEAL (28X47X7-102)

93102-28022-00

—

$12.63

In stock

23

OIL SEAL, DD-TYPE

(93106-30008-00)

1
Out of stock

24

COLLAR

(90387-22440-00)

1
Out of stock

25

WASHER, SPEC''L SHAP

(90209-22113-00)

1
Out of stock

26

NUT, HEXAGON

90170-22097-00

1
Out of stock

27

AXLE, DISC

(306-25835-00-00)

1
Out of stock

28

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

29

PIN, COTTER

91490-30030-00

—

$7.15

In stock

30

O-RING (3.0-56.2)

93210-56052-00

1
Out of stock

31

BRACKET, DISC

(306-25832-00-00)

1
Out of stock

31

BRACKET, DISC

(341-25832-01-00)

1
Out of stock

32

DISC, BRAKE

(306-25831-00-00)

1
Out of stock

33

BOLT 306258330000

90109-06018-00

—

$7.92

In stock

34

WASHER LOCK 306258340000

90215-06106-00

—

$3.35

In stock

35

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

36

DAMPER, DISC BRKT

(306-25837-01-00)

1
Out of stock

37

RETAINER, CLUTCH (371,447)

341-25846-00-00

—
Out of stock

38

RING, STOP

341-25137-00-00

1
Out of stock

39

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

40

COLLAR

90387-17433-00

1
Out of stock

41

COVER, HUB DUST

341-25118-00-00

1
Out of stock

42

WASHER, LOCK (447)

341-25412-00-00

—

$12.11

In stock

43

BOLT (341-25411-00)

90109-08367-00

1
Out of stock

44

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock

45

COVER, HOUSING

(341-25847-01-00)

1
Out of stock

46

WASHER, LOCK

(341-25844-00-00)

1
Out of stock

47

BOLT (341-25411-00)

90109-08367-00

1
Out of stock
