1972 Yamaha XS2 (XS2) Front Fork Diagram

← All diagrams

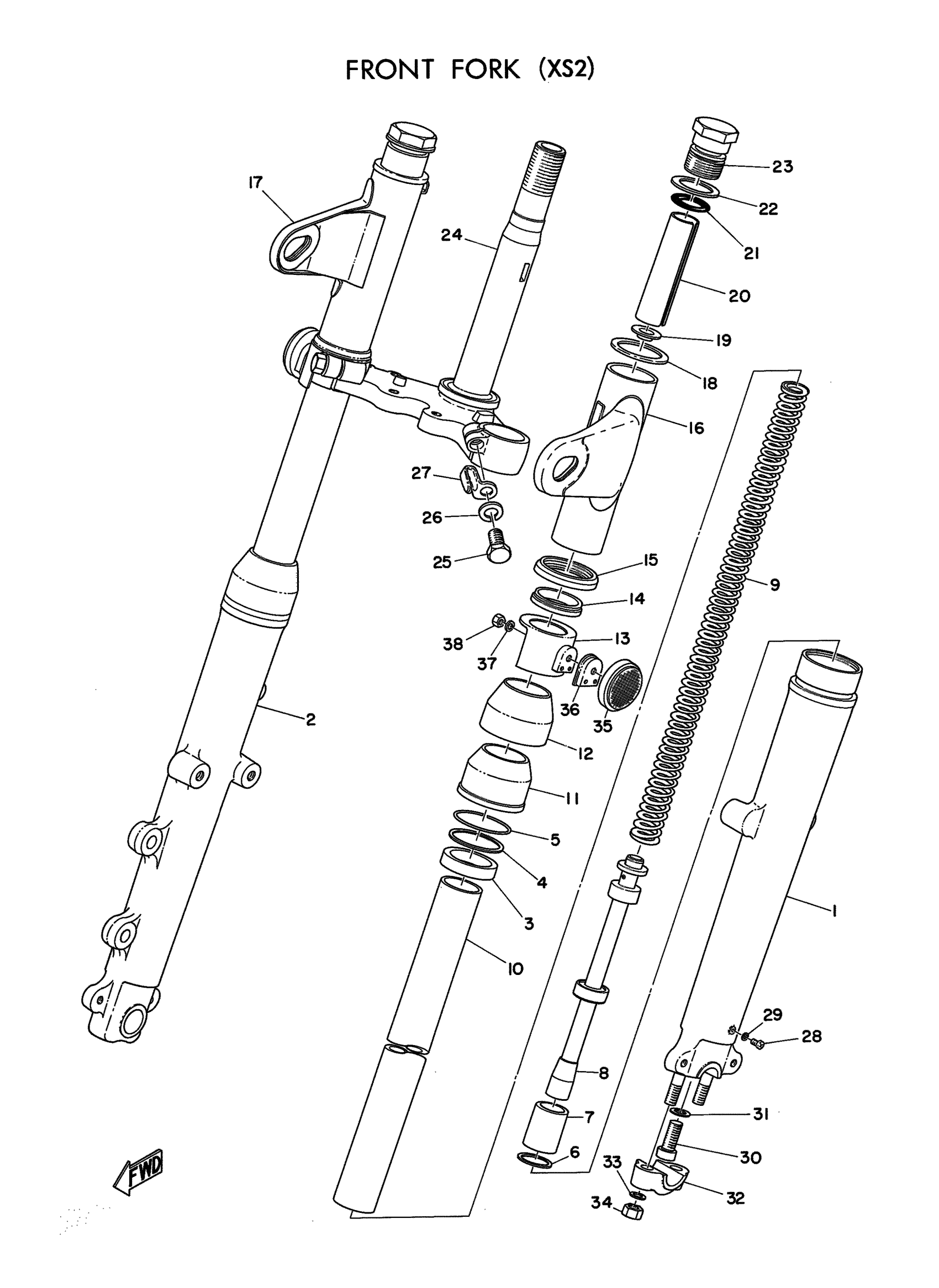

Find the part on the Front Fork diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(306-23100-60-63)

1
Out of stock

1

TUBE, INNER 1

(306-23124-60-00)

1
Out of stock

1

. BOLT, CAP

366-23111-60-00

1
Out of stock

1

. BOLT, CAP

366-23111-60-00

1
Out of stock

2

TUBE, INNER 1

(306-23124-60-00)

1
Out of stock

2

. BOLT, CAP

366-23111-60-00

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

FRONT FORK ASSEMBLY

(278-23100-50-34)

1
Out of stock

8

TUBE, INNER 1

(306-23124-60-00)

1
Out of stock

9

SPRING, FRONT FORK

(256-23141-62-00)

1
Out of stock

10

CYLINDER KIT, MASTER

1A0-W0041-00-00

—
Out of stock

11

SEAL,DUST

278-23144-50-00

—

$31.64

In stock

12

. COVER, DUST SEAL

278-23148-50-00

1
Out of stock

13

COVER, OUTER 1

(275-23122-60-00)

1
Out of stock

14

. GASKET

256-23163-60-00

1
Out of stock

15

BOLT, CAP

(256-23111-60-00)

1
Out of stock

16

COVER, UPPER 2

(256-23131-61-63)

1
Out of stock

16

COVER, UPPER 1

(366-23121-60-F5)

1
Out of stock

16

CVR UPPR L & R CHR

(99999-00983-00)

1
Out of stock

16

CVR UPPR L & R CHR

(99999-00983-00)

1
Out of stock

17

COVER, UPPER 2

(256-23131-61-63)

1
Out of stock

17

COVER, UPPER 2

(366-23131-60-F5)

1
Out of stock

18

. GUIDE, COVER UPPER

168-23115-00-00

1
Out of stock

19

. SEAT, SPRING UPPER

256-23142-60-00

1
Out of stock

20

SPACER

(306-23118-60-00)

1
Out of stock

20

SPACER

(366-23118-60-00)

1
Out of stock

21

. GASKET

214-23114-00-00

1
Out of stock

22

WASHER, CAP

(256-23112-61-00)

1
Out of stock

23

BOLT, CAP

(256-23111-60-00)

1
Out of stock

24

UNDER BRACKET

(306-23340-60-33)

1
Out of stock

24

UNDER BRACKET

(366-23340-60-33)

1
Out of stock

25

. BOLT 1

306-23346-60-00

1
Out of stock

26

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

27

HOLDER, CABLE 1

(306-23318-60-00)

1
Out of stock

28

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

29

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

31

GASKET

509-23158-L0-00

—

$14.34

In stock

32

HOLDER, AXLE

(306-23167-60-00)

1
Out of stock

32

HOLDER,AXLE

341-23167-50-00

—
Out of stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

34

NUT(6L2)

95333-08600-00

—

$3.20

In stock

35

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

36

COVER, RFLCTR STAY

(256-23162-60-00)

1
Out of stock

37

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

38

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

39

BOLT, STUD (278)

90116-08261-00

—
Out of stock
