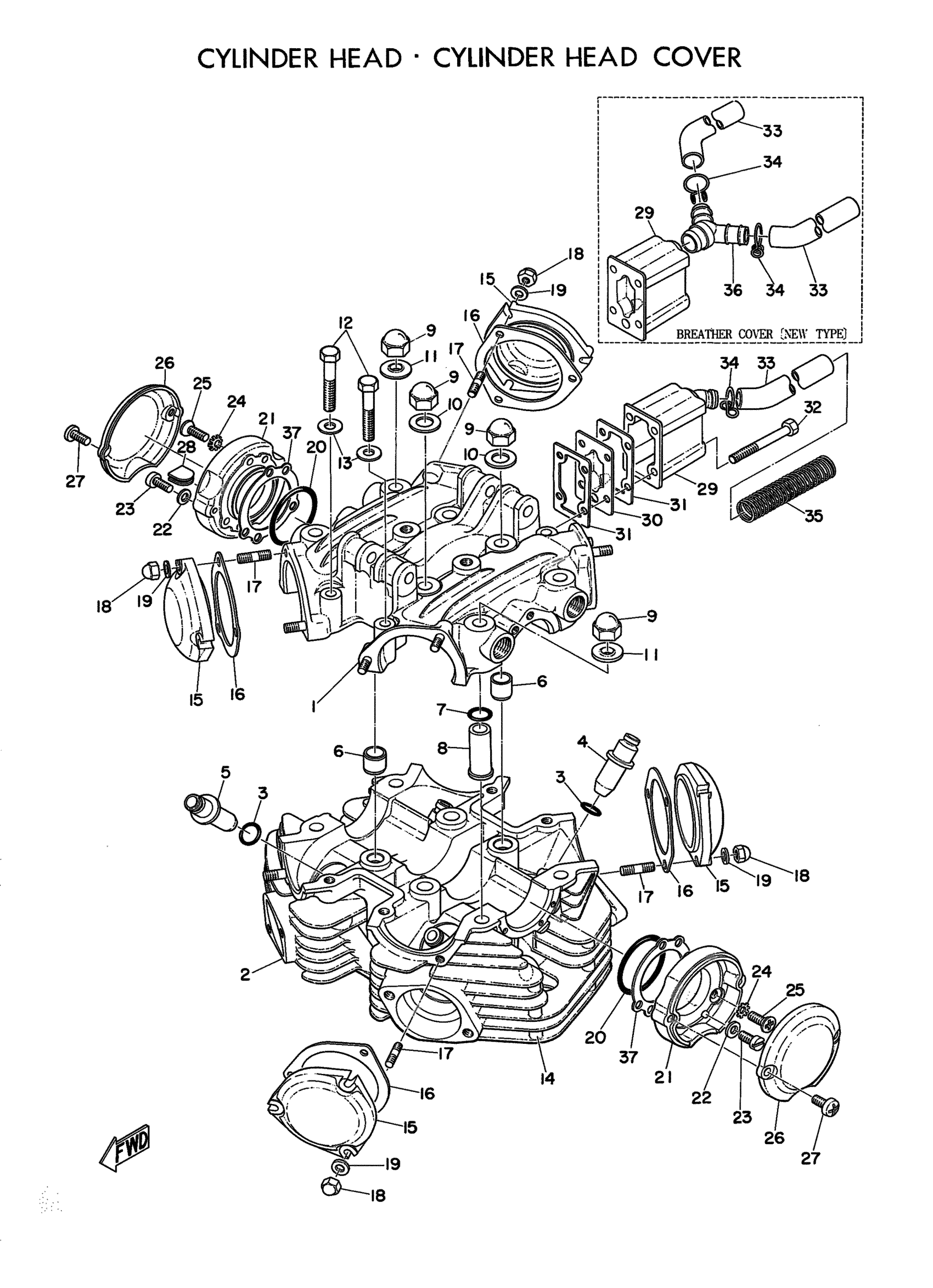

Yamaha XS2 (XS2) 1972 CYLINDER HEAD - CYLINDER HEAD COVER Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(5V4-11101-00-00)

Unavailable

3

O-RING (256)

93210-15151-00

Unavailable

4

.. GDE, INTK VLV 1 O/S

341-11133-11-00

Unavailable

5

. GDE, EXST VLV 1 O/S

341-11134-11-00

Unavailable

6

PIN, DOWEL

99530-14016-00

$3.80

7

O-RING (256)

93210-12152-00

$7.49

8

SLEEVE, CYLINDER HD COVR

256-11199-00-00

Unavailable

9

NUT, CROWN(2GG)

90176-10075-00

$8.49

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

WASHER SEAL 256111730200

90210-10004-00

$4.77

12

BOLT (663)

97013-08060-00

$4.41

12

BOLT, HEXAGON

97013-08050-00

Unavailable

13

WASHER, PLAIN

92990-08200-00

Unavailable

15

COVER, CYLINDER.HEAD 2

447-11186-00-00

Unavailable

16

GASKET, CLINDER HEAD SIDE 1

256-11196-09-00

$27.99

16

O-RING (4M4)

93210-62451-00

Unavailable

17

BOLT STUD 306111790000

90116-06016-00

Unavailable

17

BOLT, STUD

90116-06017-00

Unavailable

18

NUT (J17)

95380-06800-00

Unavailable

18

NUT (J17)

95380-06800-00

Unavailable

19

WASHER, PLATE (371)

90201-06431-00

Unavailable

19

WASHER, PLATE (371)

90201-06431-00

Unavailable

20

O-RING (256)

93210-45150-00

Unavailable

21

COVER, BREAKER 1

256-11157-03-00

Unavailable

22

WASHER, PLATE (371)

90201-06431-00

Unavailable

23

SCREW, PAN

98507-06014-00

Unavailable

24

WASHER

92990-06500-00

Unavailable

25

SCREW, FLAT

98707-06014-00

Unavailable

26

COVER, BREAKER 2

256-11158-01-00

Unavailable

27

SCREW, BIND (J17)

98980-06020-00

Unavailable

28

PLUG, SPECL SHAPE

90338-12044-00

Unavailable

29

BREATHER COVER ASSEMBLY

584-11108-00-00

Unavailable

29

PLUG, SPECL SHAPE

90338-12044-00

Unavailable

30

PLATE, BREATHER

(256-11165-00-00)

Unavailable

31

GASKET,BRTHR COVER

256-11169-11-00

Unavailable

31

GASKET,BRTHR COVER

256-11169-11-00

Unavailable

32

BOLT,SOCKET

91317-06060-00

Unavailable

32

BOLT, HEXAGON

97013-06060-00

Unavailable

33

HOSE 000

(90445-16161-00)

Unavailable

33

HOSE 000

(90445-16161-00)

Unavailable

34

CLIP (371)

90467-14015-00

Unavailable

34

CLIP (371)

90467-14015-00

Unavailable

35

SPRING, COMPRESSION

90501-101J3-00

Unavailable

36

PIPE, BREATHER 2 001

(256-11167-02-00)

Unavailable

37

GASKET, BREAKER COVER

256-11146-11-00

Unavailable

37

SHAFT, ROCKER

256-12156-01-00

Unavailable

37

GASKET

306-11198-10-00

Unavailable

37

. CVR, CYLINDER HD SIDE 1

447-11185-00-00

Unavailable

37

BOLT, STUD

90116-08150-00

Unavailable

37

O-RING (4M4)

93210-62451-00

Unavailable

37

COVER, CYLINDER HEAD 3

(99999-00856-00)

Unavailable
