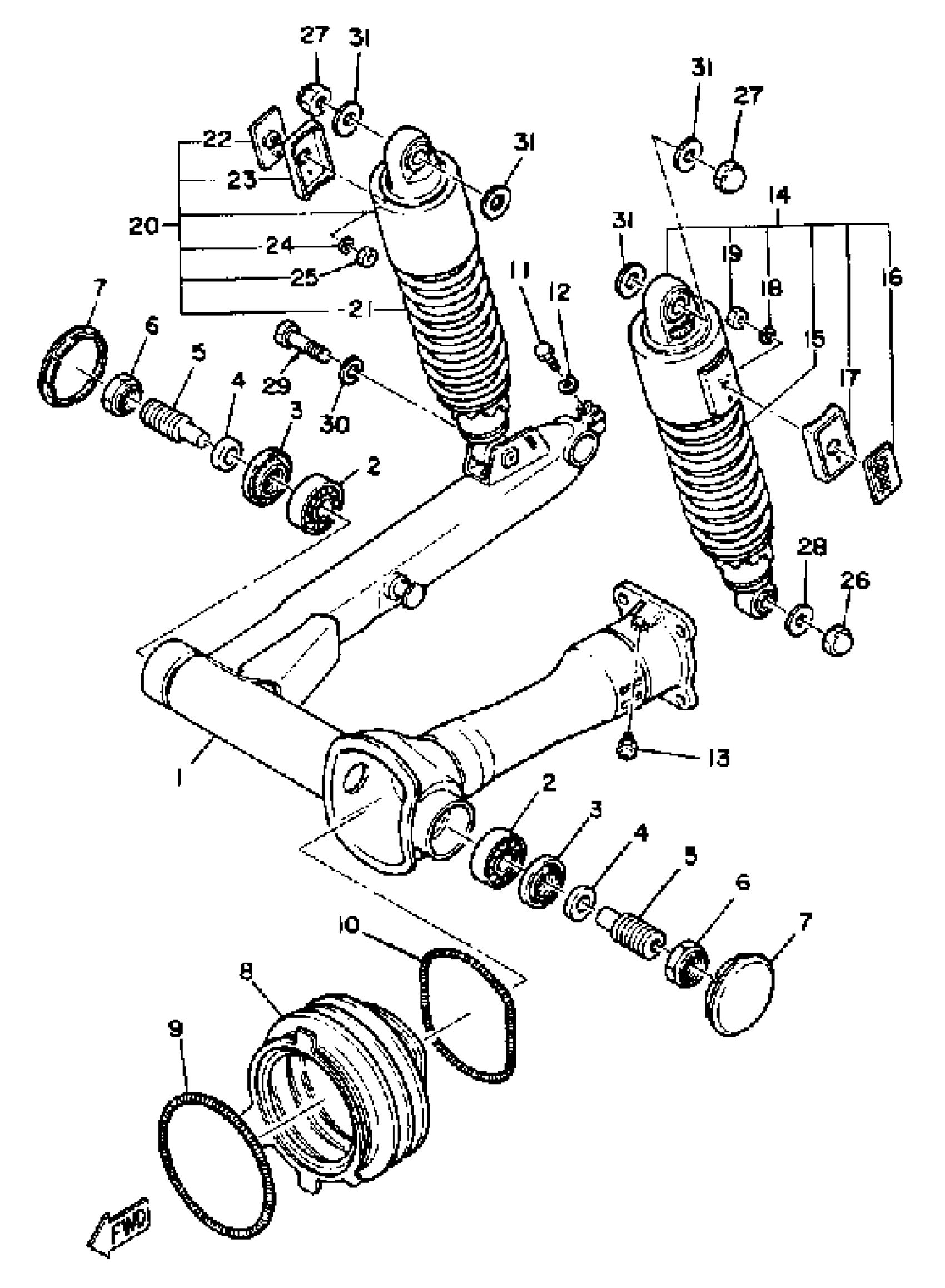

Yamaha XS1100SH (XS1100S) 1981 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM

(3H3-22110-00-98)

Unavailable

2

BRG,CYL-CAL ROLLER 74G KY

93332-00010-00

$47.99

3

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

4

COLLAR

90387-17011-00

$15.99

5

SHAFT, PIVOT

15B-22141-00-00

Unavailable

6

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

7

COVER

2H7-2219X-00-00

$35.99

8

BOOT, RUBBER

2H7-22189-00-00

Unavailable

9

SPRING, TENSION (1J7)

90506-07136-00

$12.49

10

SPRING, TENSION (1J7)

90506-07135-00

$15.99

11

BOLT

97017-08035-00

Unavailable

12

WASHER(JN5)

92907-08100-00

$8.49

13

NIPPLE, GREASE

93700-06M03-00

Unavailable

14

SHK/ABS ASSEMBLY, REAR

(4R0-22210-00-00)

Unavailable

15

SPRING

(3J6-22212-00-00)

Unavailable

15

SPRING

(3J6-22212-A0-00)

Unavailable

16

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

17

. BASE, REFLECTOR REAR

3G1-85137-00-00

Unavailable

18

. WASHER, PLAIN

92990-05200-00

Unavailable

19

NUT, U

95617-05100-00

Unavailable

20

SHK/ABS ASSEMBLY, REAR

(4R0-22210-10-00)

Unavailable

21

SPRING

(3J6-22212-00-00)

Unavailable

22

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

23

. BASE, REFLECTOR REAR

3G1-85137-00-00

Unavailable

24

. WASHER, PLAIN

92990-05200-00

Unavailable

25

NUT, U

95617-05100-00

Unavailable

26

NUT, CROWN(3BM)

90176-10073-00

Unavailable

27

NUT, CAP (371)

90176-10009-00

Unavailable

28

WASHER, PLATE (2J2)

90201-10696-00

Unavailable

29

BOLT,DOME HEAD

90106-10052-00

Unavailable

30

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

31

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable
