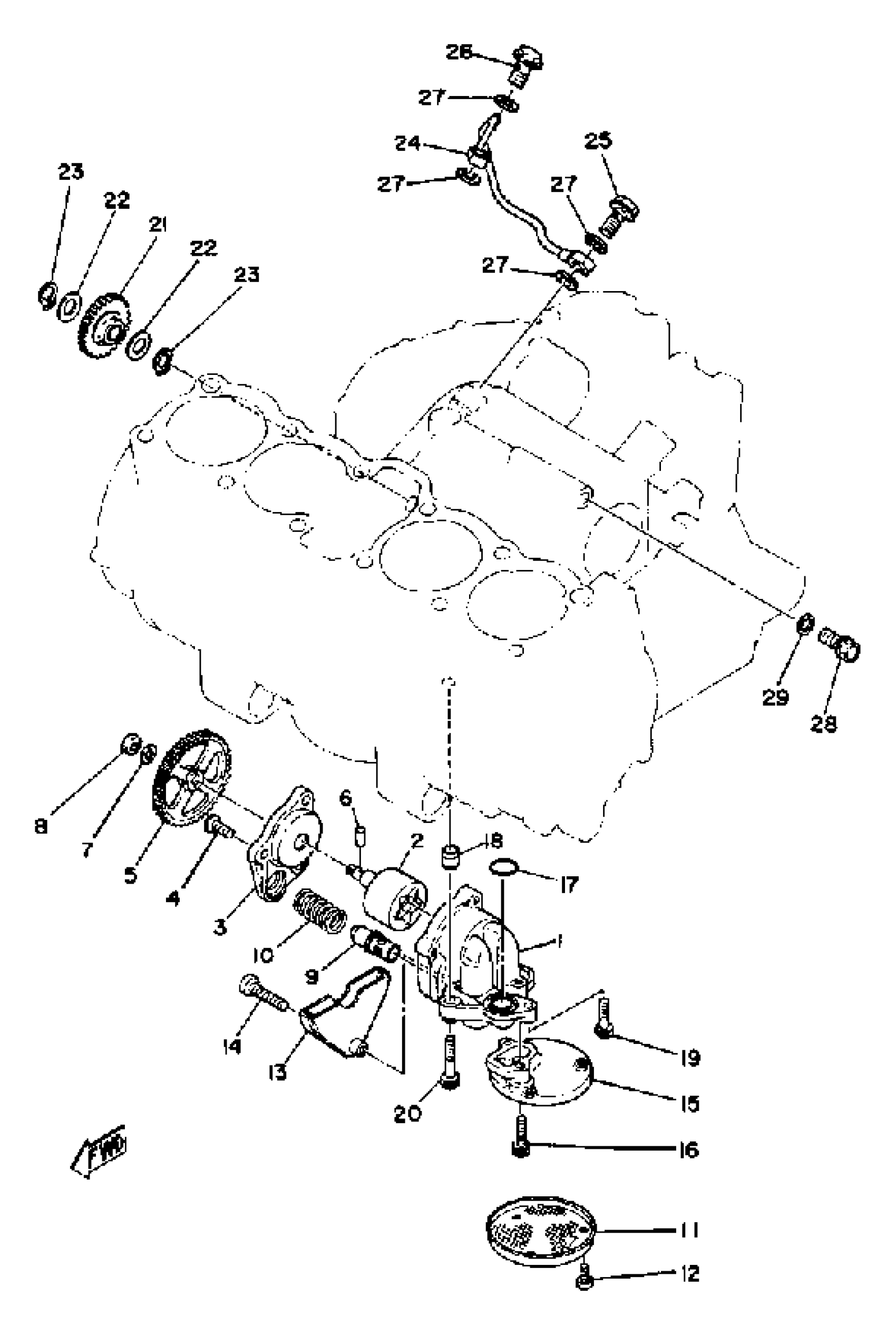

Yamaha XS1100SH (XS1100S) 1981 OIL PUMP Diagram

#

Description

Price

1

HOUSING, ROTOR

2H7-13336-00-00

Unavailable

2

PUMP SHAFT ASSEMBLY

2H7-13330-00-00

Unavailable

3

COVER, PUMP

(2H7-13316-00-00)

Unavailable

4

SCREW, FLATHEAD (2H7)

90149-06126-00

$9.49

5

GEAR, PUMP DRIVEN

2H7-13325-00-00

Unavailable

6

PIN,DOWEL (603)

93603-12007-00

$2.55

7

WASHER, SPRING

92995-06100-00

Unavailable

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

. PLUNGER, RELIEF

2H7-13483-00-00

Unavailable

10

. SPRING, COMPRESSION

90501-18499-00

Unavailable

11

STRAINER, OIL

2F3-13411-00-00

Unavailable

12

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

13

COVER, PUMP GEAR

(2H7-13327-00-00)

Unavailable

14

BOLT,SOCKET

91317-06035-00

Unavailable

15

HOUSING, STRAINER

(2H7-13412-00-00)

Unavailable

16

BOLT,SOCKET

91317-06025-00

Unavailable

17

O-RING (1J7)

93210-18319-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

20

BOLT, SOCKET

91314-06035-00

Unavailable

21

GEAR, OIL PUMP IDLE

2H7-13341-00-00

Unavailable

22

WASHER, PLATE (525)

90201-12541-00

Unavailable

23

CIRCLIP(10Y)

99009-12400-00

Unavailable

24

PIPE, DELIVERY 1

2H7-13161-00-00

Unavailable

25

BOLT, UNION (371-13166-00)

90401-10013-00

Unavailable

26

BOLT, UNION (16G)

90401-10084-00

Unavailable

27

GASKET (5R6)

90430-10171-00

Unavailable

28

BOLT, UNION

90401-10051-00

Unavailable

29

GASKET (5R6)

90430-10171-00

Unavailable
