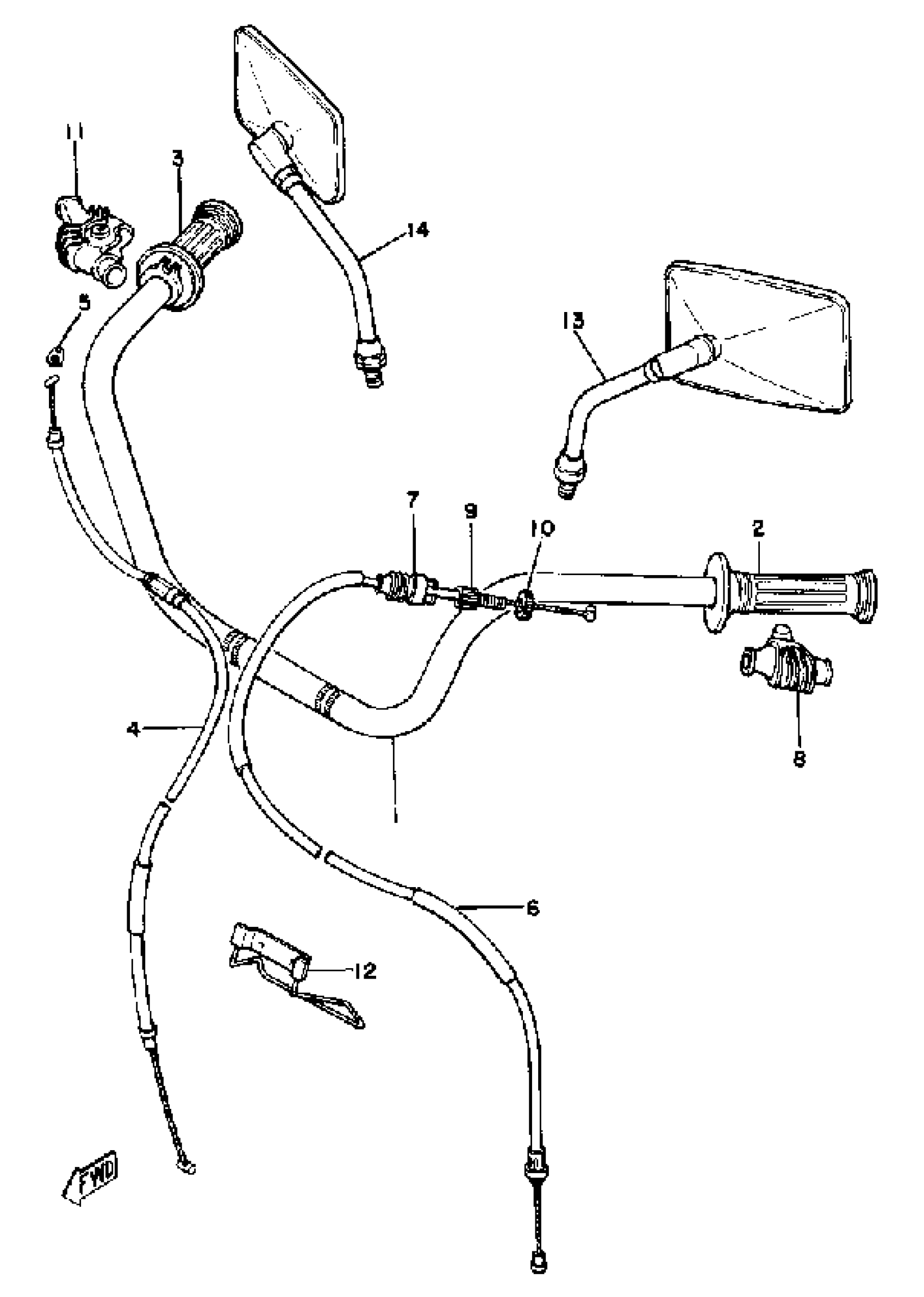

Yamaha XS1100SH (XS1100S) 1981 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

3H3-26111-00-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$11.99

3

GRIP ASSY

2H7-26240-01-00

$18.49

4

CABLE, THROTTLE 1

3H3-26311-00-00

Unavailable

5

HOLDER,

584-26393-02-00

Unavailable

6

CABLE, CLUTCH

3H3-26335-00-00

Unavailable

7

BOOT, WIRE

1E6-26342-00-00

$30.99

8

COVER, LEVER

1E6-26372-00-00

$23.99

9

BOLT

90123-08002-00

$10.49

10

NUT

90179-08030-00

$5.49

11

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

12

GUIDE, CABLE

(1J7-26399-00-00)

Unavailable

13

REAR VIEW MIRROR ASSY(LEFT)

4H7-26290-20-00

$143.99

14

REAR VIEW MIRROR ASSY (RIGHT)

4H7-26290-50-00

$143.99
