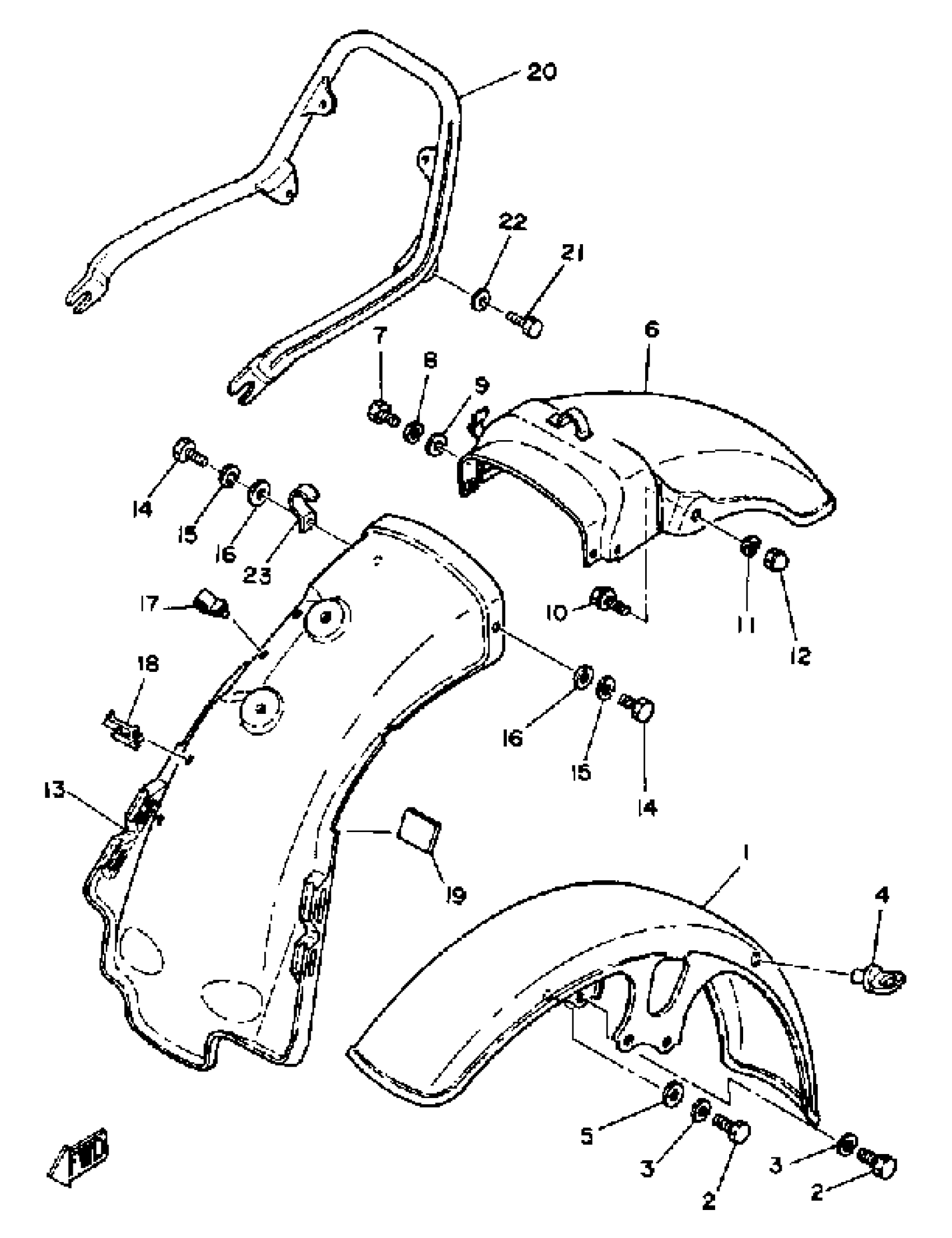

Yamaha XS1100SH (XS1100S) 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3H3-21511-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

WASHER, PLATE (397)

90201-08100-00

$8.49

6

FENDER, REAR

3J6-21610-00-93

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

BOLT, FLANGE

95817-10020-00

$8.49

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

NUT, CROWN(3BM)

90176-10073-00

$8.49

13

GUARD, MUD

3H3-21629-00-00

Unavailable

14

BOLT, HEXAGON

97017-06012-00

$3.76

15

WASHER, SPRING

92907-06100-00

$4.25

16

WASHER, PLATE

90201-06M08-00

Unavailable

17

CLAMP (2H7)

90464-12027-00

Unavailable

18

CLAMP (1J7)

90464-16021-00

Unavailable

19

DAMPER

22F-2139X-00-00

Unavailable

20

STAY, REAR

3J6-21645-00-00

Unavailable

21

BOLT, HEXAGON

97013-08020-00

$1.16

22

WASHER, PLAIN

92990-08200-00

Unavailable

23

CLAMP 363154850100

90462-05005-00

Unavailable
