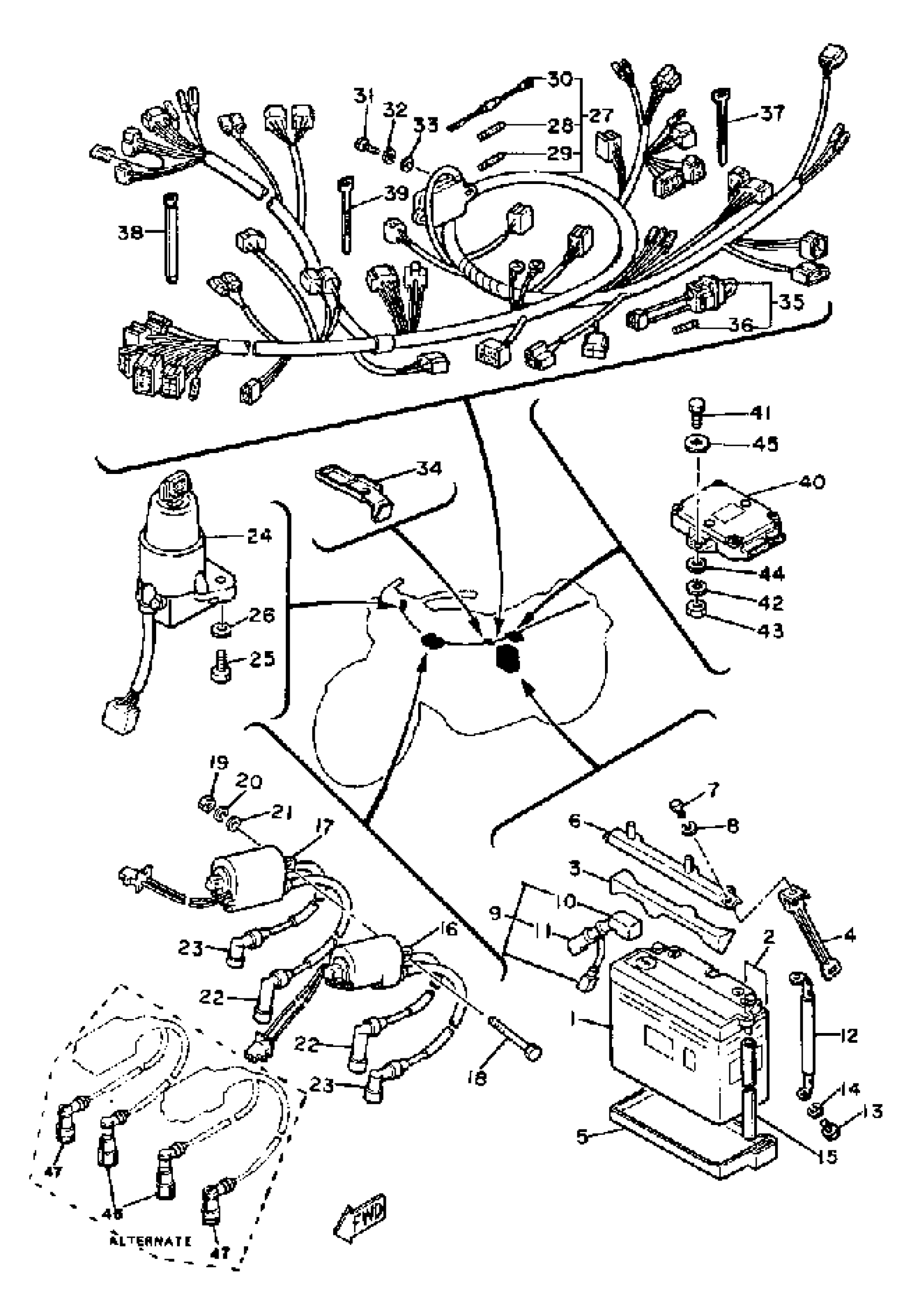

Yamaha XS1100SH (XS1100S) 1981 ELECTRICAL 1 Diagram

#

Description
Price

1

SY50N18LAT YUASA BATTERY

SY5-0N18L-A0-00

Unavailable

2

LABEL, BATTERY

40A-82141-G0-00

Unavailable

3

PAD, BATTERY

2H7-82121-00-00

Unavailable

4

BAND, BATTERY

2H7-82124-00-00

Unavailable

5

SEAT, BATTERY

2H7-82122-01-00

Unavailable

6

PLATE, BATT FITTING

(2H7-82136-00-00)

Unavailable

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WIRE, PLUS LEAD

2H7-82115-00-00

Unavailable

10

COVER, LEAD WIRE

(1J7-82119-00-00)

Unavailable

11

. COVER, LEAD WIRE

2H7-82119-00-00

Unavailable

12

WIRE,MINUS LEAD

2H7-82116-00-00

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

HOSE (L1500)

90445-084J0-00

$18.99

16

IGNITION COIL ASSY

4G0-82310-09-00

Unavailable

17

IGNITION COIL ASSY

4G0-82310-09-00

Unavailable

18

BOLT (36E)

97023-06085-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

23

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

24

MAIN SWITCH ASSEMBLY (24M-82501-50)

4R0-82508-50-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

WIRE HARNESS ASSEMBLY

4R0-82590-50-00

Unavailable

28

FUSE

1A0-82151-00-00

Unavailable

29

FUSE

1A0-82161-00-00

Unavailable

30

RECTIFIER 2

3H5-81980-00-00

Unavailable

31

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

WASHER, PLAIN (646)

92990-05600-00

Unavailable

34

CLAMP

(90465-10133-00)

Unavailable

35

FUSE HOLDER ASSEMBLY

3H5-82150-00-00

Unavailable

36

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

37

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

38

BAND

341-26397-01-00

Unavailable

39

BAND, SWITCH CORD

437-83936-11-00

Unavailable

40

IGNITOR UNIT ASSEMBLY 1

(4R0-82305-10-00)

Unavailable

41

BOLT, HEXAGON

97017-06020-00

$4.06

42

WASHER, SPRING

92995-06100-00

Unavailable

43

NUT, HEXAGON

95380-06600-00

Unavailable

44

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

45

WASHER, PLATE

90201-06095-00

Unavailable

46

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

47

PLUG CAP ASSEMBLY

2H8-82370-10-00

Unavailable
