TRANSMISSION

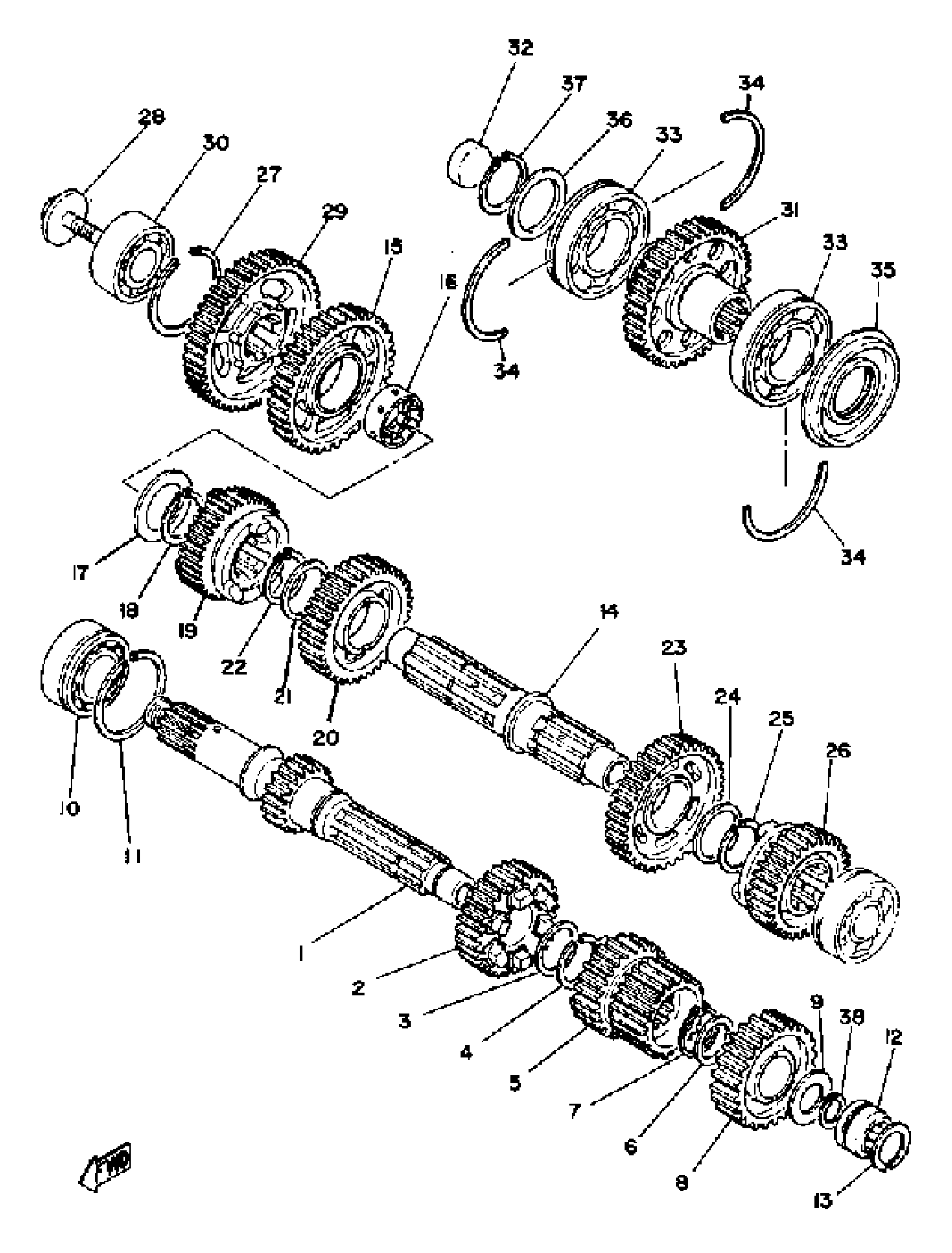

Yamaha XS1100SG (XS1100S) 1980 TRANSMISSION Diagram
#
1
MAIN AXLE ASSEMBLY
2H7-17401-00-00
Unavailable
2
GEAR, 4TH PINION
2H7-17141-01-00
Unavailable
3
WASHER, GEAR HOLD 1
4A0-17116-00-10
Unavailable
5
GEAR, 2ND PINION
2H7-17121-00-00
Unavailable
8
GEAR, 5TH PINION
2H7-17151-00-00
Unavailable
10
BEARING
93305-20506-00
Unavailable
12
BEARING, CYLINDER.#11
93311-52031-00
Unavailable
13
CIRCLIP (2H7)
93440-32063-00
Unavailable
14
AXLE, DRIVE
2H7-17421-01-00
Unavailable
15
GEAR, 1ST WHEEL
2H7-17211-00-00
Unavailable
16
COLLAR 1
2H7-17258-00-00
Unavailable
17
WASHER, PLATE (2H7)
90201-30666-00
Unavailable
18
CIRCLIP(4A6)
99009-30400-00
Unavailable
19
GEAR, 4TH WHEEL
2H7-17241-00-00
Unavailable
20
GEAR, 3RD WHEEL
2H7-17231-01-00
Unavailable
21
WASHER, PLATE
90201-30398-00
Unavailable
22
CIRCLIP(4A6)
99009-30400-00
Unavailable
23
GEAR, 2ND WHEEL
2H7-17221-01-00
Unavailable
24
WASHER, PLATE
90201-30398-00
Unavailable
25
CIRCLIP, OUTER
93440-30015-00
Unavailable
26
GEAR, 5TH WHEEL
2H7-17251-00-00
Unavailable
27
. CIRCLIP
93450-52010-00
Unavailable
28
BOLT, WASHER BASED
90105-10085-00
Unavailable
29
GEAR, MIDDLE DRIVE
2H7-17582-00-00
Unavailable
30
BEARING
93304-20504-00
Unavailable
31
GEAR, MIDDLE DRIVEN
(2H7-17583-00-00)
Unavailable
32
PLUG, TIGHT
90331-27013-00
Unavailable
33
. BEARING
93306-20705-00
Unavailable
34
CIRCLIP (1J7)
93440-72049-00
Unavailable
35
OIL SEAL, SW-TYPE
93103-35105-00
Unavailable
36
WASHER,PLATE
99999-03102-00
Unavailable
37
. CIRCLIP, S-TYPE (S-35)
93410-35027-00
Unavailable
38
CIRCLIP(1AR)
99009-20400-00
Unavailable
