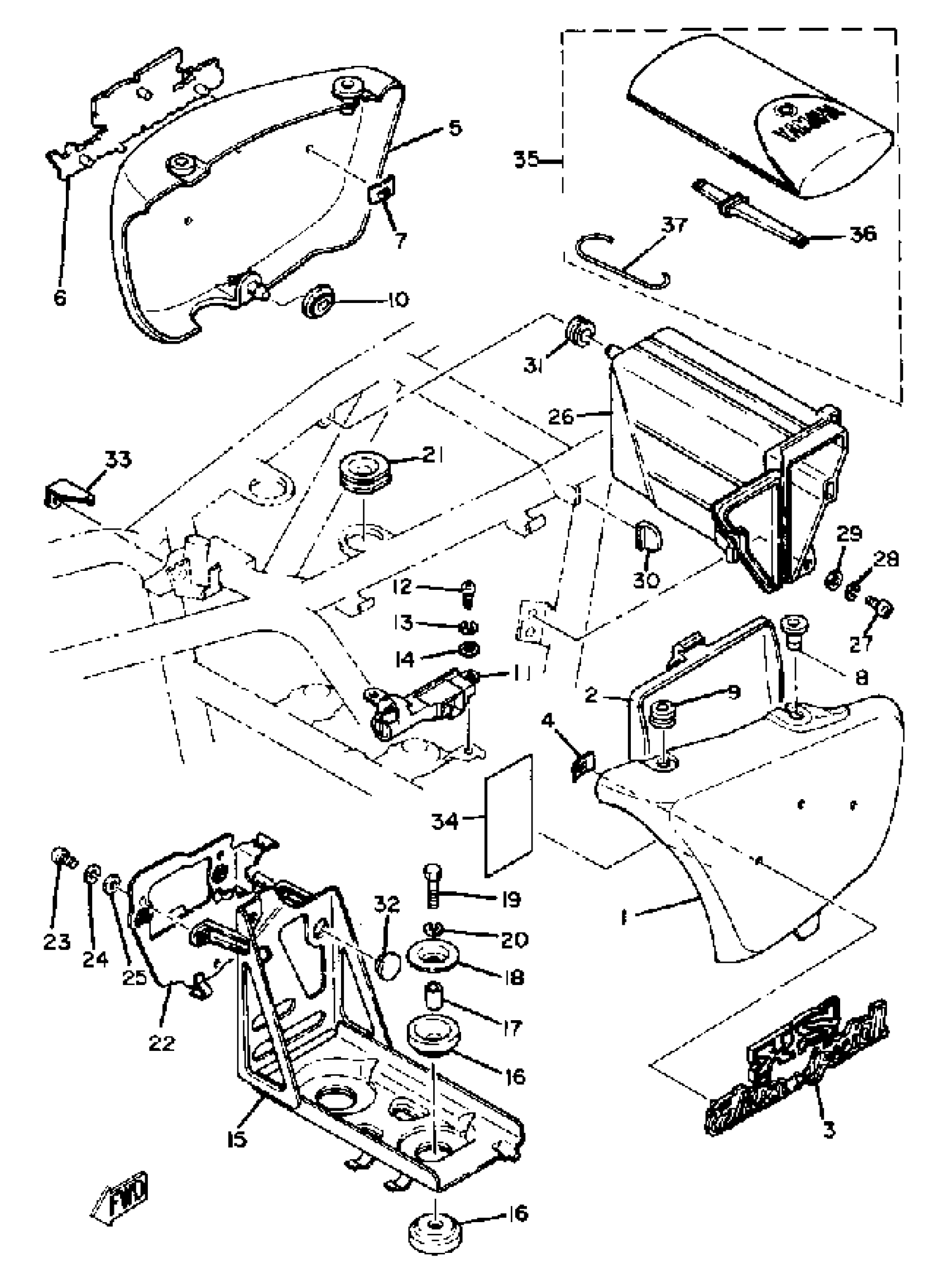

Yamaha XS1100SG (XS1100S) 1980 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3J6-21711-00-2J

Unavailable

1

COVER, SIDE 1 (NEW WHITE)

3J6-21711-00-7J

Unavailable

2

LID

3J6-28185-00-00

Unavailable

3

EMBLEM 1

3J6-21781-00-00

Unavailable

4

NUT, SPRING (1L9)

90183-04012-00

$7.49

5

COVER, SIDE 2

3J6-21721-00-2J

Unavailable

5

COVER, SIDE 2 (NEW WHITE)

(3J6-21721-00-7J)

Unavailable

6

EMBLEM 2

3J6-21782-00-00

Unavailable

7

NUT, SPRING (1L9)

90183-04012-00

$7.49

8

GROMMET (26H)

90480-12355-00

Unavailable

9

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

10

GROMMET(41Y)

90480-01401-00

$8.49

11

SIDE CVR LOCK ASSEMBLY

(4H3-21708-00-00)

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER, SPRING

92907-06100-00

$4.25

14

WASHER(6TA)

92907-06600-00

Unavailable

15

BOX

(2H7-21170-00-33)

Unavailable

16

DAMPER

2H7-21746-00-00

Unavailable

17

COLLAR

90387-06387-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-07170-00

Unavailable

19

BOLT, HEXAGON

97017-06030-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

DAMPER

2H7-21747-00-00

Unavailable

22

PLATE 1

(2H7-21543-00-91)

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

BOX, TOOL

2H7-21171-01-00

Unavailable

27

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

WASHER, PLATE

90201-06M08-00

Unavailable

30

GROMMET

90480-16185-00

Unavailable

31

GROMMET (1E6)

90480-15058-00

Unavailable

32

GROMMET

(90480-17218-00)

Unavailable

33

WASHER, SPECIAL 1

(2H7-21715-00-00)

Unavailable

34

PLATE, SPEC

(3H5-21683-00-00)

Unavailable

35

TOOL KIT

2H7-W2810-00-00

Unavailable

36

. GAUGE, OIL LEVEL

2H7-2815A-00-00

Unavailable

37

WIRE, HOOK

3H3-2814A-00-00

Unavailable
