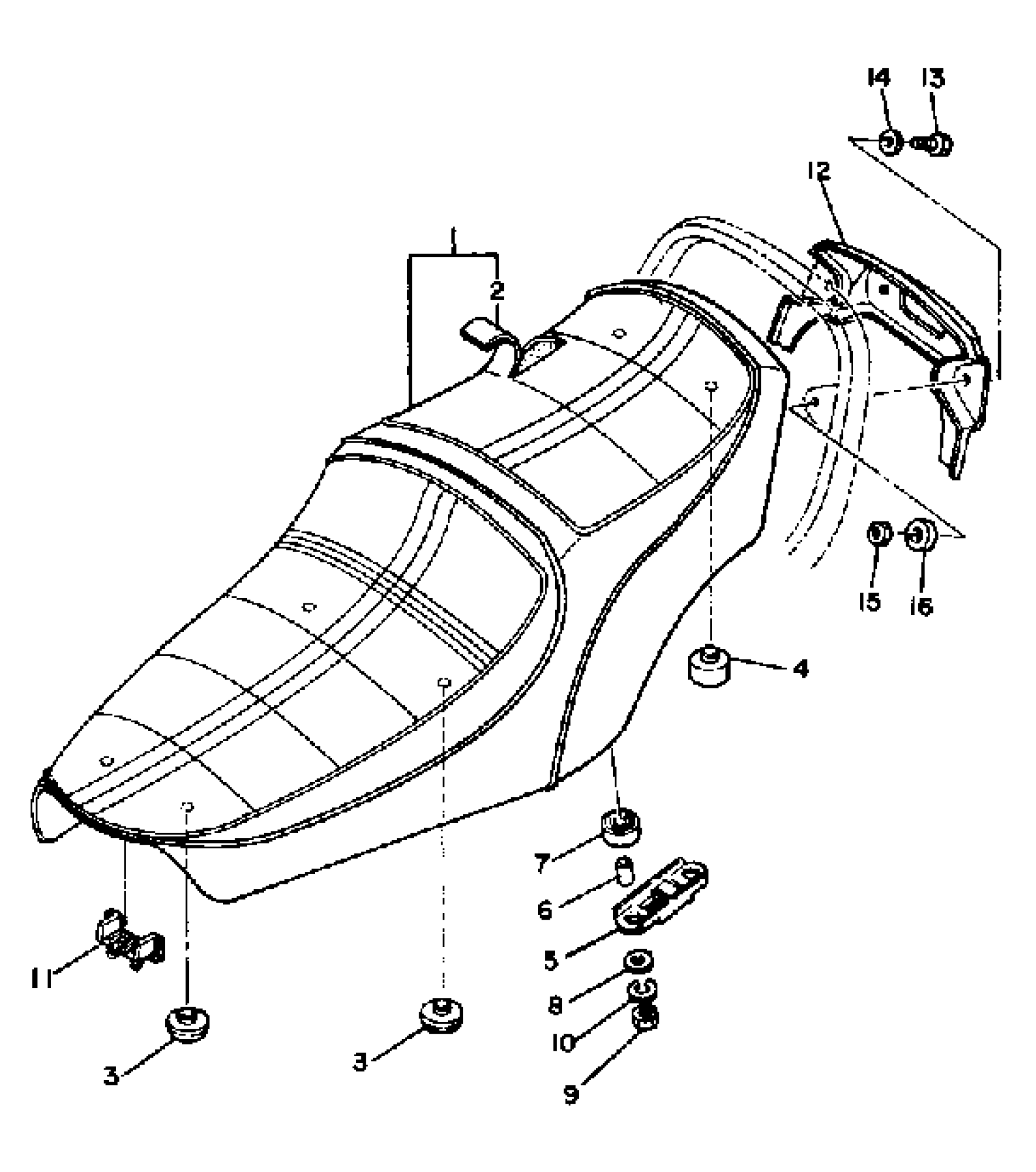

Yamaha XS1100SG (XS1100S) 1980 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

3J6-W2472-00-00

Unavailable

2

COVER, DOUBLE SEAT

(3J6-24731-00-00)

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

PAD, SEAT

1T4-24741-00-00

Unavailable

5

BRACKET, SEAT

2H7-24738-00-00

Unavailable

6

COLLAR (1M1)

90387-06553-00

$9.49

7

DAMPER, SEAT

2H7-24723-00-00

Unavailable

8

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

WASHER, SPRING

92995-06100-00

Unavailable

11

DAMPER, SEAT

2H7-24724-00-00

Unavailable

12

COVER, TAIL

3J6-24756-00-00

Unavailable

13

BOLT, HEXAGON

97017-08025-00

$10.49

14

WASHER(6TC)

92907-08200-00

$8.49

15

NUT(6TA)

95337-08600-00

$8.49

16

WASHER, PLATE

90201-08104-00

Unavailable
