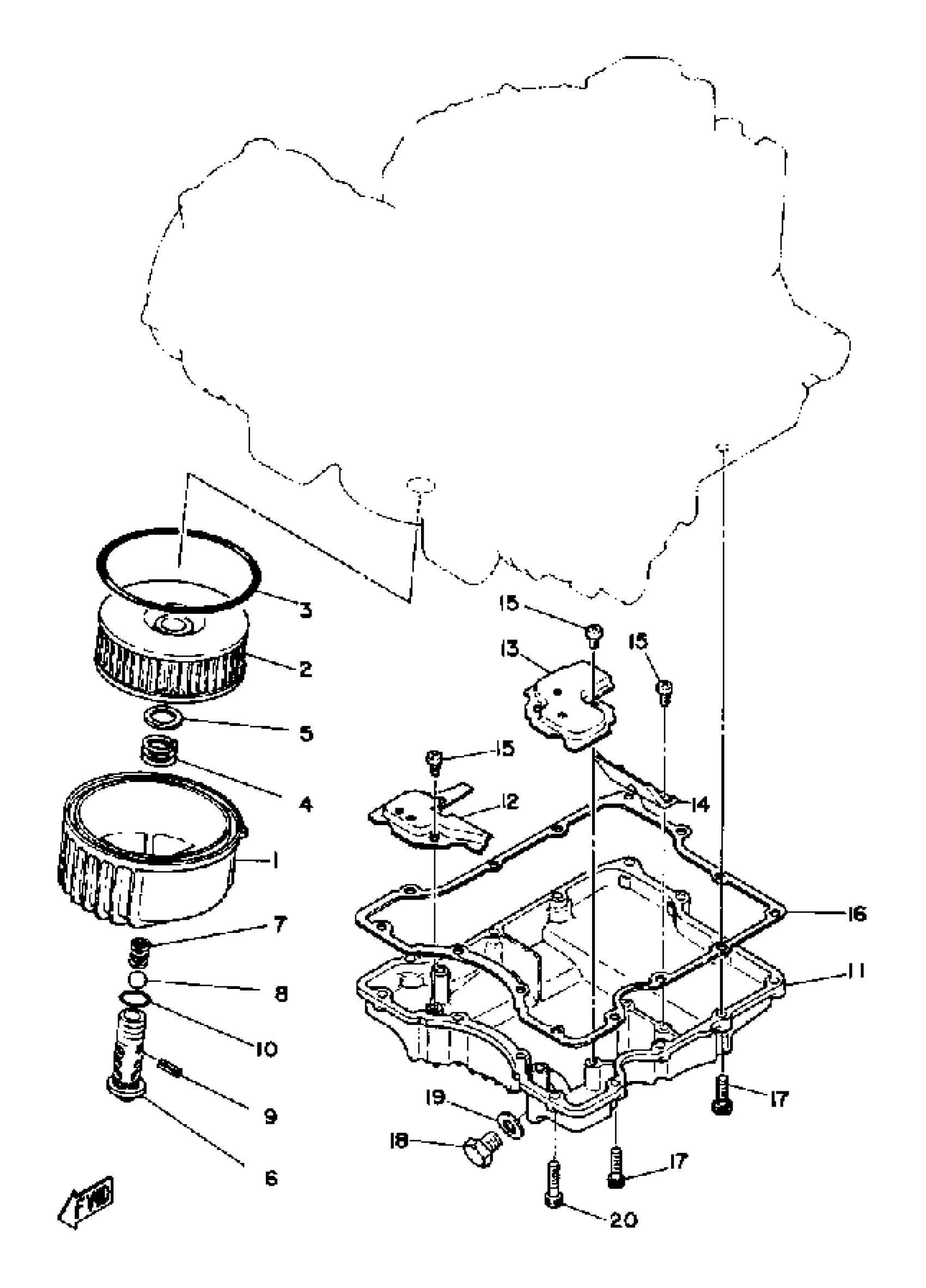

Yamaha XS1100SG (XS1100S) 1980 OIL CLEANER Diagram

#

Description
Price

1

COVER, OIL ELEMENT

2H7-13447-00-00

Unavailable

2

ELEMENT, OIL CLEANER

1J7-13441-10-00

$10.99

3

O-RING (3Y2)

93211-19413-00

$15.99

4

SPRING, COMPRESSION (1J7)

90501-18433-00

$5.60

5

WASHER, PLATE (1L9)

90201-21608-00

$8.49

6

BY-PASS VALVE ASSEMBLY

2H7-13340-00-00

Unavailable

7

SPRING, COMPRESSION (1J7)

90501-12413-00

Unavailable

8

BALL, HALF

93501-02018-00

Unavailable

9

PIN,SPRING

91690-20018-00

Unavailable

10

O-RING (1J7)

93210-16314-00

$4.29

11

COVER, STRAINER

2H7-13417-00-00

Unavailable

12

PLATE, BAFFLE

(2H7-13317-00-00)

Unavailable

13

PLATE, BAFFLE LOWER

(2H7-13337-00-00)

Unavailable

14

PLATE

(2H7-13371-00-00)

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

GASKET8STRNR COVER

2H7-13414-10-00

Unavailable

17

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

18

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

19

GASKET

214-11198-01-00

Unavailable

20

BOLT, SOCKET

91314-06035-00

Unavailable
