Description

Price

1

FRONT STOP SWITCH ASSY

26H-83980-00-00

$74.99

2

SWITCH, HANDLE 2

3H3-83975-01-98

Unavailable

3

SCREW, PAN HEAD

98517-05030-00

$10.49

4

SCREW, PAN

98507-05040-00

$8.49

5

SWITCH, HANDLE 4

3J6-83972-00-00

Unavailable

6

SCREW, PAN HEAD

98517-05030-00

$10.49

7

BAND, SWITCH CORD

437-83936-01-00

$7.99

8

LEVER L

2H0-83912-31-00

$31.99

9

LEVER 2

4L0-83922-00-00

$46.99

10

SCREW (2L0)

90149-06131-00

$8.49

11

NUT HEXAGON 306839270000

90170-06010-00

$8.49

12

HOLDER, LEVER (L.H) (371,447)

341-82911-00-00

Unavailable

13

BOLT(1FG)

90109-06798-00

$8.49

14

O-RING (2H7)

93210-11368-00

$5.60

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

BOLT, HEXAGON

97013-06022-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

BOLT (4L0)

90109-06577-00

Unavailable

19

SPRING, COMPRESSION (2H7)

90501-10510-00

Unavailable

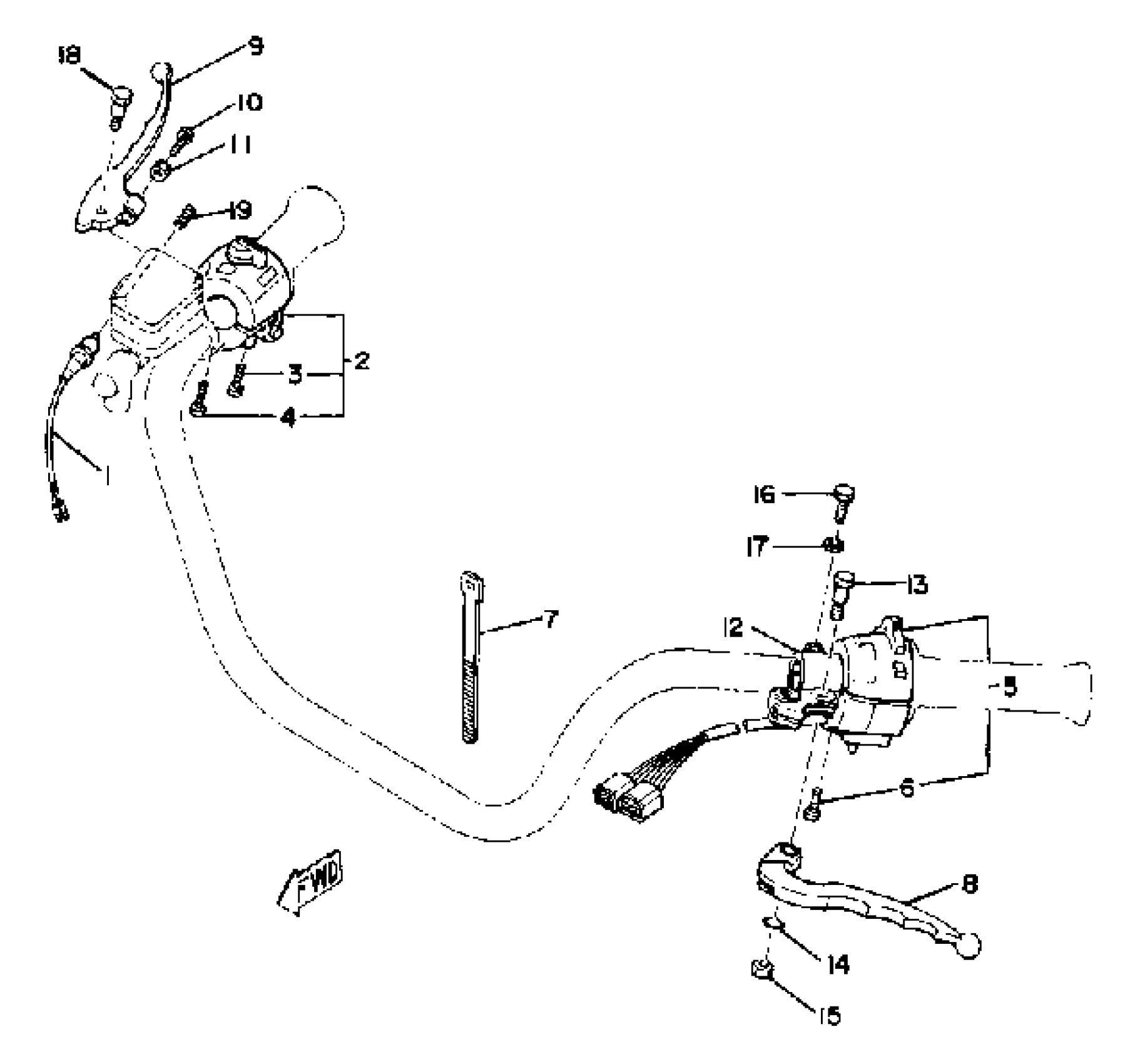

Yamaha XS1100SG (XS1100S) 1980 HANDLE SWITCH LEVER Diagram

FRONT STOP SWITCH ASSY

SWITCH, HANDLE 2

SCREW, PAN HEAD

SCREW, PAN

SWITCH, HANDLE 4

SCREW, PAN HEAD

BAND, SWITCH CORD

LEVER L

LEVER 2

SCREW (2L0)

NUT HEXAGON 306839270000

HOLDER, LEVER (L.H) (371,447)

BOLT(1FG)

O-RING (2H7)

NUT, SELF-LOCKING

BOLT, HEXAGON

WASHER, SPRING

BOLT (4L0)

SPRING, COMPRESSION (2H7)
