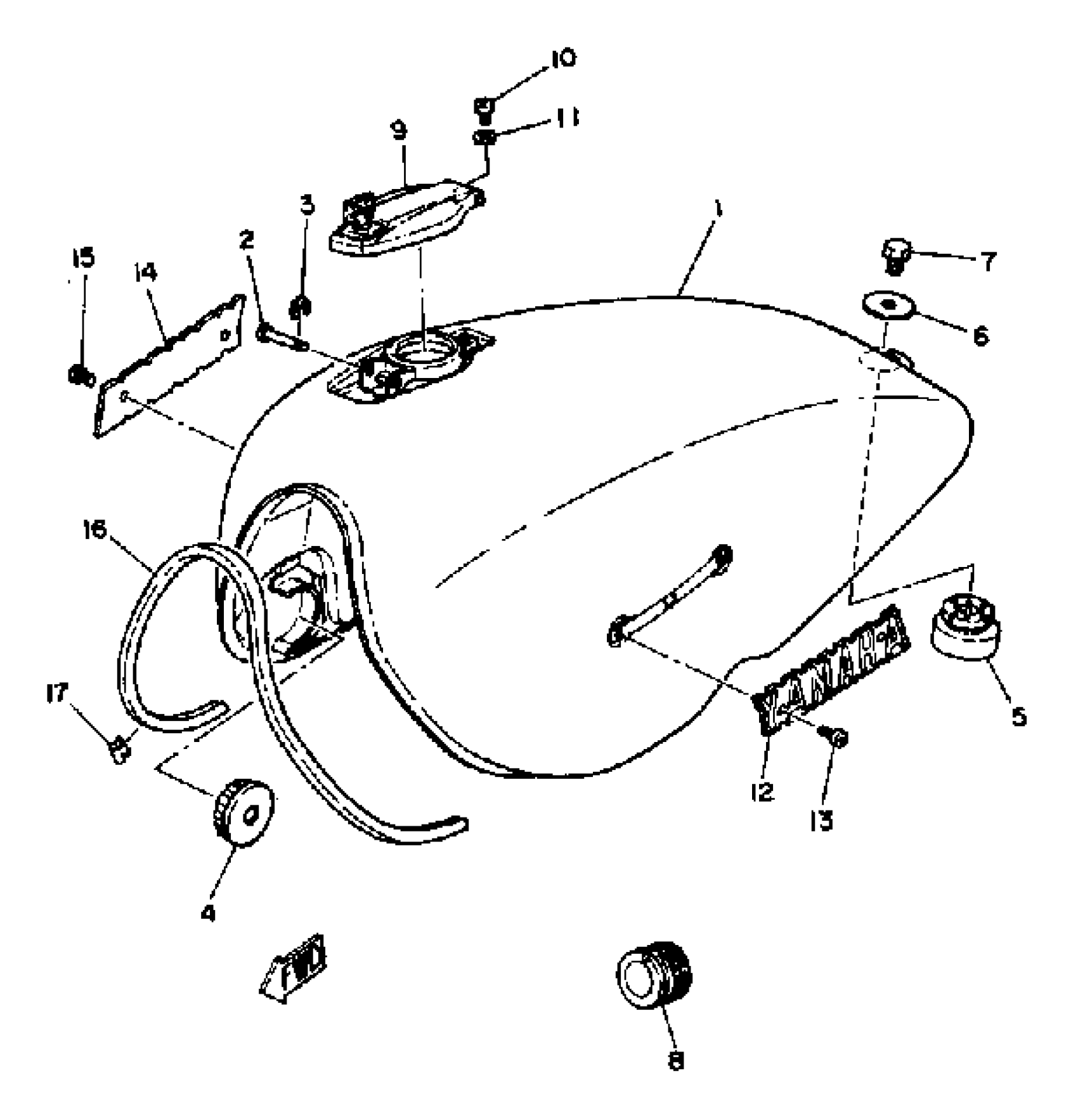

Yamaha XS1100SG (XS1100S) 1980 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

3H3-24110-00-2J

Unavailable

1

FUEL TANK (NEW WHITE)

(3H3-24110-00-7J)

Unavailable

2

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

3

CIRCLIP (604)

93430-02001-00

$8.49

4

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

5

DAMPER, LOCATING 2

2H7-24182-00-00

Unavailable

6

WASHER 1902345600

90201-08310-00

$9.49

7

BOLT(62E)

97013-08012-00

Unavailable

8

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

9

CAP ASSY

4R0-24602-01-00

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

EMBLEM 1

J38-24161-00-00

Unavailable

13

SCREW (2F0)

90152-04006-00

$10.49

14

EMBLEM 1

J38-24161-00-00

Unavailable

15

SCREW (2F0)

90152-04006-00

$10.49

16

PLATE, MOLD

3EB-24189-00-00

Unavailable

17

CLIP

90468-03063-00

Unavailable
