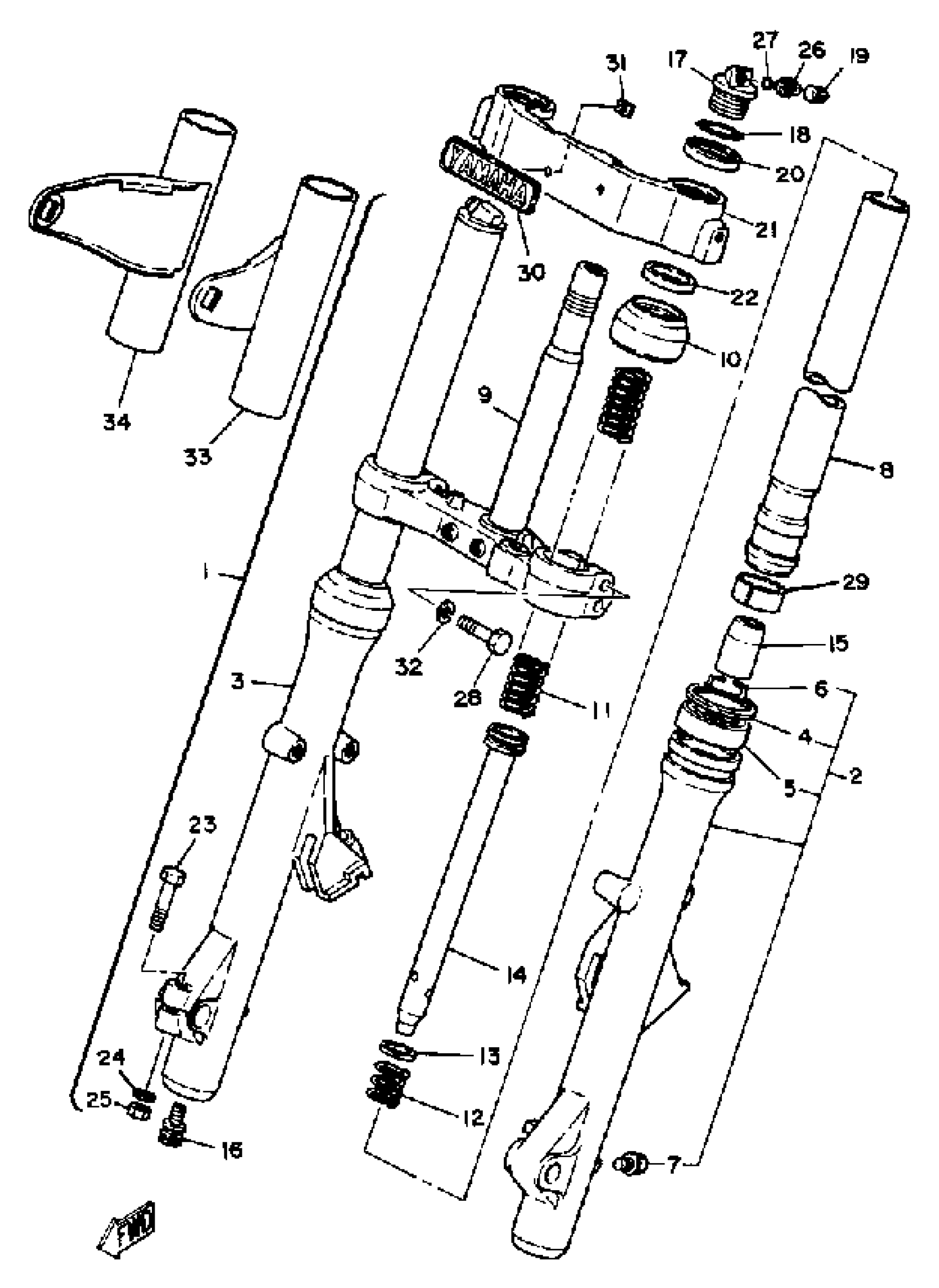

Yamaha XS1100SG (XS1100S) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3H3-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(3J6-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(3J6-23136-00-00)

Unavailable

4

WASHER, OIL SEAL

(3J6-23146-00-00)

Unavailable

5

.. OIL SEAL

3J6-23145-00-00

Unavailable

6

CLIP, OIL SEAL

34X-23156-00-00

$8.99

7

PLUG, DRAIN

2A6-23119-00-00

$8.99

8

. INNER TUBE 1

5K7-23110-00-00

Unavailable

9

. UNDER BRACKET

5K7-23340-00-90

Unavailable

10

. SEAL, DUST

10M-23144-00-00

Unavailable

11

SPRING, FRONT FORK

(3J6-23141-00-00)

Unavailable

12

. SPRING, REBOUND

1J3-23151-00-00

Unavailable

13

. UNAVAILABLE IN PRICE BOOK (2F3-23157-00)

IT4-23157-01-00

Unavailable

14

. CYLINDER, FRTFRK

3H3-23170-00-00

Unavailable

15

. SPACER, OIL LOCK

(1J3-23166-00-00)

Unavailable

16

BOLT

3M7-23181-00-00

Unavailable

17

. BOLT, CAP

3H3-23111-00-00

Unavailable

18

. GASKET

3H3-23114-00-00

Unavailable

19

. CAP, AIR VALVE

27H-23184-00-00

Unavailable

20

. GUIDE, COVER UPPER

3H3-23115-00-00

Unavailable

21

. COVER, OUTER 1

3H3-23122-00-00

Unavailable

22

. GASKET

3H3-23163-00-00

Unavailable

23

BOLT(3HN)

97017-08045-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

26

. AIR VALVE

5K7-23190-00-00

Unavailable

27

O-RING (26H)

93210-06632-00

Unavailable

28

. BOLT 1

3J3-23346-00-00

Unavailable

29

. METAL, SLIDE 2

3H3-23135-00-00

Unavailable

30

. EMBLEM

2M0-23395-00-00

Unavailable

31

NUT, SPRING (1L9)

90183-04012-00

Unavailable

32

. WASHER, SPRING LWR

3J3-23159-00-00

Unavailable

33

COVER, UPPER 1

(3H3-23121-00-93)

Unavailable

34

COVER, UPPER 2

3H3-23131-00-93

Unavailable
