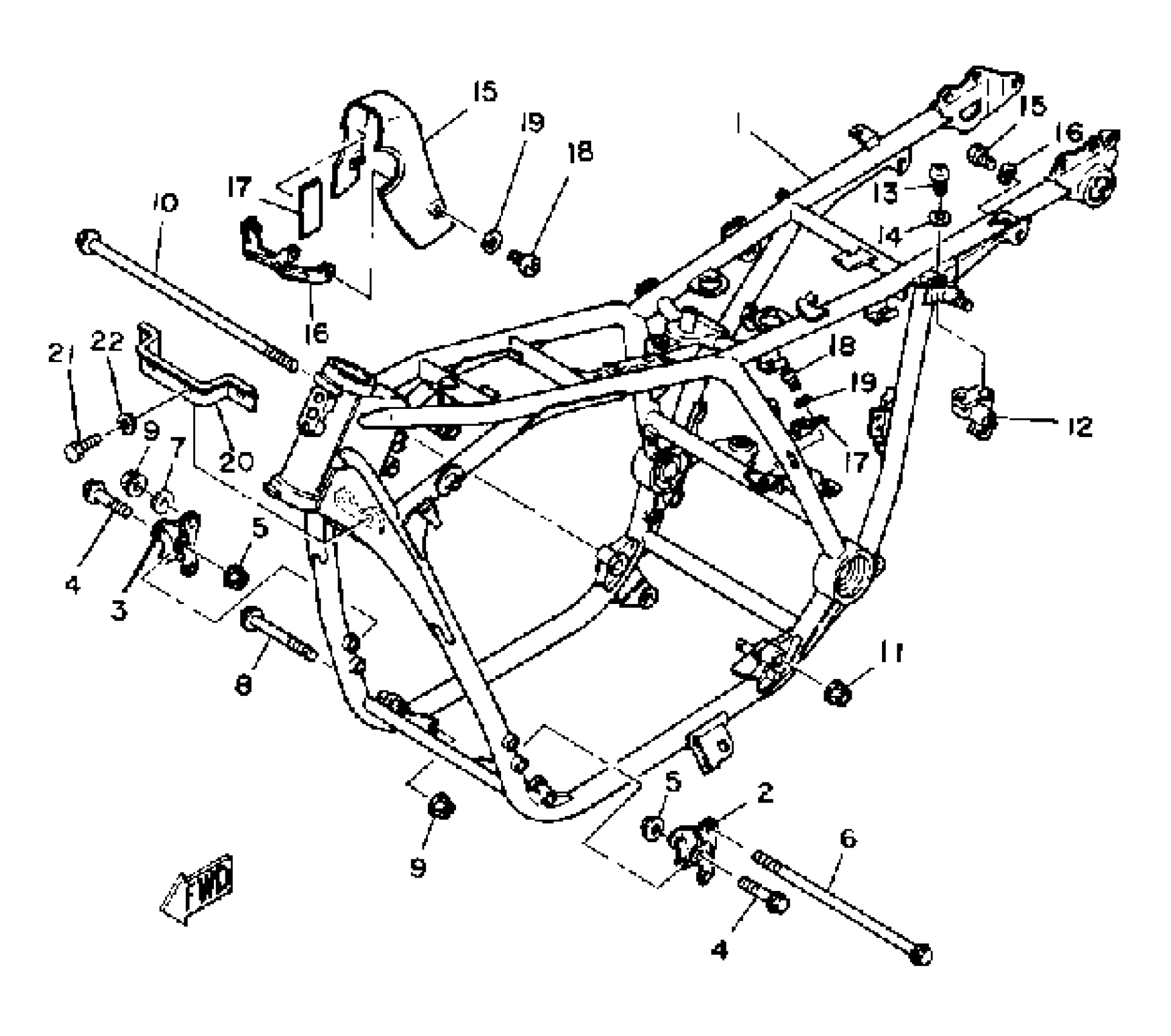

Yamaha XS1100SG (XS1100S) 1980 FRAME Diagram

#

Description
Price

1

FRAME

(4H3-21110-00-98)

Unavailable

2

STAY, ENGINE 2

3H3-21315-00-00

Unavailable

3

STAY, ENGINE 3

(3H3-21316-00-00)

Unavailable

4

BOLT, WASHER BASED

90105-08107-00

Unavailable

5

NUT(55X)

90179-08491-00

$8.49

6

BOLT, ENGINE MOUNTING

90105-10056-00

Unavailable

7

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

8

BOLT, WASHER BASED (2H7)

90105-10105-00

$12.49

9

NUT(4KG)

90179-10658-00

$9.49

10

BOLT, FLANGE

90105-12047-00

Unavailable

11

NUT(3EF)

90179-12657-00

$5.60

12

HELMET HANGER ASSEMBLY

2H7-21308-00-00

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

COVER 2

3H3-2139R-00-00

Unavailable

16

BRACKET, COVER

(3H3-2139T-00-00)

Unavailable

17

DAMPER 2

(3H3-2139U-00-00)

Unavailable

18

SCREW, PAN

98517-05012-00

Unavailable

19

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

20

STAY, HORN

3J6-2134Y-01-00

Unavailable

21

BOLT, HEXAGON

97017-08016-00

Unavailable

22

WASHER(JN5)

92907-08100-00

Unavailable
