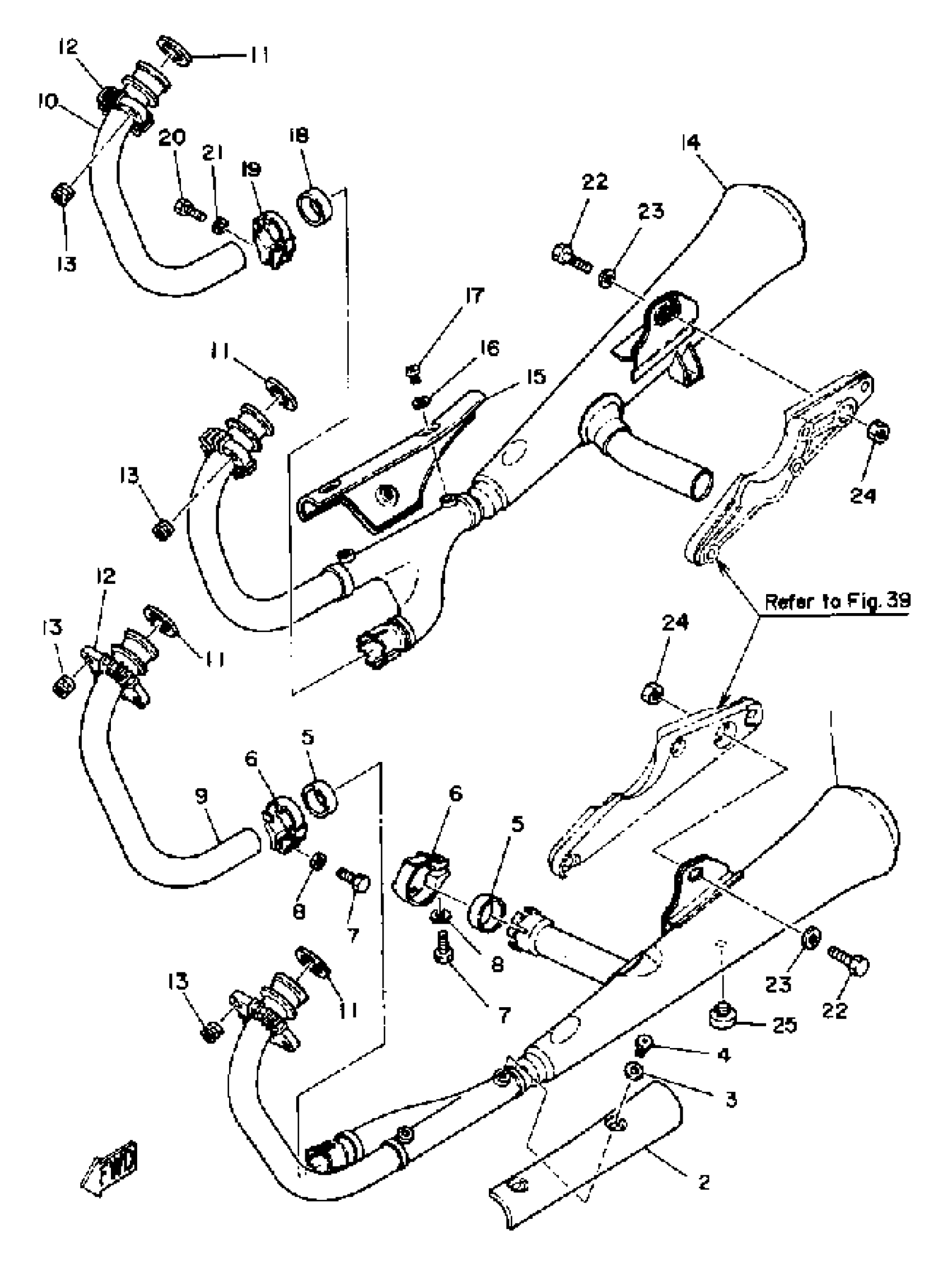

Yamaha XS1100SG (XS1100S) 1980 EXHAUST Diagram
#
Description
Price
1
. JOINT, EXHAUST L
10M-14615-00-00
Unavailable
1
. PROTECTOR, MUFF 1
10M-14718-00-00
Unavailable
1
BAND, silence 4
26H-14797-00-00
Unavailable
1
. UNAVAILABLE IN PRICE BOOK
3H3-14711-09-00
Unavailable
1
WASHER, PLATE
90201-06M08-00
Unavailable
1
.. WASHER, PLATE
92990-08600-00
Unavailable
1
MUFFLER (LH) 3H3
99999-01231-00
Unavailable
2
PROTECTOR, MUFF 1
3H3-14718-00-00
Unavailable
6
BAND, silence 4
26H-14797-00-00
Unavailable
8
.. WASHER, PLATE
92990-08600-00
Unavailable
9
PIPE, EXHAUST R
2H7-14621-02-00
Unavailable
10
PIPE, EXHAUST 3
2H7-14631-02-00
Unavailable
11
GASKET, EXHAUST PIPE
4BE-14613-00-00
Unavailable
12
NUT, RING
2H7-14612-00-00
Unavailable
13
NUT (371)
90179-08004-00
Unavailable
14
MUFFLER (RH) 3H3
99999-01232-00
Unavailable
15
PROTECTER, MUFF 2
3H3-14728-00-00
Unavailable
19
BAND, silencer 4
26H-14796-00-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
BOLT, FLANGE
95814-10040-00
Unavailable
23
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
24
NUT, SPEC''L SHAPE
90179-10276-00
Unavailable
25
STOPPER, MAIN STAND
371-27114-00-00
Unavailable
