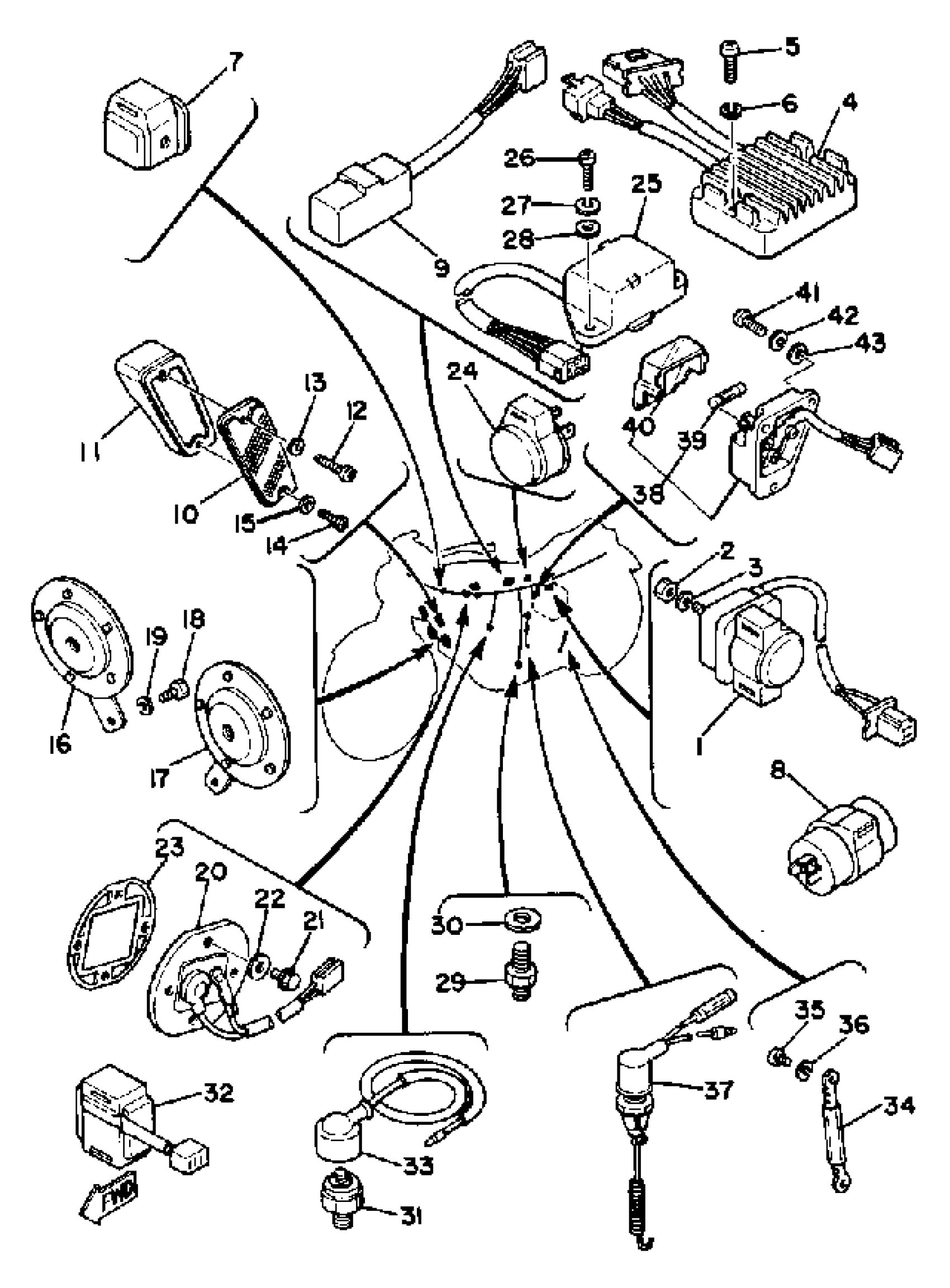

Yamaha XS1100SG (XS1100S) 1980 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

Unavailable

5

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

6

WASHER, SPRING

92995-06100-00

Unavailable

7

RELAY ASSY (3H5-00)

3H5-81950-00-00

Unavailable

8

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

9

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

10

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

Unavailable

11

BASE, REFLECTOR

(3J6-85127-00-00)

Unavailable

12

SCREW, PAN HEAD(MK5)

98507-04035-00

$8.49

13

WASHER, PLAIN (646)

92990-04600-00

$5.99

14

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

15

WASHER, PLAIN (646)

92990-04600-00

$5.99

16

HORN

3H5-83371-20-00

Unavailable

17

HORN

(3H5-83371-30-00)

Unavailable

18

BOLT, HEXAGON

97017-08016-00

Unavailable

19

WASHER(JN5)

92907-08100-00

Unavailable

20

SENDER UNIT ASSEMBLY, FUEL METER

3H3-85752-00-00

Unavailable

21

BOLT, FLANGE

95817-06014-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

24

HAZARD FLASHER RELAY ASSEMBLY

3H5-83360-00-00

Unavailable

25

RESERVE LIGHTING UNIT ASSEMBLY

2F9-84308-00-00

Unavailable

26

SCREW PAN HEAD

98580-06020-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

NEUTRAL SWITCH ASSY

4GY-82540-10-00

Unavailable

30

GASKET (5R6)

90430-10171-00

Unavailable

31

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

32

EMERGENCY STOP SWITCH ASSY

2H7-82576-00-00

Unavailable

33

WIRE, LEAD

2H7-82507-00-00

Unavailable

34

WIRE, EARTH LEAD

2H7-82519-00-00

Unavailable

35

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable

37

STOP SWITCH

1J7-82530-02-00

Unavailable

38

TERMINAL ASSEMBLY

2H7-81920-00-00

Unavailable

39

FUSE

1A0-82151-00-00

Unavailable

40

COVER, TERMINAL

(2H7-81916-00-00)

Unavailable

41

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

42

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

43

PLUG

1J7-11138-00-00

Unavailable

43

SEAL, VALVE STEM OIL

1J7-12119-01-00

Unavailable

43

GASKET, CYLINDER HEAD 1

2H7-11181-02-00

Unavailable

43

GASKET, CYLINDER HEAD COVER

2H7-11193-10-00

Unavailable

43

GASKET,CYLINDER

2H7-11351-11-00

Unavailable

43

GASKET

2H7-12213-10-00

Unavailable

43

GASKET KIT XS1100

(3H5-W0001-90-00)

Unavailable

43

GASKET, EXHAUST PIPE

4BE-14613-00-00

Unavailable

43

GASKET (5R6)

90430-10171-00

Unavailable

43

WASHER, PLAIN (646)

92990-05600-00

Unavailable

43

O-RING (26H)

93210-06632-00

Unavailable

43

O-RING (2H7)

93210-77363-00

Unavailable
