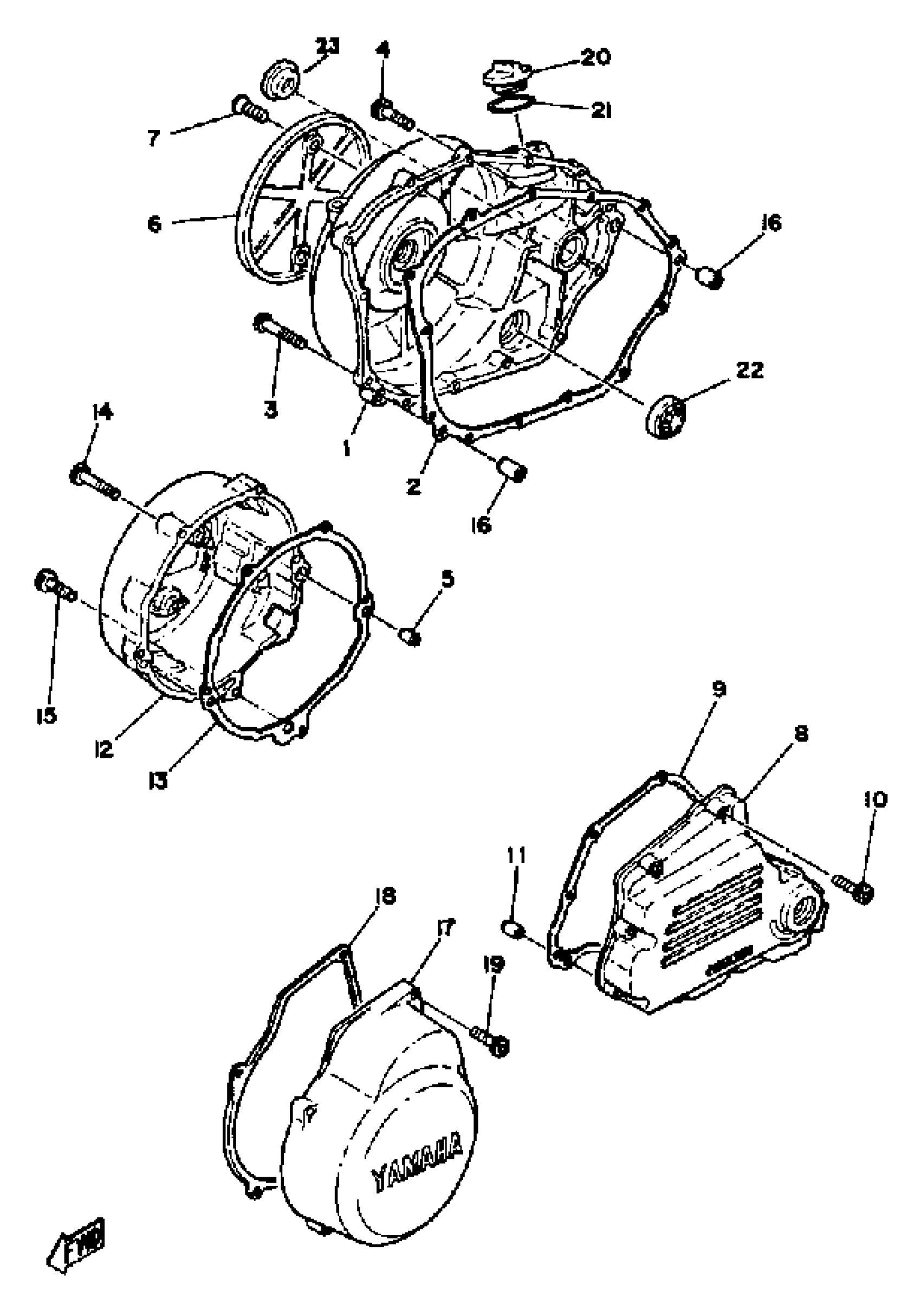

Yamaha XS1100SG (XS1100S) 1980 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 3

2H7-15431-00-00

Unavailable

2

GASKET, CRANKCASE COVER (R.H)

2H7-15451-10-00

$30.99

3

BOLT, SOCKET

91314-06035-00

$8.49

4

BOLT,SOCKET HEAD

91314-06025-00

$8.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

COVER, CAP

2H7-15417-00-00

Unavailable

7

SCREW, OVAL HEAD

98603-06018-00

Unavailable

8

COVER, CRANKCASE L

2H7-15411-00-00

Unavailable

9

GASKET, CRCS CVR 2

2H7-15461-10-00

Unavailable

10

BOLT,SOCKET HEAD

91314-06025-00

$8.49

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

COVER, GENERATOR

2H7-15415-00-00

Unavailable

13

GASKET 1

2H7-15455-10-00

Unavailable

14

BOLT, SOCKET

91314-06035-00

$8.49

15

BOLT,SOCKET HEAD

91314-06025-00

$8.49

16

PIN, DOWEL(3XW)

91808-16023-00

$8.49

17

COVER, OIL PUMP

2H7-15416-02-00

Unavailable

18

GASKET,O/PMP CVR1

2H7-15456-10-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06025-00

$8.49

20

PLUG, OIL

2H7-15363-00-00

Unavailable

21

O-RING(1KT)

93210-27778-00

Unavailable

22

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

23

PLUG (3L3)

90338-30096-00

Unavailable
