- XS1100SG (XS1100S) 1980
CARBURETOR

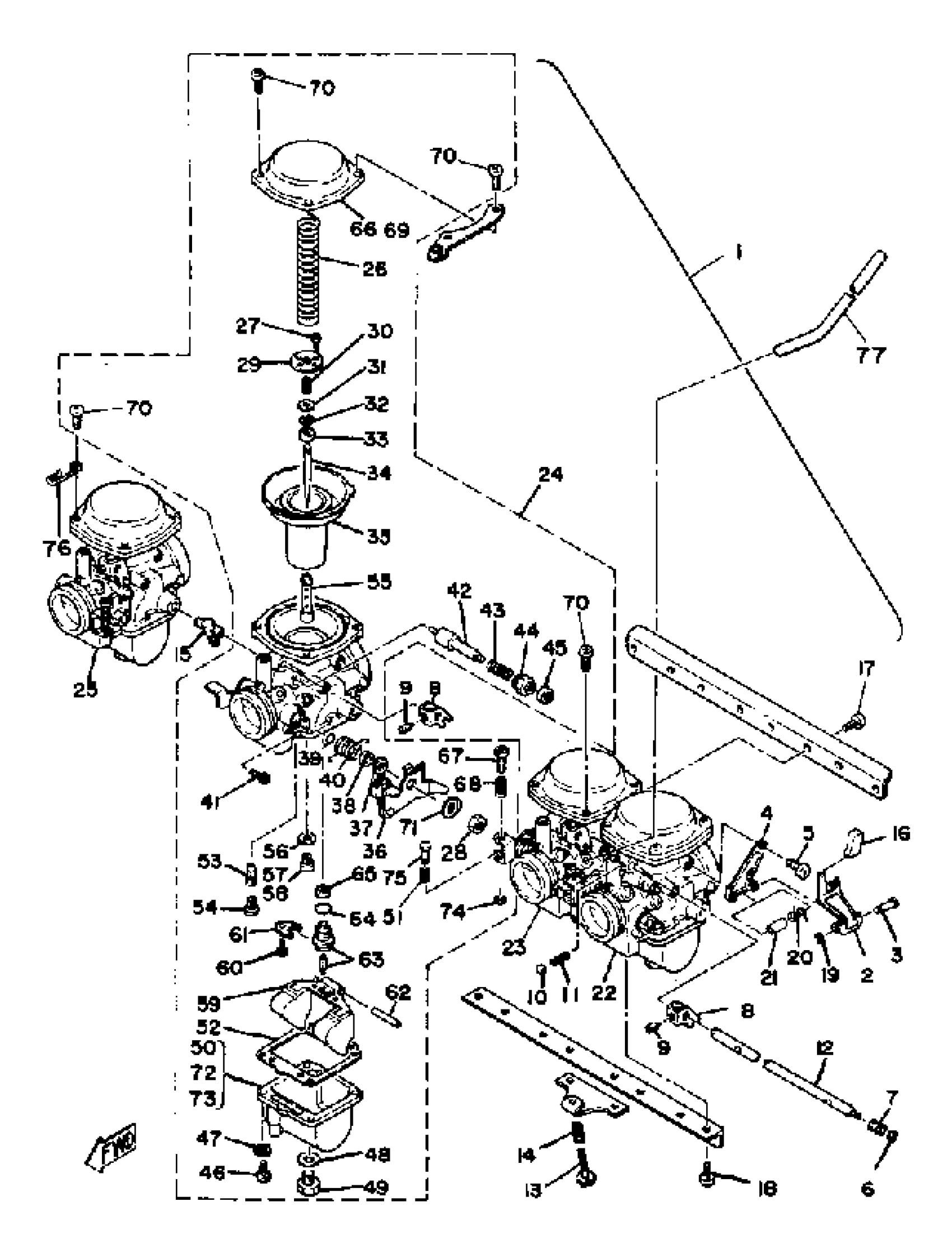

Yamaha XS1100SG (XS1100S) 1980 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
(3J6-14900-00-00)
Unavailable
2
. LEVER, STARTER 1
3H3-14975-00-00
Unavailable
3
. PIN, FLOAT
2F3-14386-00-00
Unavailable
4
. BRACKET
3H3-14995-00-00
Unavailable
6
. CLIP
737-14137-00-00
Unavailable
7
. BUSH
2H7-14998-00-00
Unavailable
8
. LEVER, STARTER
3F7-14905-00-00
Unavailable
9
. SCREW
11V-14991-00-00
Unavailable
12
SHAFT, STARTER LEVER
(2H7-14978-00-00)
Unavailable
13
. THROTTLE SCREW SET
11H-14103-00-00
Unavailable
14
. , SPRING, THROTTLE STOP
3F7-14934-00-00
Unavailable
15
. PIPE, STARTER CON
3H3-14988-00-00
Unavailable
16
. CAP
2F3-14968-00-00
Unavailable
17
GASKET, EXHAUST
98507-05008-00
Unavailable
18
SCREW, PAN
98507-06014-00
Unavailable
19
. CLIP
2F3-14919-00-00
Unavailable
20
. SPRING
2F3-14938-00-00
Unavailable
22
PIPE
(2F3-14996-00-00)
Unavailable
22
CARBURETOR ASSEMBLY 1
(3J6-14901-00-00)
Unavailable
23
CARBURETOR ASSEMBLY 2
(3J6-14902-00-00)
Unavailable
24
CARBURETOR ASSEMBLY 3
(3J6-14903-00-00)
Unavailable
25
CARBURETOR ASSEMBLY 4
(3J6-14904-00-00)
Unavailable
26
.. SPRING, DIAPHRAGM
3H5-14933-00-00
Unavailable
27
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
28
NUT, HEXAGON 98801-12200
90170-12175-00
Unavailable
29
PLATE, DIAPHRAGM
3F7-14936-00-00
Unavailable
30
SPRING, NEEDLE
3F7-14589-00-00
Unavailable
31
WASHER, PLATE (7Y2)
90201-037F2-00
Unavailable
32
CLIP
256-14919-00-00
Unavailable
33
RING, NEEDLE
3F7-14918-00-00
Unavailable
34
.. NEEDLE
452-14116-16-00
Unavailable
35
DIAPHRAGM ASSY
3F7-14940-00-00
Unavailable
36
LEVER, THROTTLE
(3H5-14913-00-00)
Unavailable
37
VALVE, THROTTLE
(306-14970-00-00)
Unavailable
38
RING
(2H7-14918-00-00)
Unavailable
39
.. SEAL
256-14997-00-00
Unavailable
40
SPRING, THROTTLE LEVER
(2H7-14931-00-00)
Unavailable
41
SCREW, CYLINDER HEAD
(98302-05006-00)
Unavailable
42
.. PLUNGER, STARTER
3F7-14171-00-00
Unavailable
43
.. SPRING, PLUNGER
3F7-14135-00-00
Unavailable
44
.. CAP, PLUNGER
3F7-14174-00-00
Unavailable
45
.. COVER, PLUNGER CAP
3F7-14173-00-00
Unavailable
46
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
47
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
48
WASHER
256-14956-01-00
Unavailable
49
. SCREW
1A8-14991-00-00
Unavailable
50
BODY, FLOAT CHAMBER
(3H5-14981-05-00)
Unavailable
51
SPRING, THROTTLE STOP
(584-14934-00-00)
Unavailable
52
GASKET, FLOAT CHAMBER
3F7-14984-00-00
Unavailable
53
JET, PILOT (# 42.5)
4G0-14142-42-A0
Unavailable
54
SCREW, PLUG
3F7-14991-00-00
Unavailable
55
.. NOZZLE, MAIN
3H5-14941-02-00
Unavailable
56
WASHER,MAIN JET
137-14153-00-00
Unavailable
57
JET, MAIN (#125)
620-14231-25-A0
Unavailable
58
JET, MAIN (#120)
620-14231-24-A0
Unavailable
59
FLOAT
3H5-14985-00-00
Unavailable
60
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
61
. PLATE
2H0-14146-00-00
Unavailable
62
PIN, FLOAT
537-14186-00-00
Unavailable
63
NEEDLE VALVE SET
25G-14107-20-00
Unavailable
64
O-RING
8F2-14147-00-00
Unavailable
65
NET, FILTER
1J7-14994-00-00
Unavailable
66
.. COVER, DIAPHRAGM
3H5-14958-01-00
Unavailable
67
. STOP SCREW SET
12R-1490K-00-00
Unavailable
68
. SPRING, THROTTLE STOP
3F7-14133-00-00
Unavailable
69
COVER, DIAPHRAGM
(3F7-14958-01-00)
Unavailable
70
SCREW,PANHEAD (EG9)
98580-05006-00
Unavailable
71
.. WASHER
256-14953-00-00
Unavailable
72
BODY, FLOAT CHAMBER
(3F7-14981-05-00)
Unavailable
73
HOLDER
(3H5-14982-05-00)
Unavailable
74
CLIP
(2H7-14937-00-00)
Unavailable
75
ROD
(2H7-14992-00-00)
Unavailable
76
CLIP
(90468-20072-00)
Unavailable
77
CAP
3F9-14118-00-00
Unavailable
77
HOSE (L400)
90445-082A9-00
Unavailable
