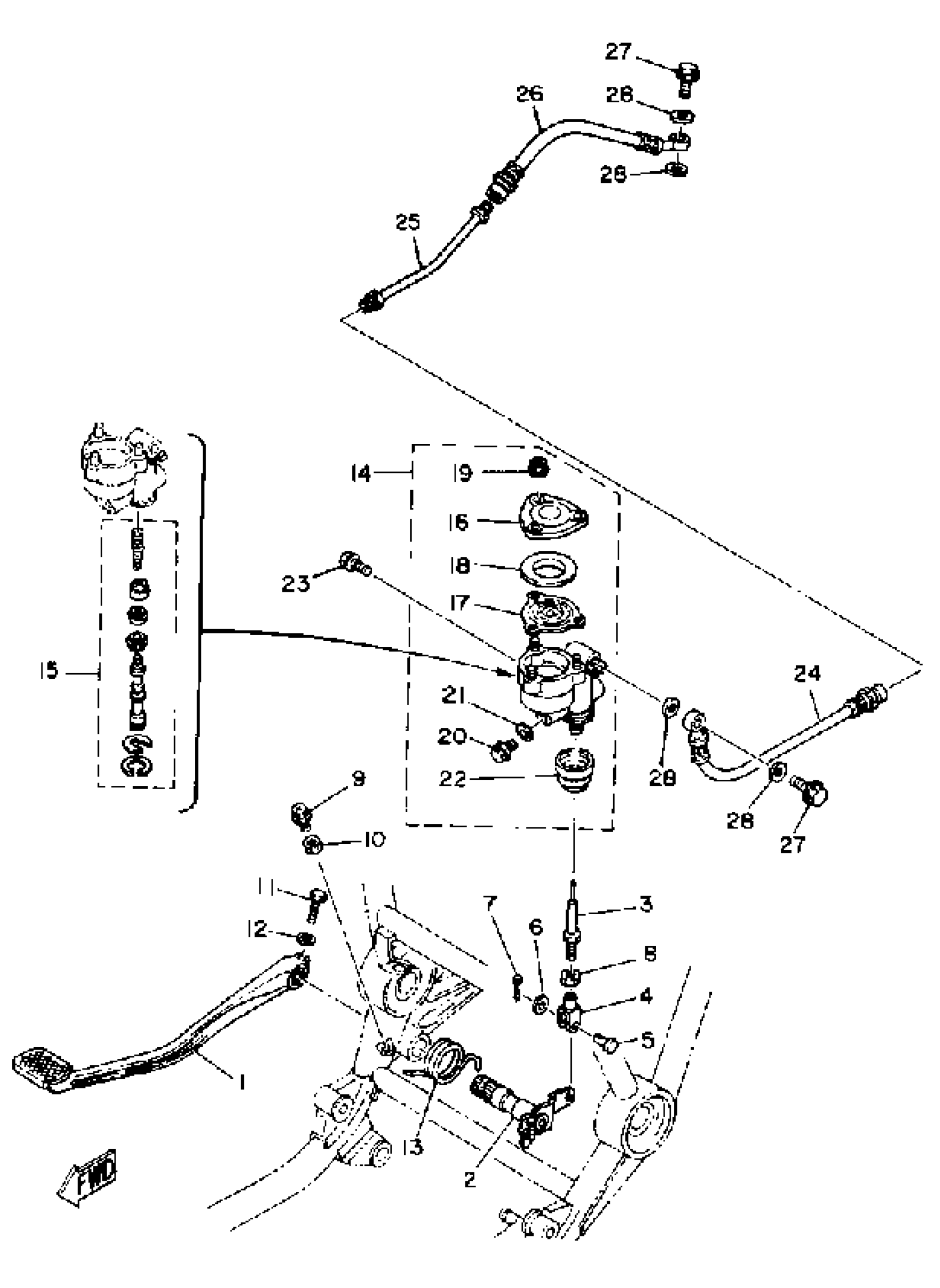

Yamaha XS1100SG (XS1100S) 1980 BRAKE Diagram
#
Description
Price
1
PEDAL, BRAKE
3H3-27211-00-93
Unavailable
2
SHAFT, BRAKE PEDAL
(3H3-27212-00-00)
Unavailable
3
ROD, BRAKE
1A1-27231-01-00
Unavailable
4
JOINT
47X-27222-00-00
Unavailable
7
PIN, COTTER
91490-16020-00
Unavailable
8
. NUT
95380-08700-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
SPRING, TORSION
90508-45396-00
Unavailable
14
MSTR CYLINDER ASSEMBLY
2H7-25850-51-00
Unavailable
15
. CYLINDER KIT, MASTER
2H7-W0042-00-00
Unavailable
16
. CAP, RESERVOIR
1J3-25852-52-00
Unavailable
17
. DIAPHRAGM RESERVOR
1J3-25854-51-00
Unavailable
18
. BUSH, DIAPHRAGM
1J3-25855-51-00
Unavailable
19
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
20
. SCREW, hexagon
90153-10015-00
Unavailable
21
. WASHER, plate
90201-10610-00
Unavailable
22
. BOOT, master cylinder
1J3-25862-51-00
Unavailable
23
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
24
HOSE, BRAKE
2H7-25874-01-00
Unavailable
25
PIPE, BRAKE
2H7-25871-00-00
Unavailable
26
HOSE, BRAKE
2H7-25874-50-00
Unavailable
27
BOLT, UNION(3GM)
90401-10159-00
Unavailable
28
WASHER, PLATE(481)
90201-10118-00
Unavailable
