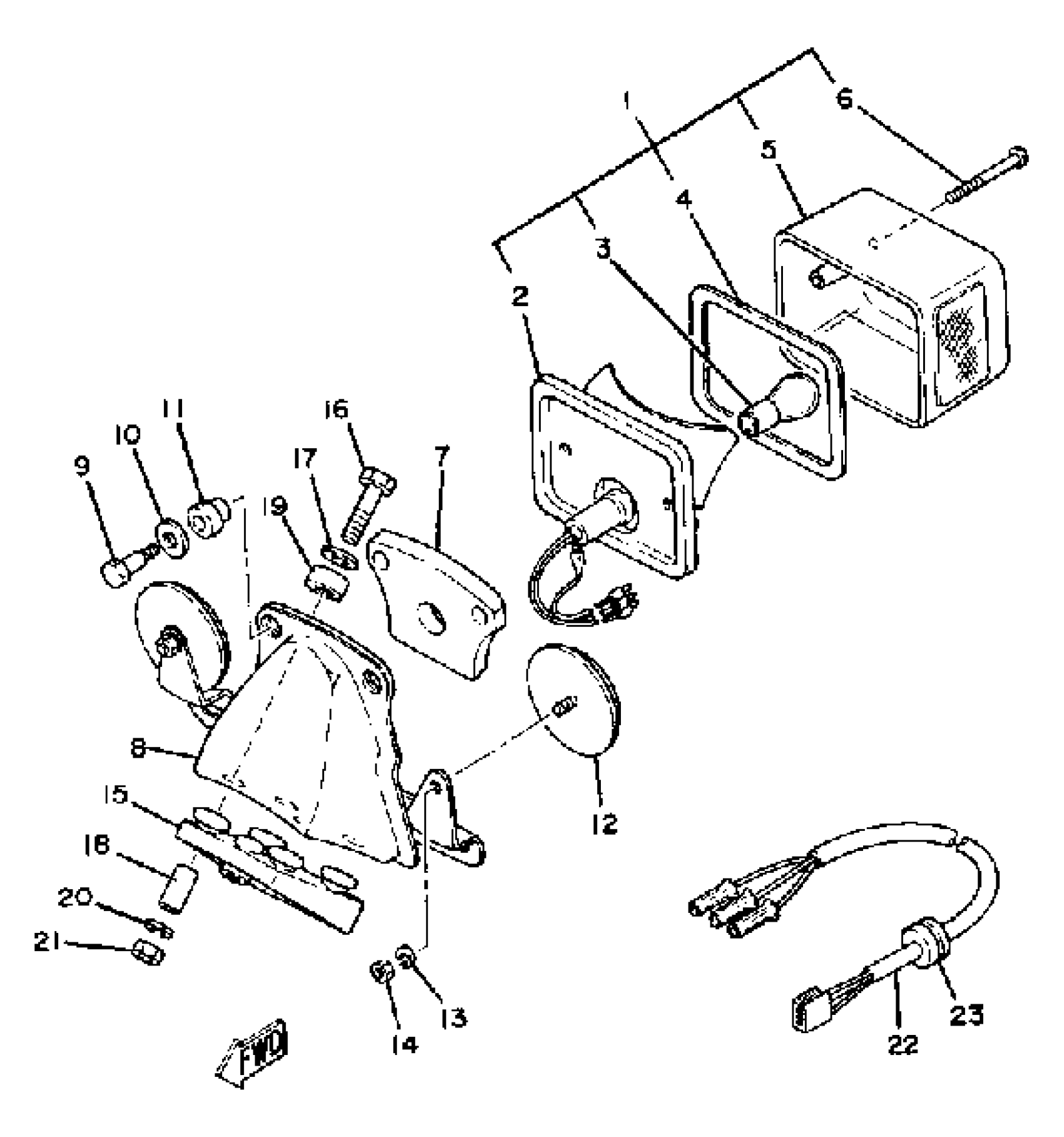

Yamaha XS1100SF (XS1100S) 1979 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$110.99

2

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$110.99

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

GASKET, TAIL LENS

1M1-84523-60-00

$13.49

5

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

6

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

7

SEAT, BASE

1M1-84512-60-00

Unavailable

8

BRACKET, LICENSE

2J2-84751-00-93

Unavailable

9

BOLT 337847520000

90109-06005-00

$7.49

10

WASHER, SPECIAL

2H7-84754-00-00

$10.99

11

DAMPER

1M1-84527-60-00

$8.99

12

REFLECTOR, REAR 1

449-85131-02-00

$30.99

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

NUT, HEXAGON (663)

95380-05600-00

$8.49

15

DAMPER

(3H3-84753-00-00)

Unavailable

16

BOLT(3RV)

97014-06035-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

. COLLAR

90387-06605-00

Unavailable

19

BUSH

90385-10026-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

NUT, HEXAGON

95380-06600-00

Unavailable

22

CORD, TAILLIGHT

3Y3-84517-00-00

Unavailable

23

GROMMET (438)

90480-15061-00

Unavailable
