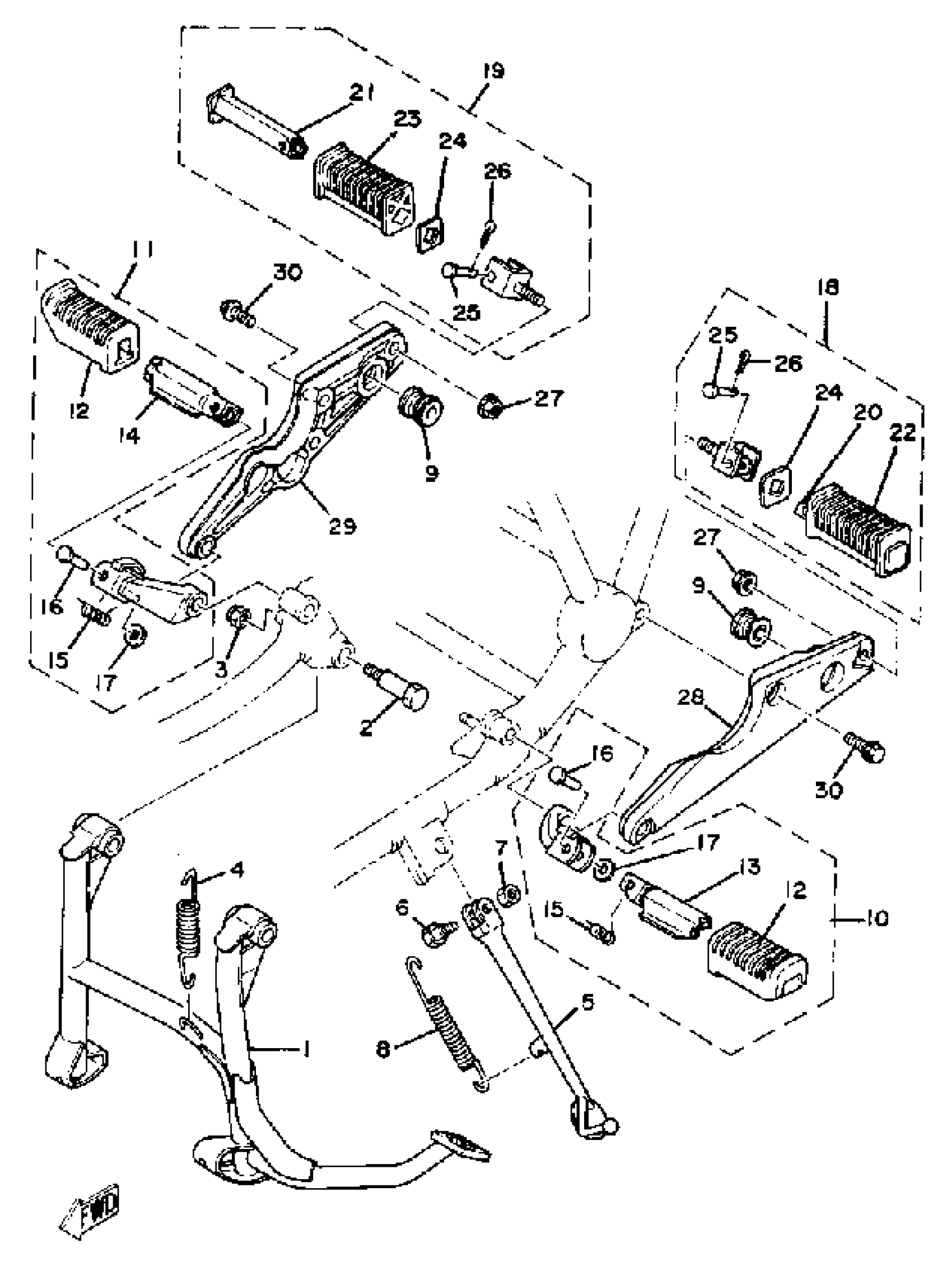

Yamaha XS1100SF (XS1100S) 1979 STAND-FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

3H3-27111-01-00

Unavailable

2

BOLT

90109-10440-00

Unavailable

3

NUT, U

95617-10100-00

$8.49

4

SPRING, TENSION

90506-45199-00

Unavailable

5

STAND, SIDE

(3H3-27311-00-00)

Unavailable

6

BOLT

90109-10473-00

$8.49

7

NUT (682)

95380-10700-00

Unavailable

8

SPRING, TENSION (1J7)

90506-28146-00

$17.99

9

DAMPER, FOOTREST

3H3-27414-00-00

Unavailable

10

FRT FOOTREST ASSEMBLY L

3H3-27410-00-00

Unavailable

11

FRT FOOTREST ASSEMBLY R

3H3-27420-00-00

Unavailable

12

COVER, FOOTREST

4L0-27423-00-00

$49.99

13

FOOTREST

3CK-27451-00-00

Unavailable

14

FOOTREST

3N6-27461-00-00

Unavailable

15

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

16

PIN (214-27418-00)

90243-08006-00

Unavailable

17

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

18

RR FOOTREST ASSEMBLY 1

2H7-27430-00-00

Unavailable

19

RR FOOTREST ASSEMBLY 2

2H7-27440-00-00

Unavailable

20

FOOTREST, REAR 1

447-27431-00-00

Unavailable

21

FOOTREST, REAR 2

447-27441-00-00

Unavailable

22

. COVER, RR FOOTREST

1J7-27433-00-00

Unavailable

23

. COVER, RR FOOTREST

1J7-27444-00-00

Unavailable

24

WASHER 447274370000

90209-18070-00

Unavailable

25

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

26

PIN, COTTER

91490-16020-00

Unavailable

27

NUT(4KG)

90179-10658-00

Unavailable

28

BRACKET 2

3H3-27442-01-00

Unavailable

29

BRACKET 3

3H3-27443-01-00

Unavailable

30

BOLT, WASHER BASED (2H9)

90105-10115-00

Unavailable
