Description

Price

1

DOUBLE SEAT ASSEMBLY

(3H3-W2472-00-00)

Unavailable

2

COVER, DOUBLE SEAT

(3H3-24731-01-00)

Unavailable

3

PAD, SEAT

1T4-24741-00-00

Unavailable

4

PAD, SEAT

1L9-24741-00-00

$8.31

5

DAMPER, SEAT

2H7-24723-00-00

Unavailable

6

BRACKET, SEAT

2H7-24738-00-00

Unavailable

7

COLLAR (1M1)

90387-06553-00

$6.65

8

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

9

WASHER, SPRING

92995-06100-00

$2.95

10

NUT, HEXAGON

95380-06600-00

$4.11

11

EMBLEM

25G-24786-00-00

Unavailable

12

NUT, SPRING (1L9)

90183-04012-00

$5.53

13

DAMPER, SEAT

2H7-24724-00-00

Unavailable

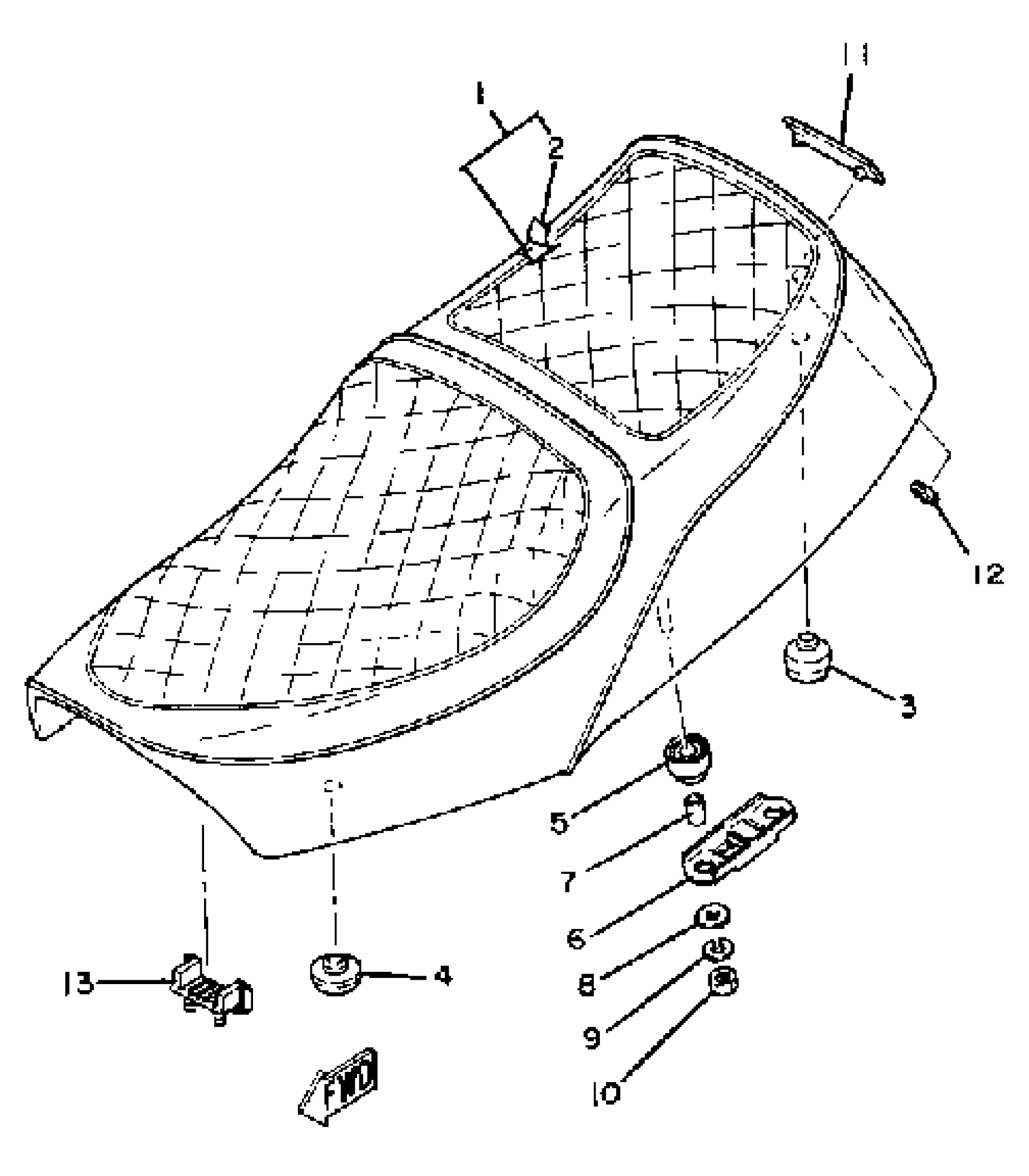

Yamaha XS1100SF (XS1100S) 1979 SEAT Diagram

DOUBLE SEAT ASSEMBLY

COVER, DOUBLE SEAT

PAD, SEAT

PAD, SEAT

DAMPER, SEAT

BRACKET, SEAT

COLLAR (1M1)

WASHER, PLATE(36Y)

WASHER, SPRING

NUT, HEXAGON

EMBLEM

NUT, SPRING (1L9)

DAMPER, SEAT
