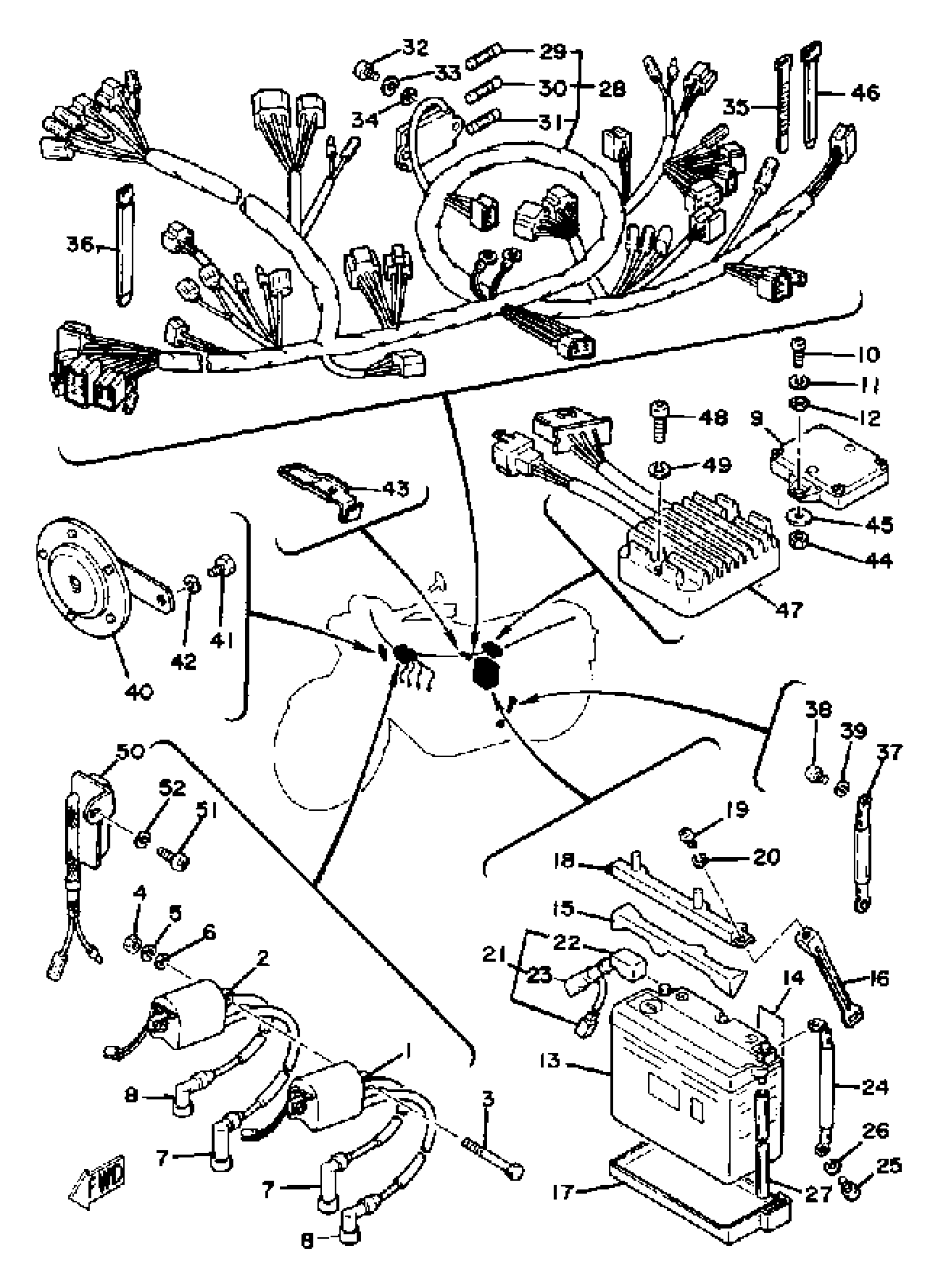

Yamaha XS1100SF (XS1100S) 1979 IGNITION COIL - BATTERY - HORN - WIRE HARNESS Diagram

#

Description
Price

1

IGNITION COIL ASSEMBLY

2H7-82310-60-00

Unavailable

2

IGNITION COIL ASSEMBLY

2H7-82320-60-00

Unavailable

3

BOLT (36E)

97023-06085-00

Unavailable

4

NUT, HEXAGON

95380-06600-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

7

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

8

PLUG CAP ASSY

4BP-82370-01-00

$35.99

8

PLUG CAP ASSEMBLY

2H8-82370-10-00

Unavailable

9

IGNITOR UNIT ASSEMBLY 1

2H7-82305-10-00

Unavailable

10

SCREW PAN HEAD

98580-06020-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

SY50N18LAT YUASA BATTERY

SY5-0N18L-A0-00

Unavailable

14

LABEL, BATTERY

40A-82141-G0-00

Unavailable

15

PAD, BATTERY

2H7-82121-00-00

Unavailable

16

BAND, BATTERY

2H7-82124-00-00

Unavailable

17

SEAT, BATTERY

2H7-82122-01-00

Unavailable

18

PLATE, BATT FITTING

(2H7-82136-00-00)

Unavailable

19

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WIRE, PLUS LEAD

2H7-82115-00-00

Unavailable

22

COVER, LEAD WIRE

(1J7-82119-00-00)

Unavailable

23

. COVER, LEAD WIRE

2H7-82119-00-00

Unavailable

24

WIRE,MINUS LEAD

2H7-82116-00-00

Unavailable

25

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

HOSE (L1500)

90445-084J0-00

Unavailable

28

WIRE HARNESS ASSEMBLY

(3H3-82590-50-00)

Unavailable

29

FUSE

1A0-82161-00-00

Unavailable

30

FUSE

1A0-82151-00-00

Unavailable

31

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

32

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

33

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

34

WASHER, PLAIN (646)

92990-05600-00

Unavailable

35

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

36

BAND

341-26397-01-00

Unavailable

37

WIRE, EARTH LEAD

2H7-82519-00-00

Unavailable

38

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

HORN

1J7-83371-22-00

Unavailable

41

BOLT, HEXAGON

97017-08016-00

Unavailable

42

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

CLAMP

(90465-10133-00)

Unavailable

44

NUT, HEXAGON

95380-06600-00

Unavailable

45

WASHER, PLATE

90201-06095-00

Unavailable

46

BAND, SWITCH CORD

437-83936-11-00

Unavailable

47

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

Unavailable

48

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

49

WASHER, SPRING

92995-06100-00

Unavailable

50

RESISTOR ASSEMBLY

2H7-85370-01-00

Unavailable

51

SCREW, PAN

98517-06012-00

Unavailable

52

WASHER, SPRING

92995-06100-00

Unavailable
