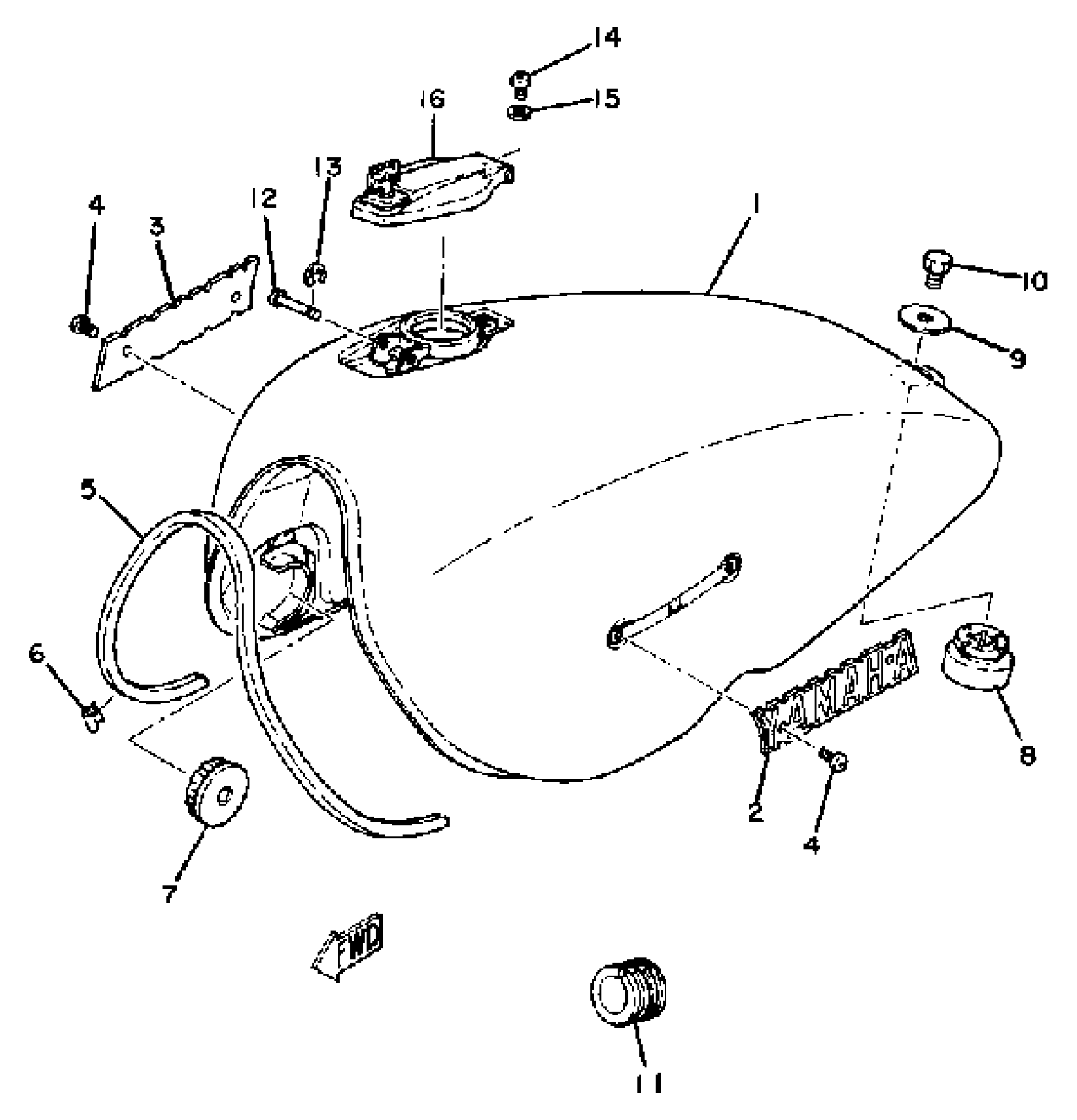

Yamaha XS1100SF (XS1100S) 1979 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(3H3-24110-00-E9)

Unavailable

1

FUEL TANK

(3H3-24110-00-H9)

Unavailable

2

EMBLEM 1

3H3-24161-00-00

Unavailable

3

EMBLEM 2

(3H3-24162-00-00)

Unavailable

4

SCREW (2F0)

90152-04006-00

$0.17

5

PLATE, MOLD

3EB-24189-00-00

Unavailable

6

CLIP

90468-03063-00

Unavailable

7

DAMPER, LOCATING 1

1J7-24181-01-00

Unavailable

8

DAMPER, LOCATING 2

2H7-24182-00-00

Unavailable

9

WASHER 1902345600

90201-08310-00

$5.98

10

BOLT(62E)

97013-08012-00

Unavailable

11

DAMPER, TANK LOCATING 3

1J7-24183-02-00

Unavailable

12

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

13

CIRCLIP (604)

93430-02001-00

$6.23

14

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

CAP ASSY

4R0-24602-01-00

Unavailable
