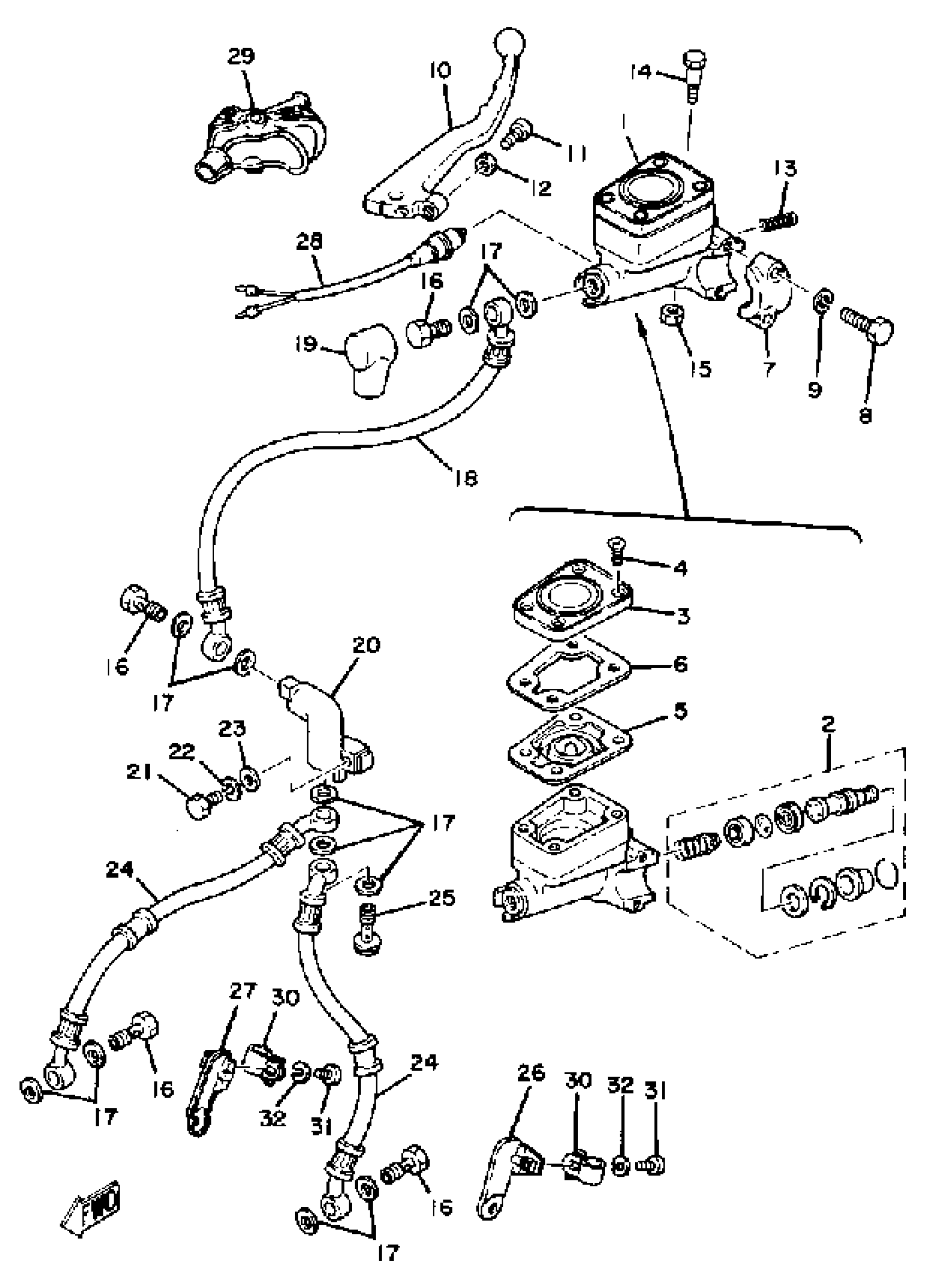

Yamaha XS1100SF (XS1100S) 1979 FRONT MASTER CYLINDER-BRAKE HOSE Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

2G2-25850-01-00

Unavailable

2

CYLINDER KIT, MASTER (DOUBLE)

1J3-W0041-20-00

Unavailable

3

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

4

. SCREW

2G2-25857-00-00

Unavailable

5

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

$40.99

6

. GASKET

1J3-25855-01-00

Unavailable

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

BOLT

90101-06M27-00

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

LEVER 2

4L0-83922-00-00

$46.99

11

SCREW (2L0)

90149-06131-00

$8.49

12

NUT HEXAGON 306839270000

90170-06010-00

$8.49

13

SPRING, COMPRESSION (2H7)

90501-10510-00

Unavailable

14

BOLT (4L0)

90109-06577-00

$5.60

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

BOLT, UNION(3GM)

90401-10159-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

HOSE, BRAKE 1

2G2-25872-01-00

Unavailable

19

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

20

JOINT

1J7-25885-01-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

HOSE, BRAKE 2

3H3-25873-00-00

Unavailable

25

BOLT, UNION

90401-10038-00

Unavailable

26

HOLDER, BRKE HOSE 1

2H7-25875-00-00

Unavailable

27

HOLDER, BRKE HOSE 2

2H7-25876-00-00

Unavailable

28

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

29

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

Unavailable

30

CLAMP 1

90461-08031-00

Unavailable

31

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable
