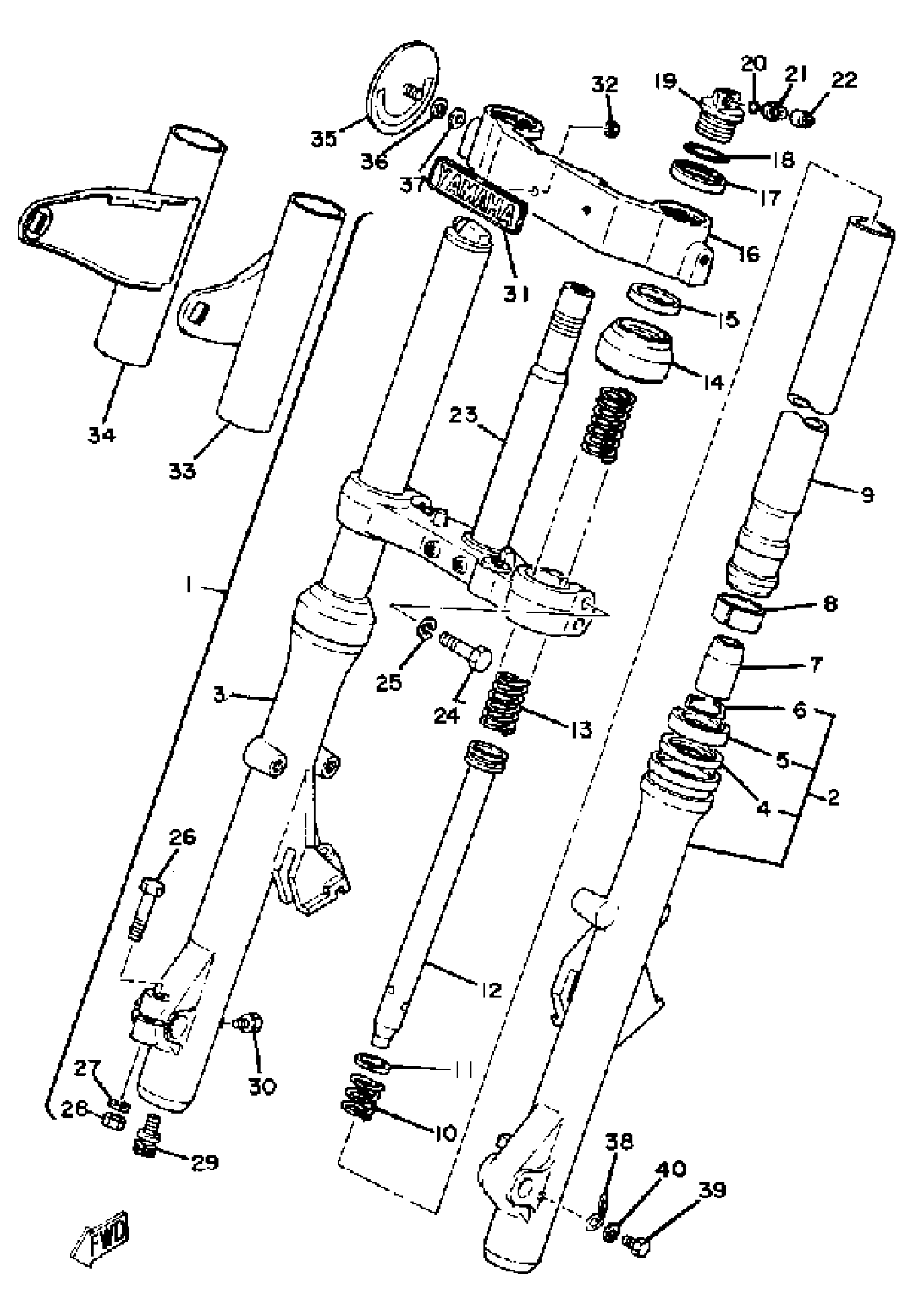

Yamaha XS1100SF (XS1100S) 1979 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3H3-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(3J6-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(3J6-23136-00-00)

Unavailable

4

.. WASHER, OIL SEAL

3H3-23146-00-00

Unavailable

5

.. OIL SEAL

3J6-23145-00-00

Unavailable

6

CLIP, OIL SEAL

34X-23156-00-00

$8.99

7

. SPACER, OIL LOCK

(1J3-23166-00-00)

Unavailable

8

. METAL, SLIDE 2

3H3-23135-00-00

Unavailable

9

. INNER TUBE 1

5K7-23110-00-00

Unavailable

10

. SPRING, REBOUND

1J3-23151-00-00

Unavailable

11

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

Unavailable

12

. CYLINDER, FRTFRK

3H3-23170-00-00

Unavailable

13

SPRING, FRONT FORK

(3H3-23141-00-00)

Unavailable

14

. SEAL, DUST

10M-23144-00-00

Unavailable

15

. GASKET

3H3-23163-00-00

Unavailable

16

. COVER, OUTER 1

3H3-23122-00-00

Unavailable

17

. GUIDE, COVER UPPER

3H3-23115-00-00

Unavailable

18

. GASKET

3H3-23114-00-00

Unavailable

19

. BOLT, CAP

3H3-23111-00-00

Unavailable

20

O-RING (26H)

93210-06632-00

Unavailable

21

. AIR VALVE

5K7-23190-00-00

Unavailable

22

. CAP, AIR VALVE

27H-23184-00-00

Unavailable

23

. UNDER BRACKET

5K7-23340-00-90

Unavailable

24

BOLT

97014-08040-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

26

BOLT(3HN)

97017-08045-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

NUT(6L2)

95333-08600-00

Unavailable

29

BOLT

3M7-23181-00-00

Unavailable

30

PLUG, DRAIN

2A6-23119-00-00

Unavailable

31

. EMBLEM

2M0-23395-00-00

Unavailable

32

NUT, SPRING (1L9)

90183-04012-00

Unavailable

33

COVER, UPPER 1

(3H3-23121-00-93)

Unavailable

34

COVER, UPPER 2

3H3-23131-00-93

Unavailable

35

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

36

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

37

. WASHER, PLAIN

92990-05200-00

Unavailable

38

HOLDER, CABLE 1

4H3-23318-00-00

Unavailable

39

BOLT (661)

97013-06012-00

Unavailable

40

SPRING, FRONT FORK

2H7-23141-10-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable
