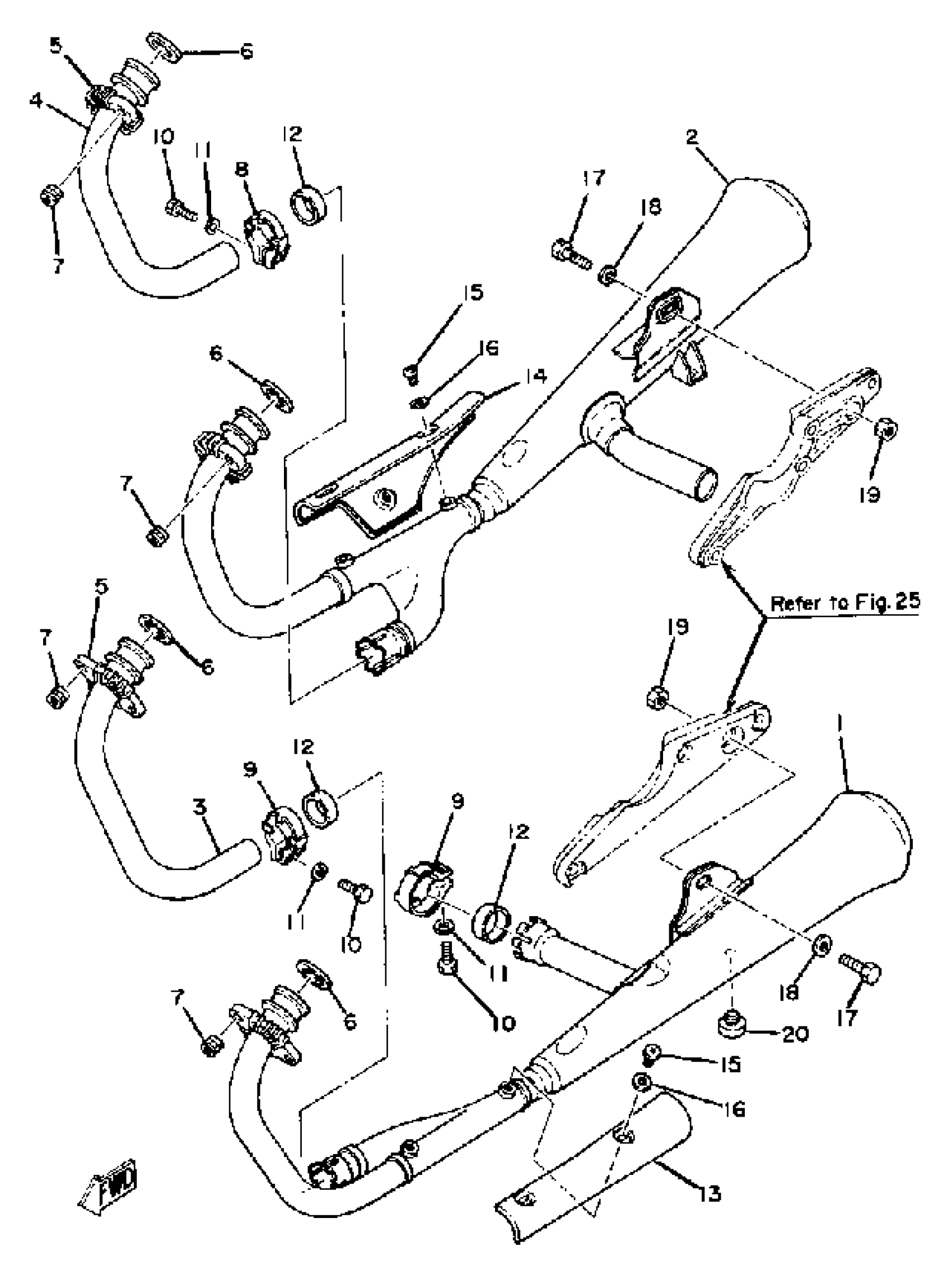

Yamaha XS1100SF (XS1100S) 1979 EXHAUST Diagram
#
Description
Price
1
MUFFLER (LH) 3H3
99999-01231-00
Unavailable
2
MUFFLER (RH) 3H3
99999-01232-00
Unavailable
3
PIPE, EXHAUST R
2H7-14621-02-00
Unavailable
4
PIPE, EXHAUST 3
2H7-14631-02-00
Unavailable
5
NUT, RING
2H7-14612-00-00
Unavailable
8
BAND, silencer 4
26H-14796-00-00
Unavailable
9
BAND, silence 4
26H-14797-00-00
Unavailable
11
.. WASHER, PLATE
92990-08600-00
Unavailable
13
PROTECTOR, MUFF 1
3H3-14718-00-00
Unavailable
14
PROTECTER, MUFF 2
3H3-14728-00-00
Unavailable
16
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
17
BOLT, FLANGE
95814-10040-00
Unavailable
18
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
19
NUT, SPEC''L SHAPE
90179-10276-00
Unavailable
20
STOPPER, MAIN STAND
371-27114-00-00
Unavailable
