- XS1100SF (XS1100S) 1979
CARBURETOR

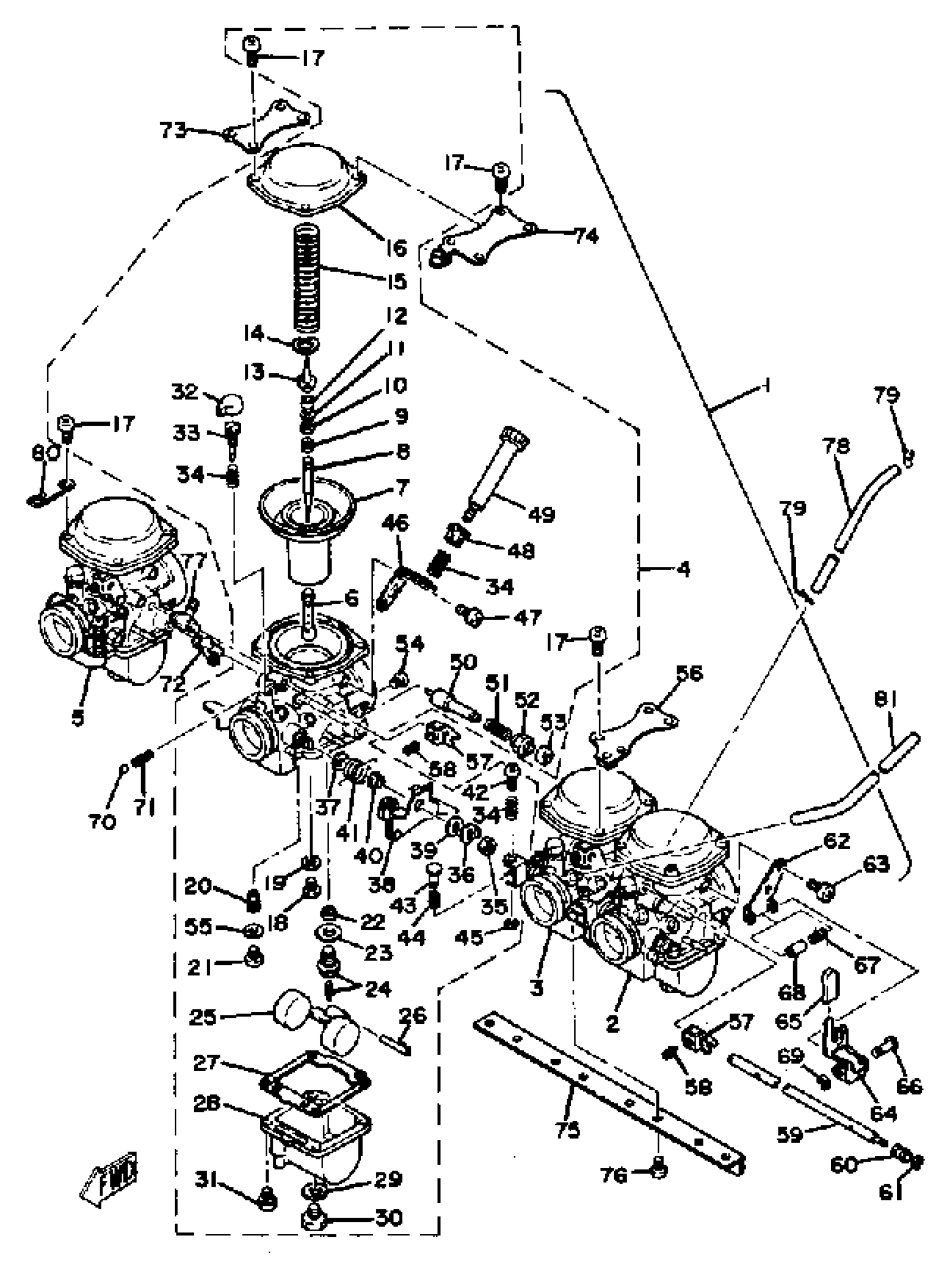

Yamaha XS1100SF (XS1100S) 1979 CARBURETOR Diagram
#
1
NO LONGER AVAILABLE
4H3-18101-00-00
Unavailable
2
CARBURETOR ASSEMBLY 1
(3H3-14901-00-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(3H3-14902-00-00)
Unavailable
4
CARBURETOR ASSEMBLY 3
(3H3-14903-00-00)
Unavailable
5
CARBURETOR ASSEMBLY 4
(3H3-14904-00-00)
Unavailable
6
.. NOZZLE, MAIN
2H7-14941-02-00
Unavailable
6
NOZZLE, MAIN
(3H3-14941-02-00)
Unavailable
7
.. DIAPHRAGM ASSEMBLY
2F3-14940-00-00
Unavailable
8
.. NEEDLE
2H7-14116-06-00
Unavailable
9
.. SPRING
2F0-14589-00-00
Unavailable
10
.. WASHER
2F3-14952-00-00
Unavailable
12
.. RING
2F0-14918-00-00
Unavailable
13
PLATE, NEEDLE FTNG
(2F3-14946-00-00)
Unavailable
14
.. CLIP
2F0-14919-00-00
Unavailable
15
SPRING, DIAPHRAGM
(2H7-14933-00-00)
Unavailable
16
COVER, DIAPHRAGM
(2A2-14958-00-00)
Unavailable
16
COVER, DIAPHRAGM
(2H7-14958-00-00)
Unavailable
17
SCREW, PAN HEAD(3YL)
98580-05014-00
Unavailable
18
.. JET, MAIN #1375
620-1423A-78-A0
Unavailable
19
WASHER,MAIN JET
137-14153-00-00
Unavailable
20
.. JET, PILOT #425
256-14142-42-A0
Unavailable
21
.. SCREW
2F1-14991-00-00
Unavailable
22
NET, FILTER
1J7-14994-00-00
Unavailable
23
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
24
VALVE SEAT ASSY
1J7-14190-20-00
Unavailable
25
FLOAT
2A2-14985-01-00
Unavailable
26
PIN, FLOAT
537-14186-00-00
Unavailable
27
GASKET, FLOAT CHAMBER
2A2-14984-01-00
Unavailable
28
BODY, FLOAT CHAMBER
(2A2-14981-32-00)
Unavailable
28
BODY, FLOAT CHAMBER
(2G2-14981-32-00)
Unavailable
28
BODY, FLOAT CHAMBER
(2H7-14981-32-00)
Unavailable
29
WASHER
256-14956-01-00
Unavailable
30
. SCREW
1A8-14991-00-00
Unavailable
31
SCREW, PN/HD.W/WSHR
(97601-05114-00)
Unavailable
32
CAP
8A7-14969-00-00
Unavailable
34
.. SPRING, THROTTLE STOP
256-14934-01-00
Unavailable
35
. NUT
95380-08700-00
Unavailable
36
.. WASHER
256-14953-00-00
Unavailable
37
SEAL
2A2-14997-00-00
Unavailable
38
LEVER, THROTTLE
(2H7-14913-01-00)
Unavailable
38
LEVER, THROTTLE 4
(2H7-14963-00-00)
Unavailable
38
LEVER, THROTTLE 2
(2H7-14964-00-00)
Unavailable
39
VALVE, THROTTLE
(306-14970-00-00)
Unavailable
40
RING
(2H7-14918-00-00)
Unavailable
41
SPRING, THROTTLE LEVER
(2H7-14931-00-00)
Unavailable
41
SPRING, THRTL 2
(2H7-14932-00-00)
Unavailable
41
SPRING, THRTL LEVER
(2H9-14931-00-00)
Unavailable
42
.. SCREW, THROTTLE STOP
256-14922-01-00
Unavailable
43
ROD
(2H7-14992-00-00)
Unavailable
44
SPRING, THROTTLE STOP
(584-14934-00-00)
Unavailable
45
CLIP
(2H7-14937-00-00)
Unavailable
46
PLATE
(2F3-14243-00-00)
Unavailable
47
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
48
.. BUSH
1J7-14998-00-00
Unavailable
49
SCREW, THROTTLE
(2H7-14922-00-00)
Unavailable
50
.. PLUNGER, STARTER
2A2-14171-00-00
Unavailable
51
. SPRING, PLUNGER
256-14135-00-00
Unavailable
52
.. CAP, PLUNGER
2A2-14174-00-00
Unavailable
53
.. COVER, PLUNGER CAP
2A2-14173-00-00
Unavailable
54
.. PILOT JET, AIR #180
2A2-14172-36-00
Unavailable
55
.. WASHER, PLUG SCREW
584-14956-00-00
Unavailable
56
BRACKET, THROTTLE 1
(3H3-14926-00-00)
Unavailable
57
LEVER, STARTER
(2A2-14905-00-00)
Unavailable
58
. SCREW
11V-14991-00-00
Unavailable
59
SHAFT, STARTER LEVER
(2H7-14978-00-00)
Unavailable
60
. BUSH
2H7-14998-00-00
Unavailable
61
. CLIP
737-14137-00-00
Unavailable
62
. BRACKET
3H3-14995-00-00
Unavailable
63
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
64
. LEVER, STARTER 1
3H3-14975-00-00
Unavailable
65
. CAP
2F3-14968-00-00
Unavailable
66
. PIN, FLOAT
2F3-14386-00-00
Unavailable
67
. SPRING
2F3-14938-00-00
Unavailable
68
PIPE
(2F3-14996-00-00)
Unavailable
69
. CLIP
2F3-14919-00-00
Unavailable
70
BALL
93501-08001-00
Unavailable
71
SPRING
583-14589-00-00
Unavailable
72
. PIPE, STARTER CON
3H3-14988-00-00
Unavailable
73
PLATE
(2H7-14243-00-00)
Unavailable
74
BRACKET, THROTTLE 1
(2H7-14926-01-00)
Unavailable
75
PLATE
(2H7-14146-00-00)
Unavailable
76
SCREW, PAN
98507-06014-00
Unavailable
77
. PIPE, STARTER CON
2H7-14988-00-00
Unavailable
78
HOSE
90445-10365-00
Unavailable
79
CLIP
90467-090A2-00
Unavailable
80
CLIP
(90468-20072-00)
Unavailable
81
HOSE (L400)
90445-082A9-00
Unavailable
