Description

Price

1

GEAR, IDLER 1

2H7-15512-00-00

Unavailable

2

SHAFT 1

(2H7-15521-00-00)

Unavailable

3

CIRCLIP(24H)

99009-17500-00

$7.49

4

GEAR, IDLER 2

2H7-15517-00-00

Unavailable

5

SPACER

90560-25174-00

Unavailable

6

STR CLUTCH OTR ASSEMBLY

2H7-15580-01-00

Unavailable

7

PIN, DOWEL (1J7)

93615-17125-00

$16.99

8

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

9

SPRING, COMPRESSION (2H7)

90501-04503-00

$9.49

10

GEAR, DRIVEN

2H7-11537-00-00

Unavailable

11

PLATE, CLUTCH COVER

(2H7-15589-00-00)

Unavailable

12

WASHER, SPEC''L SHAP

90209-25169-00

Unavailable

13

BOLT, SOCKET HEAD

91316-08018-00

Unavailable

14

HOLDER, KICK GEAR

2H7-15654-00-00

Unavailable

15

BOLT, HEXAGON

97017-06020-00

$4.06

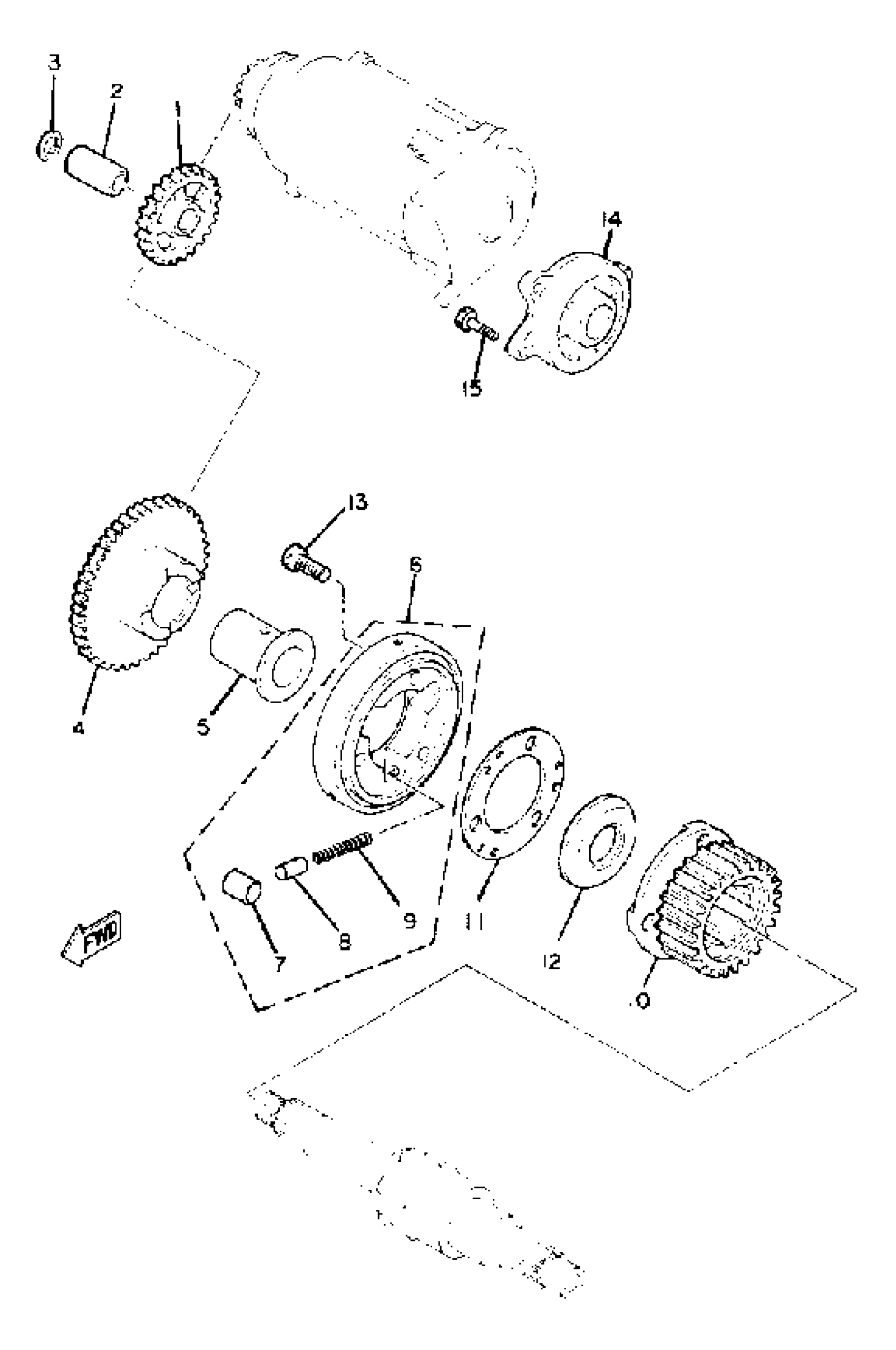

Yamaha XS1100LH (XS1100L) 1981 STARTER CLUTCH Diagram

GEAR, IDLER 1

SHAFT 1

CIRCLIP(24H)

GEAR, IDLER 2

SPACER

STR CLUTCH OTR ASSEMBLY

PIN, DOWEL (1J7)

CAP, STARTER CLUTCH

SPRING, COMPRESSION (2H7)

GEAR, DRIVEN

PLATE, CLUTCH COVER

WASHER, SPEC''L SHAP

BOLT, SOCKET HEAD

HOLDER, KICK GEAR

BOLT, HEXAGON
