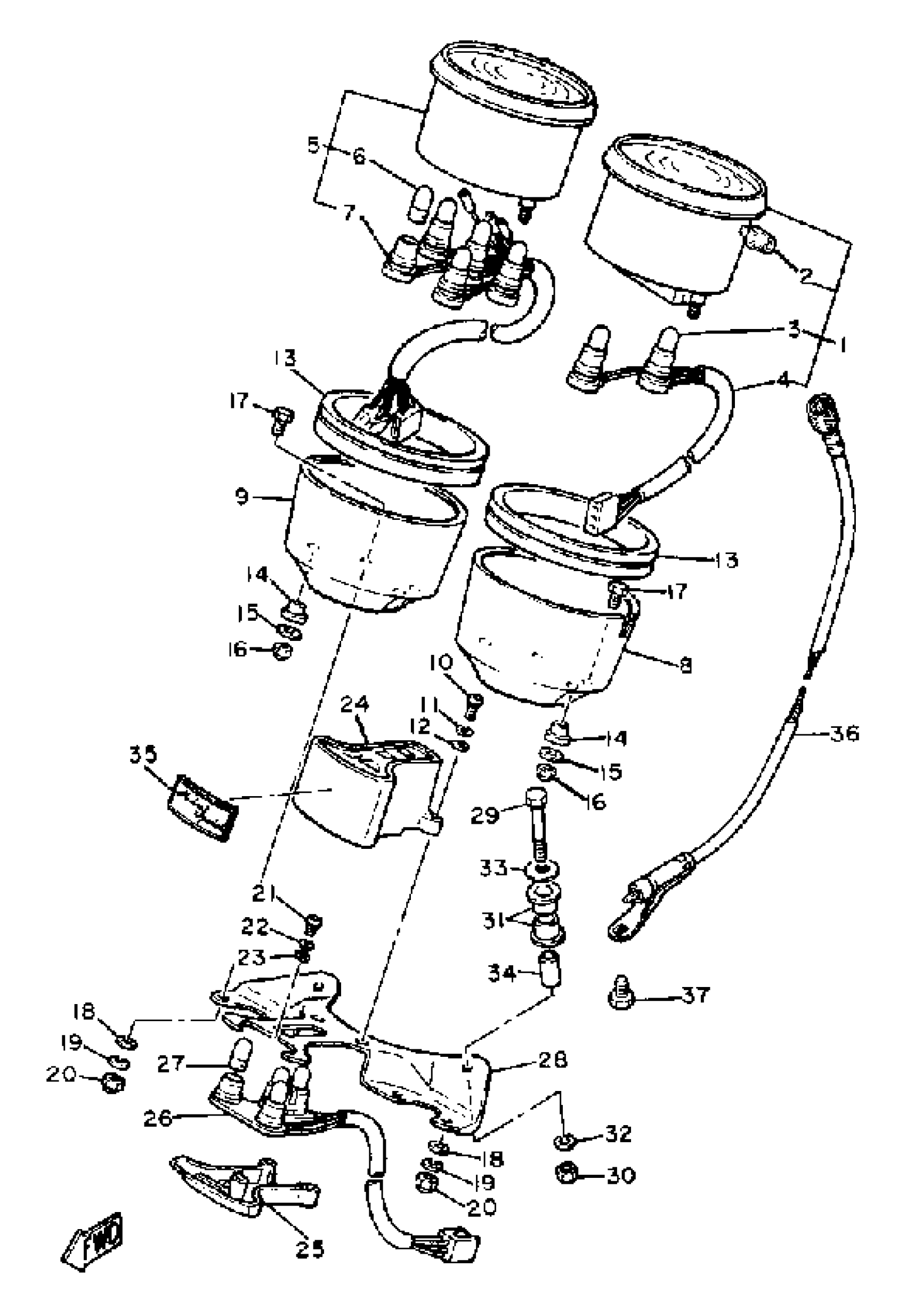

Yamaha XS1100LH (XS1100L) 1981 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

5H1-83570-A0-00

Unavailable

2

KNOB, TRIP METER

4SV-83578-00-00

$18.49

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

4

. SOCKET CORD ASSEMBLY (15R-83520-00)

4U8-83520-00-00

Unavailable

5

TACHOMETER ASSEMBLY

(3H4-83540-F1-00)

Unavailable

6

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

7

SOCKET CORD ASSEMBLY

(3H3-83520-01-00)

Unavailable

7

COVER, SPEEDOMETER

4H1-83507-00-00

Unavailable

9

COVER, TACHOMETER

4H3-83508-00-00

Unavailable

10

SCREW, PAN HEAD

98517-04012-00

$3.88

11

WASHER(6TA)

92907-04100-00

$8.49

12

WASHER(JF2)

92907-04600-00

$1.71

13

DAMPER

3H3-83513-00-00

$44.99

14

DAMPER, METER COVER FITTING

584-83523-00-00

$9.99

15

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

16

NUT, CAP

95307-05800-00

Unavailable

17

BOLT

584-83546-00-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

NUT (J17)

95380-06800-00

Unavailable

21

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

22

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

23

WASHER, PLAIN (646)

92990-04600-00

Unavailable

24

PILOT BOX, UPPER

3J6-83568-A0-00

Unavailable

25

PILOT BOX, LOWER

3J6-83569-A0-00

Unavailable

26

SOCKET CORD ASSEMBLY

3J6-83509-01-00

Unavailable

27

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

28

BRACKET, METER

3J6-83519-00-00

Unavailable

29

BOLT(8BC)

97017-06040-00

Unavailable

30

NUT, HEXAGON

95380-06600-00

Unavailable

31

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

WASHER, PLATE

90201-06380-00

Unavailable

34

COLLAR (877)

90387-06249-00

Unavailable

35

EMBLEM 7

4H3-21787-00-00

Unavailable

36

SPEEDOMETER CABLE

10M-83550-00-00

Unavailable

37

SCREW, HEXAGON

90153-06004-00

Unavailable
