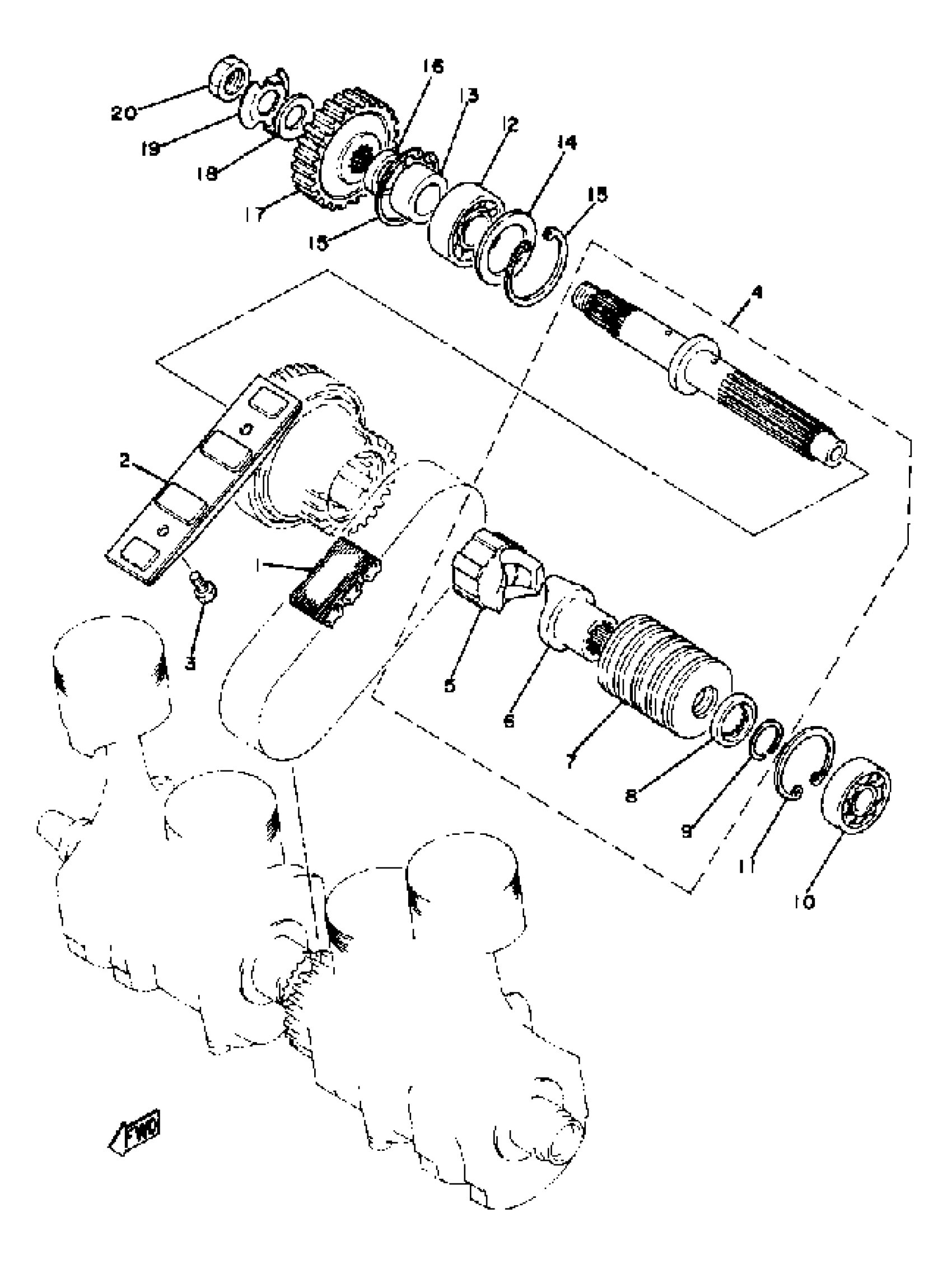

Yamaha XS1100LH (XS1100L) 1981 PRIMARY SHAFT CHAIN Diagram

#

Description
Price

1

CHAIN, PRIMARY

2H7-16139-02-00

Unavailable

2

GUIDE, UPPER

2H7-11474-00-00

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

4

CLUTCH DAMPER ASSEMBLY

(2H7-16306-00-00)

Unavailable

5

. CAM, DAMPER 1

2H7-16317-00-00

Unavailable

6

. CAM, DAMPER 2

2H7-16315-00-00

Unavailable

7

. SPRING, DAMPER

2H7-16318-00-00

Unavailable

8

. SPACER

2H7-11485-00-00

Unavailable

9

CIRCLIP

93440-25020-00

$9.49

10

BEARING (22K)

93306-20446-00

$41.99

11

CIRCLIP(48Y)

99009-47500-00

$9.49

12

BEARING

93304-20504-00

Unavailable

13

COLLAR

90387-443A8-00

Unavailable

14

WASHER, PLATE

90201-36667-00

Unavailable

15

CIRCLIP(26H)

99009-52500-00

$12.49

16

COLLAR

90387-250V1-00

Unavailable

17

GEAR, PRI DRIVE

2H7-16111-01-00

Unavailable

18

WASHER, CONICAL SPRING

90208-18025-00

Unavailable

19

WASHER, LOCK

90215-19139-00

Unavailable

20

NUT, HEXAGON (2H7)

90170-18221-00

Unavailable
