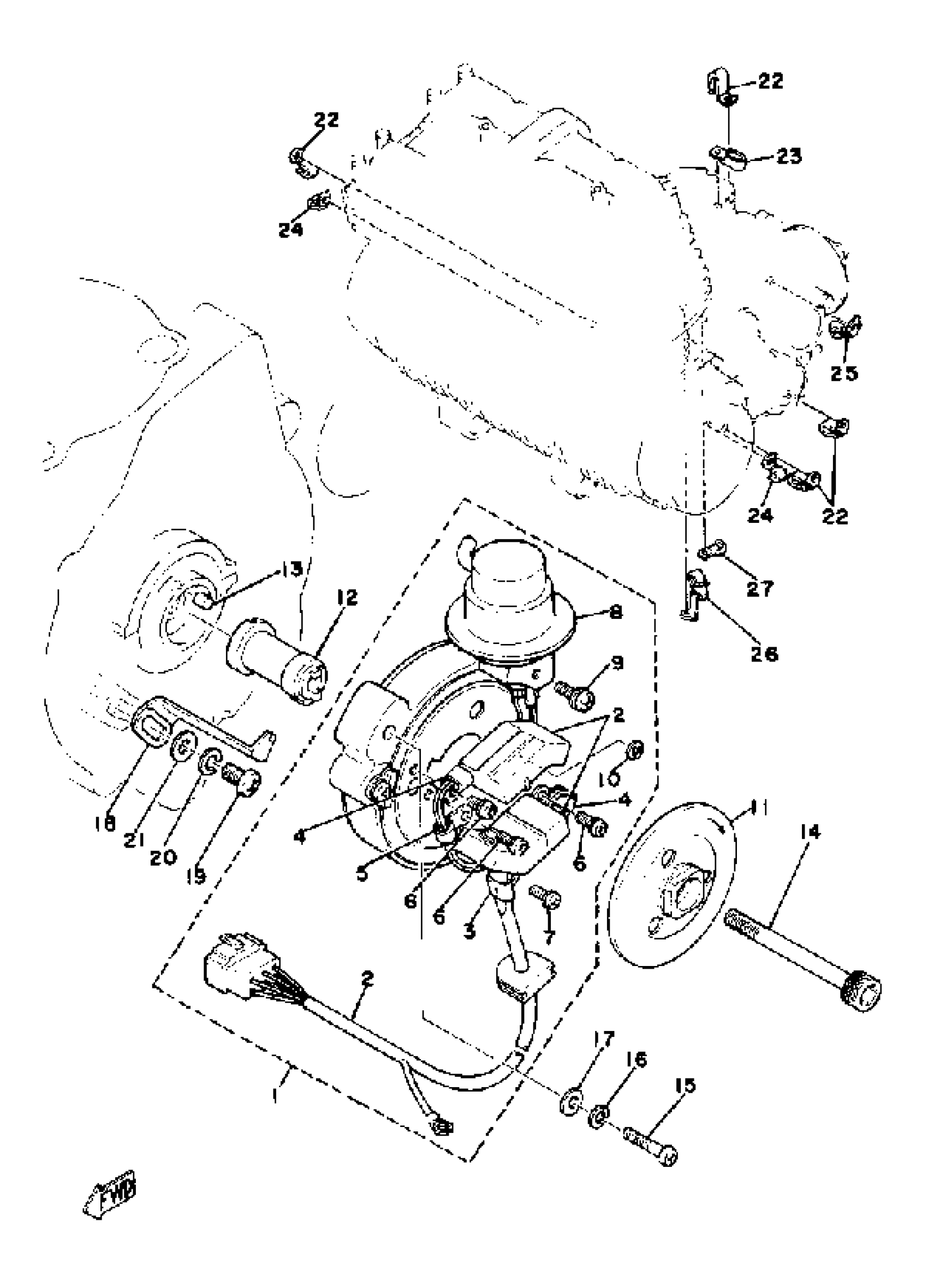

Yamaha XS1100LH (XS1100L) 1981 PICKUP COIL GOVERNOR Diagram

#

Description

Price

1

BASE, PICKUP

(4R0-81671-10-00)

Unavailable

2

. PULSER COIL ASSEMBLY

2H7-81676-10-00

Unavailable

3

CLAMP 1

(2H7-81677-10-00)

Unavailable

4

CLAMP 2

(2H7-81678-10-00)

Unavailable

5

CLAMP 3

(2H7-81679-10-00)

Unavailable

6

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

7

SCREW 2

(2H7-81646-10-00)

Unavailable

8

. DIAPHRAGM ASSEMBLY

3H5-81683-10-00

Unavailable

9

SCREW 3

(2H7-81647-10-00)

Unavailable

10

WASHER, SPECIAL

(2H7-81675-10-00)

Unavailable

11

PLATE, TIMING 2

4R0-81672-10-00

Unavailable

12

ROTOR

(4R0-81673-10-00)

Unavailable

13

PIN, DOWEL (278)

93604-08071-00

$8.49

14

BOLT, HEXAGON SOCKET HEAD(XA1)

90110-08235-00

Unavailable

15

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

WASHER, PLATE

90201-06M08-00

Unavailable

18

PLATE, TIMING

2H7-81632-01-00

Unavailable

19

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

CLAMP(4MX)

90465-06376-00

Unavailable

23

CLAMP

(90465-10164-00)

Unavailable

24

CLAMP(51Y)

90465-08277-00

Unavailable

25

HOLDER

(4H1-15118-00-00)

Unavailable

26

CLAMP

90465-08135-00

Unavailable

27

CLAMP

(90465-08136-00)

Unavailable
