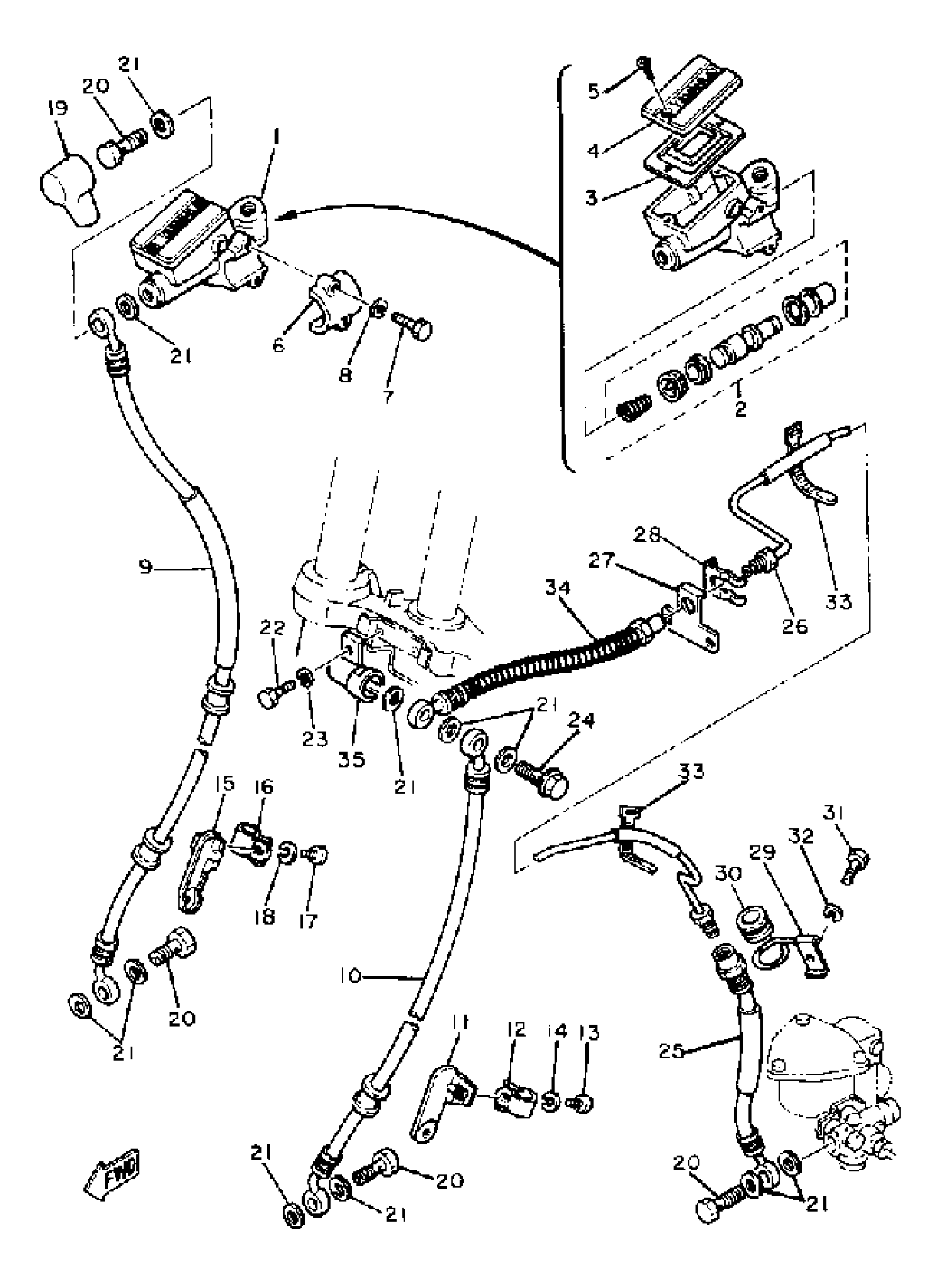

Yamaha XS1100LH (XS1100L) 1981 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSEMBLY

4H7-25850-02-00

Unavailable

2

CYLINDER KIT, MASTER

4H7-W0041-00-00

$88.99

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

4H7-25852-00-00

$39.99

5

SCREW, FLAT

98707-04010-00

$8.49

6

BRACKET, MASTER

1J3-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92907-06100-00

$4.25

9

HOSE, BRAKE 1

4W1-25872-10-00

Unavailable

10

HOSE, BRAKE 1

(4W1-25872-50-00)

Unavailable

11

HOLDER, BRKE HOSE 1

2H7-25875-00-00

Unavailable

12

CLAMP 1

90461-08031-00

Unavailable

13

SCREW, PAN

98517-06012-00

$3.78

14

WASHER, SPRING

92907-06100-00

$4.25

15

HOLDER, BRKE HOSE 2

2H7-25876-00-00

Unavailable

16

CLAMP 1

90461-08031-00

Unavailable

17

SCREW, PAN

98517-06012-00

$3.78

18

WASHER, SPRING

92907-06100-00

$4.25

19

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

BOLT, HEXAGON

97017-06016-00

Unavailable

23

WASHER, SPRING

92907-06100-00

$4.25

24

BOLT, UNION

90401-10038-00

Unavailable

25

HOSE, BRAKE 2

4W1-25873-50-00

Unavailable

26

PIPE, BRAKE 2

(4W1-25882-51-00)

Unavailable

27

HOLDER, BRKE HOSE 2

(4W1-25876-00-00)

Unavailable

28

CLIP

90468-06023-00

Unavailable

29

HOLDER, BRAKE HOSE

(4W1-25886-01-00)

Unavailable

30

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

31

BOLT(3JP)

97017-06010-00

Unavailable

32

WASHER, SPRING

92907-06100-00

$4.25

33

BAND, SWITCH CORD

437-83936-11-00

Unavailable

34

HOSE, BRAKE 2

4W1-25873-00-00

Unavailable

35

JOINT

(4W1-25885-00-00)

Unavailable
