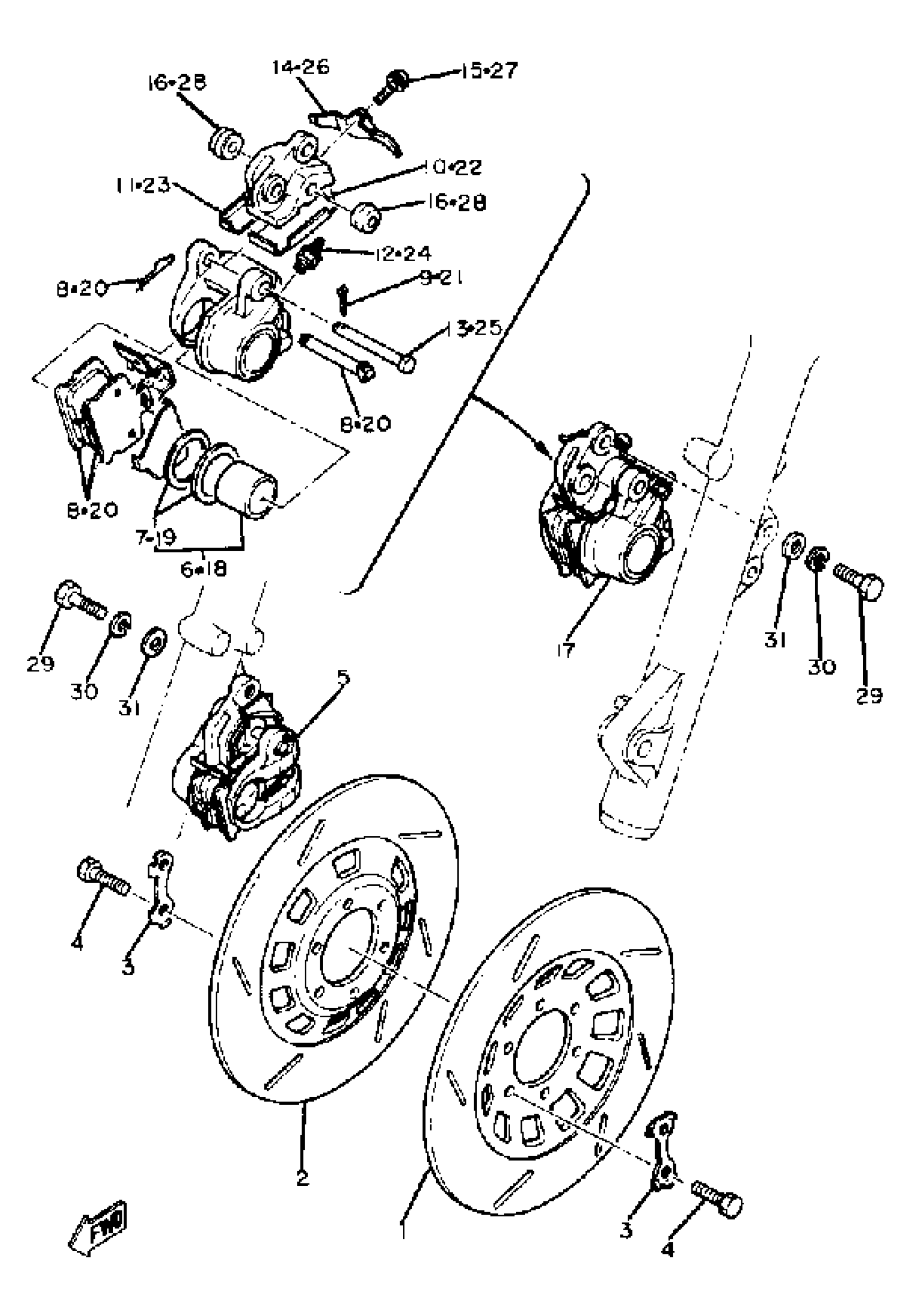

Yamaha XS1100LH (XS1100L) 1981 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

(4H3-25831-10-00)

Unavailable

2

DISC, BRAKE

4H3-25831-00-00

Unavailable

3

WASHER, LOCK

1J3-25834-01-00

$6.99

4

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

5

CALIPER ASSEMBLY

(4W1-25810-00-00)

Unavailable

6

PISTON SEAL KIT

4W1-W0057-00-00

Unavailable

7

SEAL KIT

4L0-W0047-01-00

$44.99

8

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

. RETAINER

4W1-25913-00-00

Unavailable

11

. SHIM, CALIPER

4W1-25828-00-00

Unavailable

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

. PIN, SLIDE

4W1-25914-00-00

Unavailable

14

COVER, DUST

(4W1-25836-00-00)

Unavailable

15

BOLT, CALIPER

(4L3-25818-00-00)

Unavailable

16

. BOOT, CALIPER

4L0-25917-00-00

Unavailable

17

CALIPER ASSEMBLY LH

4W1-25810-10-00

Unavailable

18

PISTON SEAL KIT

4W1-W0057-00-00

Unavailable

19

SEAL KIT

4L0-W0047-01-00

$44.99

20

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

21

PIN, COTTER (648)

91490-20015-00

$2.20

22

RETAINER

(4W1-25913-10-00)

Unavailable

23

. SHIM, CALIPER

4W1-25828-00-00

Unavailable

24

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

25

. PIN, SLIDE

4W1-25914-00-00

Unavailable

26

COVER, DUST

(4W1-25836-10-00)

Unavailable

27

BOLT, CALIPER

(4L3-25818-00-00)

Unavailable

28

. BOOT, CALIPER

4L0-25917-00-00

Unavailable

29

BOLT (1J3)

90101-10308-00

Unavailable

30

WASHER(6TA)

92907-10100-00

Unavailable

31

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable
