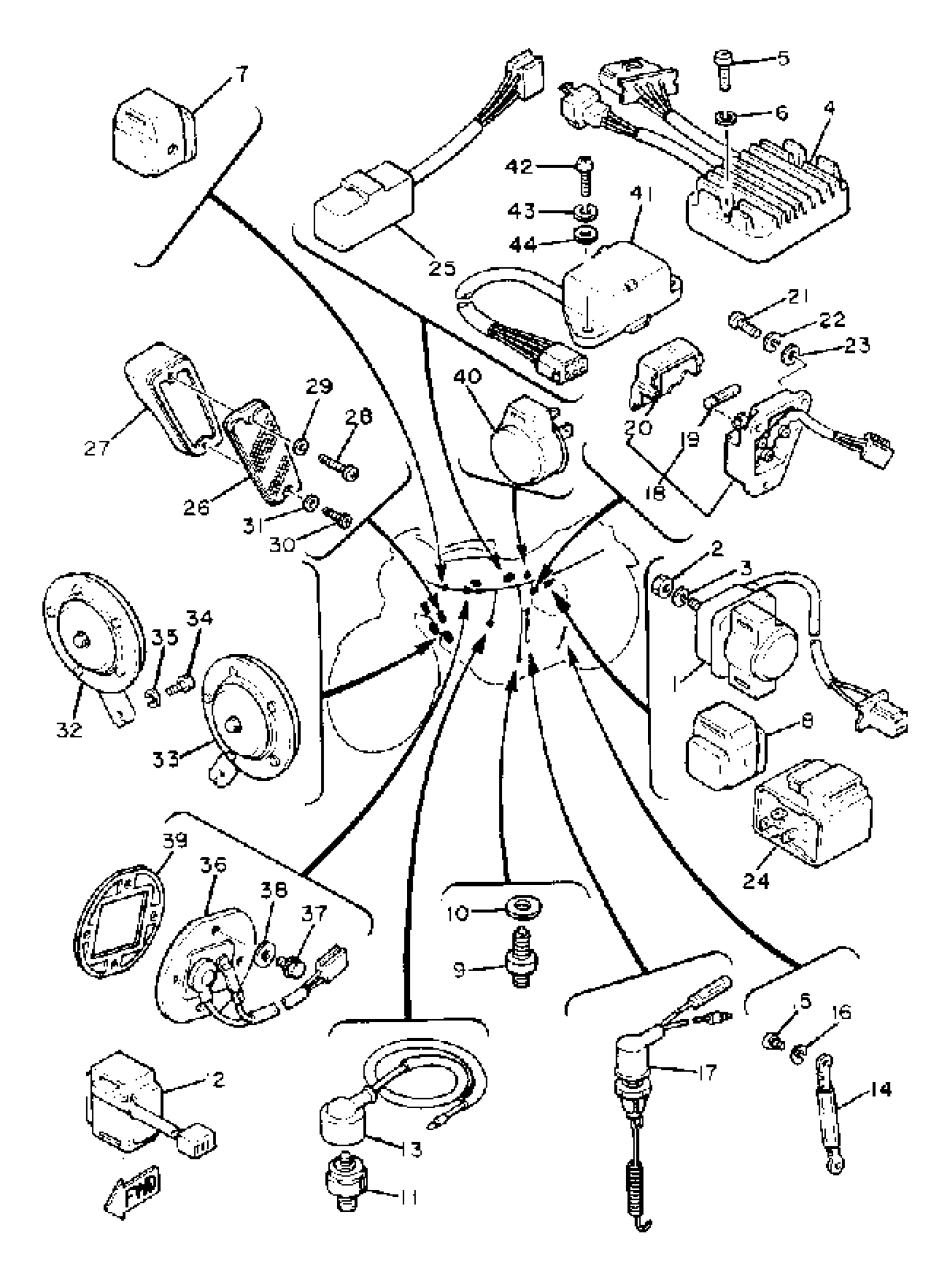

Yamaha XS1100LH (XS1100L) 1981 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

1

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

UNAVAILABLE IN PRICE BOOK (IT4-81960-92)

1T4-81960-A2-00

Unavailable

5

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

6

WASHER, SPRING

92995-06100-00

Unavailable

7

RELAY ASSY (3H5-00)

3H5-81950-00-00

Unavailable

8

RELAY ASSY

12R-81950-02-00

$70.99

9

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

10

GASKET (5R6)

90430-10171-00

$3.18

11

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

12

EMERGENCY STOP SWITCH ASSY

2H7-82576-00-00

Unavailable

13

WIRE, LEAD

2H7-82507-00-00

Unavailable

14

WIRE, EARTH LEAD

2H7-82519-00-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

STOP SWITCH

1J7-82530-02-00

Unavailable

18

TERMINAL ASSEMBLY

2H7-81920-00-00

Unavailable

19

FUSE

1A0-82151-00-00

Unavailable

20

COVER, TERMINAL

(2H7-81916-00-00)

Unavailable

21

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

25

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

26

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

Unavailable

27

BASE, REFLECTOR

(3J6-85127-00-00)

Unavailable

28

SCREW, PAN HEAD(MK5)

98507-04035-00

Unavailable

29

WASHER, PLAIN (646)

92990-04600-00

Unavailable

30

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

31

WASHER, PLAIN (646)

92990-04600-00

Unavailable

32

HORN

(4H3-83371-20-00)

Unavailable

33

HORN

(4H3-83371-30-00)

Unavailable

34

BOLT, HEXAGON

97027-08018-00

Unavailable

35

WASHER(JN5)

92907-08100-00

Unavailable

36

SENDER UNIT ASSEMBLY, FUEL METER

3H3-85752-00-00

Unavailable

37

BOLT, FLANGE

95817-06014-00

Unavailable

38

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

39

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

40

HAZARD FLASHER RELAY ASSEMBLY

3H5-83360-00-00

Unavailable

41

RESERVE LIGHTING UNIT ASSEMBLY

2F9-84308-00-00

Unavailable

42

SCREW PAN HEAD

98580-06020-00

Unavailable

43

WASHER, SPRING

92995-06100-00

Unavailable

44

WASHER, PLAIN (646)

92990-06600-00

Unavailable
