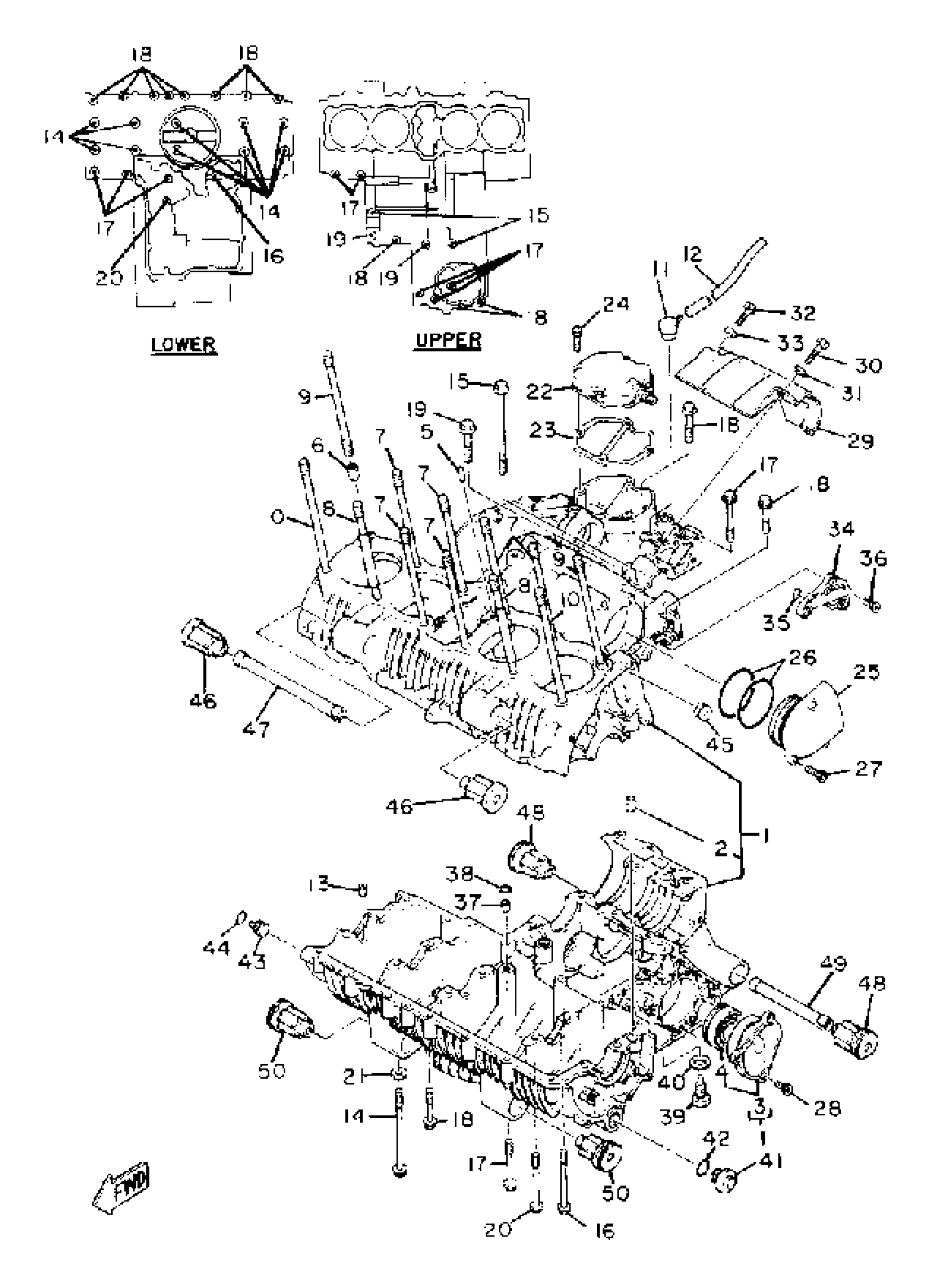

Yamaha XS1100LH (XS1100L) 1981 CRANKCASE Diagram

#

Description

Price

1

CRANKCASE ASSEMBLY

(4H3-15100-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

. BRNG HSNG CMPLT 2

2H7-W1516-00-10

Unavailable

3

. BRNG HSNG CMPLT 2

2H7-W1516-00-20

Unavailable

4

BRG,R-B 4205 52MM 185G KY

93304-20501-00

$96.99

5

PIN, DOWEL

93605-14143-00

Unavailable

6

PIN, DOWEL

99530-14016-00

$3.80

7

BOLT, STUD

90116-10273-00

Unavailable

8

BOLT, CYLINDER HOLDING 3

2F3-11363-00-00

Unavailable

9

BOLT, STUD

90116-10275-00

Unavailable

10

BOLT, STUD

90116-10274-00

Unavailable

11

BREATHER

(4H1-17591-00-00)

Unavailable

12

HOSE (L1050)

90445-072G8-00

$29.99

13

NOZZLE 1

(2H7-15138-00-00)

Unavailable

14

BOLT

(4H3-15187-00-00)

Unavailable

15

BOLT, FLANGE

(95816-08125-00)

Unavailable

16

BOLT, FLANGE

(95816-06085-00)

Unavailable

17

BOLT, FLANGE

95817-06065-00

Unavailable

18

BOLT, FLANGE

95817-06045-00

Unavailable

19

BOLT, FLANGE(JN5)

95817-08045-00

Unavailable

20

BOLT, FLANGE

(95816-08075-00)

Unavailable

21

WASHER, PLATE (33N)

90201-094G1-00

Unavailable

22

COVER, BREATHER

(2H9-11168-00-00)

Unavailable

23

GASKET, BTHR COVER

2H7-11169-10-00

Unavailable

24

BOLT,SOCKET

91317-06025-00

Unavailable

25

HOUSING, BEARING 1

(4H3-15163-00-00)

Unavailable

26

O-RING (5X2)

93210-60538-00

Unavailable

27

BOLT,SOCKET

91317-06025-00

Unavailable

28

SCREW, FLATHEAD (2H7)

90149-06126-00

Unavailable

29

COVER, STRTG MOTOR

(2H9-15436-00-00)

Unavailable

30

BOLT, HEXAGON

97017-06030-00

Unavailable

31

WASHER(6TA)

92907-06600-00

Unavailable

32

BOLT, HEXAGON

97017-06020-00

Unavailable

33

WASHER(6TA)

92907-06600-00

Unavailable

34

NOZZLE 2

2H7-15148-00-00

Unavailable

35

O-RING (1J7)

93210-09350-00

Unavailable

36

SCREW, FLATHEAD (2H7)

90149-06126-00

Unavailable

37

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

38

O-RING (1J7)

93210-09350-00

Unavailable

39

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

40

GASKET

214-11198-01-00

Unavailable

41

PLUG

90340-18073-00

Unavailable

42

O-RING (1J7)

93210-18319-00

Unavailable

43

PLUG, SPEC''L SHAPE

90338-13084-00

Unavailable

44

O-RING (2H7)

93210-13361-00

Unavailable

45

GROMMET (2H7)

90480-11224-00

Unavailable

46

DAMPER, ENG MOUNT 1

2H7-15316-01-00

Unavailable

47

SPACER, ENG MOUNT

(2H7-15317-00-00)

Unavailable

48

DAMPER, ENGINE MOUNT 2 (2H7-15326-01-00)

36Y-15326-00-00

Unavailable

49

SPACER, ENG MOUNT

2H7-15327-00-00

Unavailable

50

DAMPER, ENG MOUNT 3

(4H3-15336-00-00)

Unavailable
