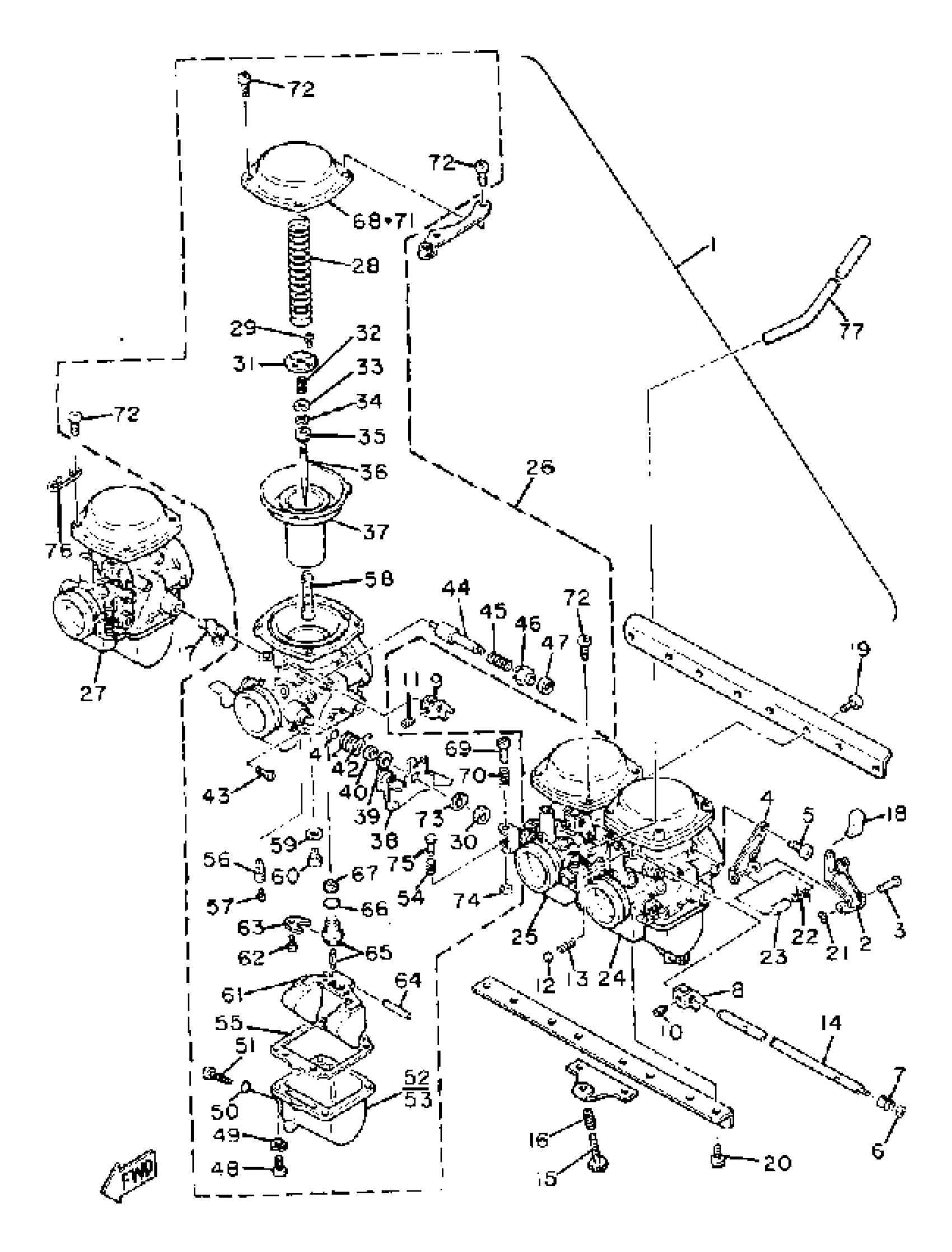

Yamaha XS1100LH (XS1100L) 1981 CARBURETOR Diagram

#

Description
Price

1

GEAR, IDLER 1

2H7-15512-00-00

Unavailable

2

. LEVER, STARTER 1

4H3-14975-00-00

Unavailable

3

PIN, FLOAT

(4H3-14386-00-00)

Unavailable

4

BRACKET

(4H3-14995-00-00)

Unavailable

5

SCREW, PAN HEAD(JG1)

98507-04008-00

$2.14

6

. CLIP

737-14137-00-00

Unavailable

7

BUSH

(4H3-14998-00-00)

Unavailable

8

LEVER, STARTER

(4H3-14905-00-00)

Unavailable

9

. LEVER, STARTER

3F7-14905-00-00

Unavailable

10

.. SCREW

4H3-14991-00-00

Unavailable

11

. SCREW

11V-14991-00-00

Unavailable

12

BALL

93501-08001-00

$1.07

13

SPRING

583-14589-00-00

$5.49

14

SHAFT, STARTER LEVER

(4H3-14978-00-00)

Unavailable

15

. THROTTLE SCREW SET

11H-14103-00-00

Unavailable

16

. , SPRING, THROTTLE STOP

3F7-14934-00-00

Unavailable

17

. PIPE, STARTER CON

3H3-14988-00-00

Unavailable

18

. CAP

2F3-14968-00-00

Unavailable

19

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

20

SCREW, PAN HEAD

(97806-06014-00)

Unavailable

21

. CLIP

2F3-14919-00-00

Unavailable

22

. SPRING

2F3-14938-00-00

Unavailable

23

PIPE

(2F3-14996-00-00)

Unavailable

24

CARBURETOR ASSEMBLY 1

(4H3-14901-00-00)

Unavailable

25

CARBURETOR ASSEMBLY 2

(4H3-14902-00-00)

Unavailable

26

CARBURETOR ASSEMBLY 3

(4H3-14903-00-00)

Unavailable

27

CARBURETOR ASSEMBLY 4

(4H3-14904-00-00)

Unavailable

28

.. SPRING, DIAPHRAGM

3H5-14933-00-00

Unavailable

29

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

30

. NUT

95380-08700-00

Unavailable

31

PLATE, DIAPHRAGM

3F7-14936-00-00

Unavailable

32

SPRING, NEEDLE

3F7-14589-00-00

Unavailable

33

WASHER, PLATE (7Y2)

90201-037F2-00

Unavailable

34

CLIP

256-14919-00-00

Unavailable

35

RING, NEEDLE

3F7-14918-00-00

Unavailable

36

.. NEEDLE

452-14116-16-00

Unavailable

37

DIAPHRAGM ASSY

3F7-14940-00-00

Unavailable

38

LEVER, THROTTLE

(3H5-14913-00-00)

Unavailable

39

VALVE, THROTTLE

(306-14970-00-00)

Unavailable

40

RING

(2H7-14918-00-00)

Unavailable

41

.. SEAL

256-14997-00-00

Unavailable

42

SPRING, THROTTLE LEVER

(2H7-14931-00-00)

Unavailable

43

SCREW, CYLINDER HEAD

(98302-05006-00)

Unavailable

44

.. PLUNGER, STARTER

3F7-14171-00-00

Unavailable

45

.. SPRING, PLUNGER

3F7-14135-00-00

Unavailable

46

.. CAP, PLUNGER

3F7-14174-00-00

Unavailable

47

.. COVER, PLUNGER CAP

3F7-14173-00-00

Unavailable

48

SCREW, PAN HEAD

90157-05M19-00

Unavailable

49

WASHER(3SX)

92907-05100-00

Unavailable

50

O-RING

214-14147-00-00

Unavailable

51

SCREW, PLUG

3F7-14991-00-00

Unavailable

52

BODY, FLOAT CHAMBER

(4H3-14980-05-00)

Unavailable

53

HOLDER

(4H3-14982-05-00)

Unavailable

54

SPRING, THROTTLE STOP

(584-14934-00-00)

Unavailable

55

GASKET, FLOAT CHAMBER

3F7-14984-00-00

Unavailable

56

.. JET, PILOT #425

256-14142-42-A0

Unavailable

57

SCREW, PLUG

3F7-14991-00-00

Unavailable

58

.. NOZZLE, MAIN

3H5-14941-02-00

Unavailable

59

WASHER,MAIN JET

137-14153-00-00

Unavailable

60

JET, MAIN (#110)

620-14231-22-A0

Unavailable

61

FLOAT

3H5-14985-00-00

Unavailable

62

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

63

. PLATE

2H0-14146-00-00

Unavailable

64

PIN, FLOAT

537-14186-00-00

Unavailable

65

NEEDLE VALVE SET

25G-14107-20-00

Unavailable

66

O-RING

8F2-14147-00-00

Unavailable

67

NET, FILTER

1J7-14994-00-00

Unavailable

68

COVER, DIAPHRAGM

(4H3-14958-00-00)

Unavailable

69

. STOP SCREW SET

12R-1490K-00-00

Unavailable

70

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

71

COVER, DIAPHRAGM

(4H3-14958-00-00)

Unavailable

72

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

73

.. WASHER

256-14953-00-00

Unavailable

74

CLIP

(2H7-14937-00-00)

Unavailable

75

ROD

(2H7-14992-00-00)

Unavailable

76

CLIP

(4H3-14919-00-00)

Unavailable

77

HOSE (L400)

90445-082A9-00

Unavailable
