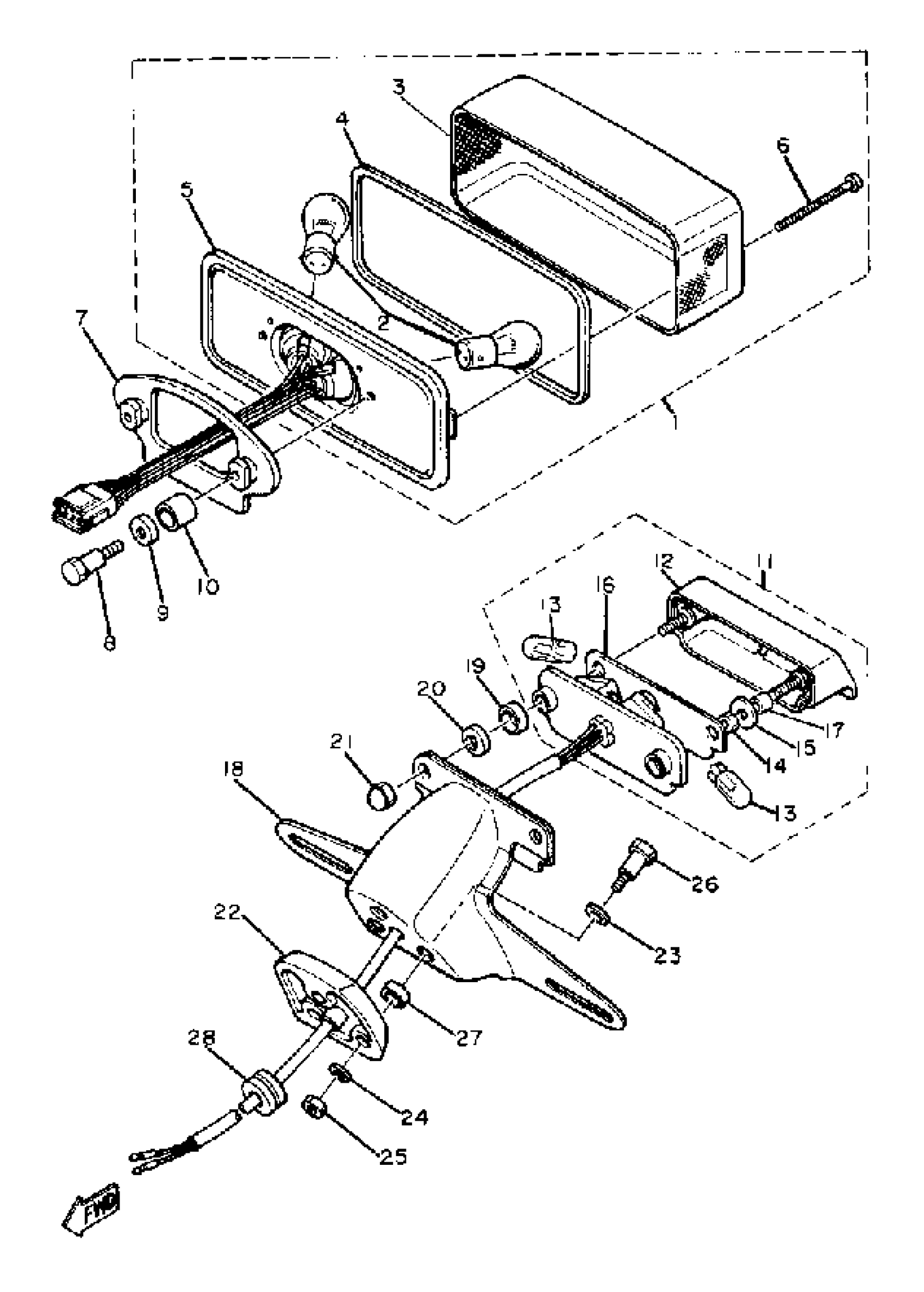

Yamaha XS1100LG (XS1100L) 1980 TAILLIGHT Diagram

#

Description
Price

1

. TAILLIGHT UNIT ASSY

3G1-84710-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. LENS, TAILLIGHT

1A8-84721-61-00

Unavailable

4

. GASKET, TAIL LENS

1A0-84723-60-00

Unavailable

5

BASE, TAILLIGHT

(4H1-84711-60-00)

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

SEAT, BASE

3G1-84712-00-00

Unavailable

8

BOLT

90109-06548-00

Unavailable

9

WASHER, SPECIAL

2H7-84754-00-00

$10.99

10

SEAT, BASE

3G1-84712-60-00

Unavailable

11

LICENSE LIGHT UNIT ASSY (4H3-84745-60-00)

2AX-84745-00-00

Unavailable

12

BODY, LICENCE LIGHT

(3J2-84749-01-00)

Unavailable

13

. BULB, METER 12V 38W

3F9-84744-00-XX

Unavailable

14

NUT, HEXAGON SMALL

95317-05700-00

$8.49

15

WASHER, SPECIAL

3J2-84754-00-00

$0.99

16

WASHER

(3J2-84772-00-00)

Unavailable

17

COLLAR, LCNSE BRKT

(3J2-84757-00-00)

Unavailable

18

BRACKET, license

4H3-84751-00-00

Unavailable

19

DAMPER

3G1-84553-00-00

Unavailable

20

WASHER, SPECIAL

3F9-84754-00-00

Unavailable

21

NUT (CROWN)

95303-05800-00

Unavailable

22

DAMPER

(3J6-84753-00-00)

Unavailable

23

WASHER, PLAIN

92990-08200-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

NUT, HEXAGON

95380-06600-00

Unavailable

26

BOLT 337847520000

90109-06005-00

Unavailable

27

DAMPER

3G1-84753-60-00

Unavailable

28

GROMMET (438)

90480-15061-00

Unavailable
